5120-00-628-5790
Face Spanner Wrench Socket
5120006285790 006285790 117GT1022
An item designed to be driven by an external or internal drive. It has a face type spanner end. View more Face Spanner Wrench Socket
January 2023
4
Marketplace 5120-00-628-5790
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-628-5790 1+ Documents (More...)
5120-00-628-5790 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-628-5790
Face Spanner Wrench Socket 5120006285790 117GT1022 An item designed to be driven by an external or internal
Restrictions 5120-00-628-5790
5120-00-628-5790 is a Face Spanner Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-628-5790
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-628-5790
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- KE
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5120-00-628-5790
- Part Number
- Manufacturer
- Status
- 117GT1022
- Manufacturer
- 26512 - Northrop Grumman Systems Corporation (Active)
- Primary Buy
- Primary Buy

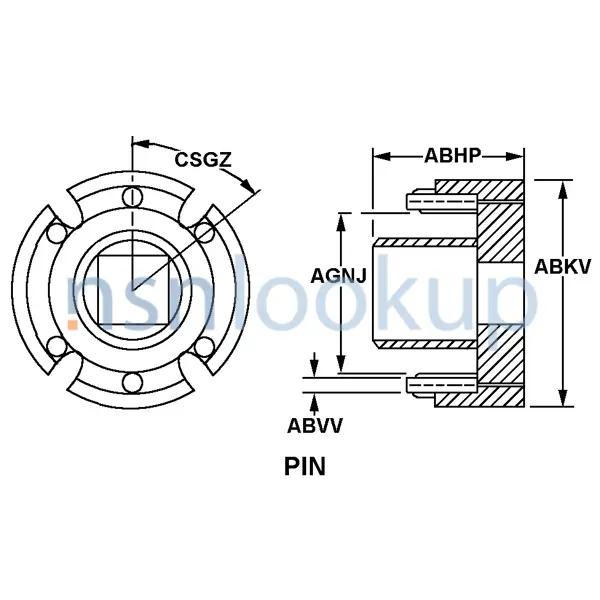

Datasheet 5120-00-628-5790
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End Internal
- Drive Surface Size [ATNC]
- 0.504 Inches Minimum Second End And 0.513 Inches Maximum Second End
- Angle Between Pins [CSGZ]
- 180.0 Degrees Nominal
- Opening Diameter [AGNJ]
- 0.665 Inches Minimum And 1.500 Inches Maximum
- Outside Diameter [ABKV]
- 2.500 Inches Nominal
- Material [MATT]
- Steel Overall
- Overall Length [ABHP]
- 2.000 Inches Nominal
- Pin Diameter [ABVV]
- 0.182 Inches Minimum And 0.187 Inches Maximum
- Style Designator [STYL]
- Pin
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Type 1,Class 1 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall
NATO Stock Numbers Related to 5120-00-628-5790
Freight Information 5120-00-628-5790
5120-00-628-5790 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-628-5790 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-628-5790 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-628-5790 is not classified as a special type of cargo when transported by water. 5120-00-628-5790 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
