5120-00-614-6467
Spanner Wrench
5120006146467 006146467 SMB122070
A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG. View more Spanner Wrench
November 2023
6
Marketplace 5120-00-614-6467
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-614-6467 1+ Documents (More...)
/fsg-51/fsc-5120/us
5120-00-614-6467 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-614-6467
/fsg-51/fsc-5120/us 5120-00-614-6467 5120-00-614-6467 RQST NE Restrictions 5120-00-614-6467 DEMIL: A
Restrictions 5120-00-614-6467
5120-00-614-6467 is a Spanner Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-614-6467
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-614-6467
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
Approved Sources 5120-00-614-6467
- Part Number
- Manufacturer
- Status
- SMB122070
- Manufacturer
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
Datasheet 5120-00-614-6467
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Material [MATT]
- Steel Overall

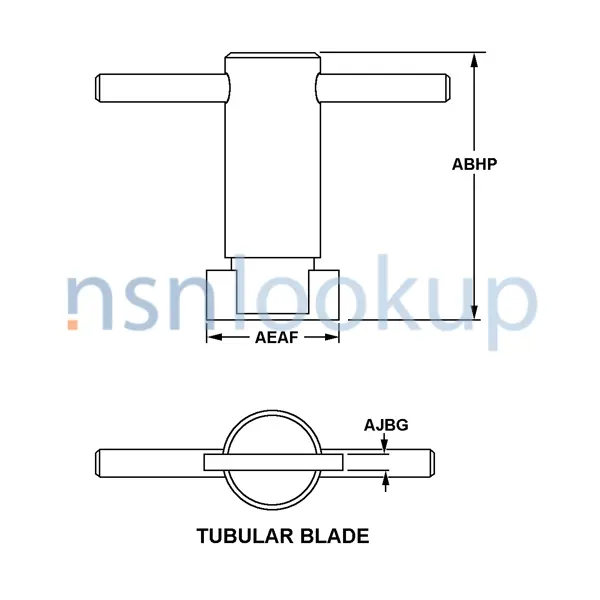

- Style Designator [STYL]
- Tubular Blade
- Overall Length [ABHP]
- 2.240 Inches Nominal
- Outside Diameter [ABKV]
- 1.000 Inches Nominal
- Blade Width [AEAF]
- 0.891 Inches Nominal
- Blade Thickness [AJBG]
- 0.062 Inches Nominal
- Special Features [FEAT]
- Recessed Blade; 2.76 In. Lg T-Handle
NATO Stock Numbers Related to 5120-00-614-6467
Freight Information 5120-00-614-6467
5120-00-614-6467 has freight characteristics.. 5120-00-614-6467 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
