5120-00-595-9193
Pipe Wrench
5120005959193 005959193 MIL-W-10698 MIL-W-10698 TY2SZA A-A-59220 TY2SZ7/8
A wrench having serrated jaws, chain, girth, or strap at one end. It is designed for installing or removing pipe or pipe fittings. Excludes WRENCH, PIPE, INTERNAL GRIPPING. View more Pipe Wrench
January 2023
9
Marketplace 5120-00-595-9193
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-595-9193 5+ Documents (More...)
RQST NE Updated Every Day 5120-00-595-9193 RQST Updated Every Day 5120-00-595-9193 RQST NE Related Documents
5120-00-595-9193 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-595-9193
5120-00-293-2123 RQST Updated Every Day 5120-00 https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-595-9193
Pipe Wrench 5120005959193 005959193 Upgrade for $1 a day Upgrade your Account Upgrade 5120-00-595
Pipe Wrench 5120005959193 005959193 for $1 a day Upgrade your Account Upgrade 5120-00-595-9193Pipe
Wrench5120005959193 005959193 MIL-W-10698 MIL-W-10698 TY2SZA A-A-59220 TY2SZ7/8 A wrench having serrated
Pipe Wrench 5120005959193 005959193 for $1 a day Upgrade your Account Upgrade 5120-00-595-9193Pipe
Wrench5120005959193 005959193 MIL-W-10698 MIL-W-10698 TY2SZA A-A-59220 TY2SZ7/8 A wrench having serrated
Pipe Wrench 5120005959193 005959193 for $1 a day Upgrade your Account Upgrade 5120-00-595-9193Pipe
Wrench5120005959193 005959193 MIL-W-10698 MIL-W-10698 TY2SZA A-A-59220 TY2SZ7/8 A wrench having serrated
Restrictions 5120-00-595-9193
5120-00-595-9193 is a Pipe Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-595-9193
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-595-9193
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5120-00-595-9193
- Part Number
- Manufacturer
- Status
- A-A-59220 TY2SZ7/8
- Manufacturer
- 80244 - General Services Administration (Active)
- Primary Buy
- Primary Buy
- MIL-W-10698
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- MIL-W-10698 TY2SZA
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
Datasheet 5120-00-595-9193
- Characteristic
- Specifications
- FIIG
- Specifications
- A527Y0
- End Item Identification [AGAV]
- Lt-Duty Use On M-41 And Yukon Stoves Of Mil-H-13514 And Mil-S-12340
- Material Document And Classification [MDCL]
- Qq-S-700 Fed Spec Single Material Response Overall
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 2 Type And A Size
- Special Features [FEAT]
- 0.281 Inch Wide Screwdriver Tip On Second End

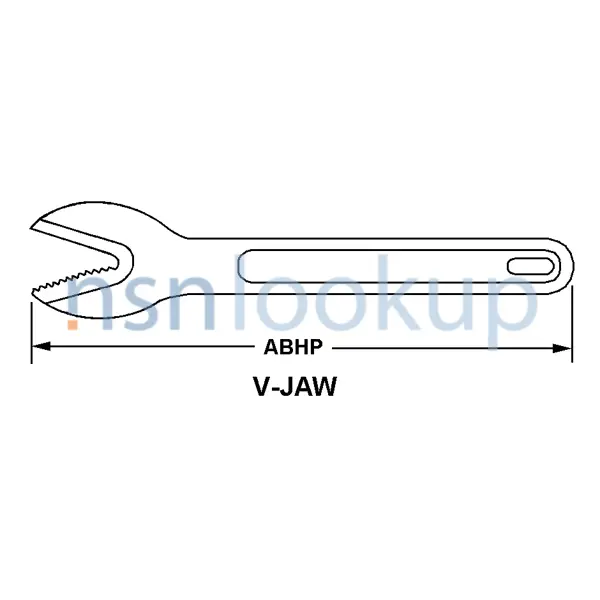

- Overall Length [ABHP]
- 4.785 Inches Minimum And 5.125 Inches Maximum
- Wrenching Surface Shape [CRWY]
- Rectangular First End Internal
- Wrenching Surface Size [AJBR]
- 0.859 Inches Minimum First End And 0.891 Inches Maximum First End
- Style Designator [STYL]
- V-Jaw
- Surface Treatment Document And Classification [STDC]
- Qq-Z-325,Type 1,Class 2 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Zinc Overall
NATO Stock Numbers Related to 5120-00-595-9193
Freight Information 5120-00-595-9193
5120-00-595-9193 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-595-9193 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-595-9193 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-595-9193 is not classified as a special type of cargo when transported by water. 5120-00-595-9193 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
