5120-00-595-8129
Socket Wrench Adapter-Extension
5120005958129 005958129 PWA5705
A rigid item four inches (101.6 mm) or over in length. Used to connect sockets to handles, power tools or to other attachments which are not designed for direct mating to each other. See also RATCHET ATTACHMENT, SOCKET WRENCH; UNIVERSAL JOINT, SOCKET WRENCH ATTACHMENT; EXTENSION, SOCKET WRENCH; ADAPTER, SOCKET, CROWFOOT SOCKET WRENCH HEAD; and ADAPTER, SOCKET WRENCH. Excludes HOLDER, SCREWDRIVER BIT, FEMALE SQUARE DRIVE. View more Socket Wrench Adapter-Extension
January 2023
10
Marketplace 5120-00-595-8129
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-595-8129 1+ Documents (More...)
5120-00-595-8129 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-595-8129
Socket Wrench Adapter-Extension 005958129 PWA5705 ADAPTER-EXTENSION,SOCKET WRENCH 2 EA NS Request Quotation
Restrictions 5120-00-595-8129
5120-00-595-8129 is a Socket Wrench Adapter-Extension that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-595-8129
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-595-8129
- Malaysia (YW01)
- Effective Date:
- 1 Jul 1994
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 2008
Approved Sources 5120-00-595-8129
- Part Number
- Manufacturer
- Status
- PWA5705
- Manufacturer
- 00198 - Pratt & Whitney Canada Corp (Active)
- Primary Buy
- Primary Buy
Datasheet 5120-00-595-8129
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square First End External
- Drive End Shape [CTCT]
- Square Second End Internal
- Drive Surface Size [ATNC]
- 0.375 Inches Nominal First End
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Second End
- Hardness Rating [CQFM]
- 40.0 Rockwell C Minimum And 45.0 Rockwell C Maximum
- Material Document And Classification [MDCL]
- Sae-4140 Assn Std Single Material Response Overall
- Material [MATT]
- Steel Comp 4140 Overall

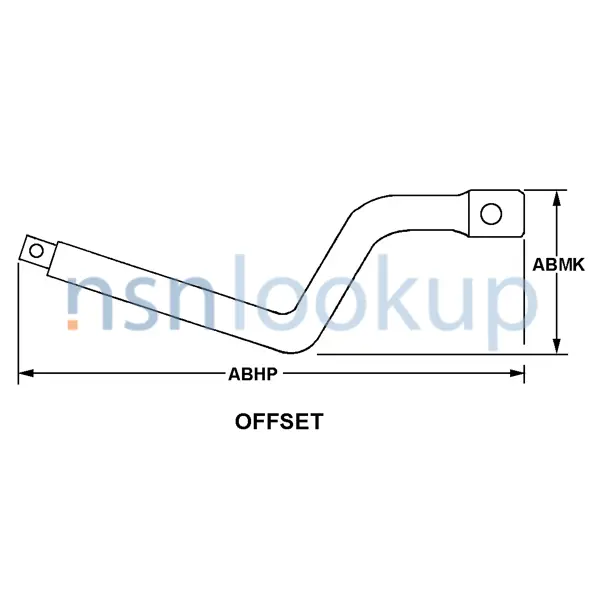

- Overall Length [ABHP]
- 23.000 Inches Nominal
- Overall Width [ABMK]
- 5.437 Inches Nominal
- Style Designator [STYL]
- Offset
- Surface Treatment [SFTT]
- Oxide Overall
NATO Stock Numbers Related to 5120-00-595-8129
Freight Information 5120-00-595-8129
5120-00-595-8129 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-595-8129 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-595-8129 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-595-8129 is not classified as a special type of cargo when transported by water. 5120-00-595-8129 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
