5120-00-585-6239
Shock Type Wheel Stud Nut Wrench
5120005856239 005856239 TR42
A manually operated item designed to remove wheel stud nuts. In operation the inner nut is turned by a socket attached to a shaft on which is a loose swinging weighted handle. The weighted handle may be swung quickly to provide an impact force against the socket to loosen the seized or jammed nuts. The outer nut is held stationary by a separate hexagonal holding wrench. View more Shock Type Wheel Stud Nut Wrench
August 2023
12
Marketplace 5120-00-585-6239
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-585-6239 5+ Documents (More...)
5120-00-585-6239 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-585-6239
Shock Type Wheel Stud Nut Wrench 005856239 TR42 A manually operated item designed to remove wheel stud
enable JavaScript in your web browser . 7730-25-109-6687Radio Receiver7730251096687 251096687 165 TR42
Shock Type Wheel Stud Nut Wrench 005856239 Upgrade your Account Upgrade 5120-00-585-6239Shock Type
Shock Type Wheel Stud Nut Wrench 005856239 your Account Upgrade 5120-00-585-6239Shock Type https
Shock Type Wheel Stud Nut Wrench 005856239 https//www.nsnlookup.com /fsg-51/fsc-5120/tr 5120-27
846-6254 Shock Type Wheel Stud Nut Wrench 998466254 Shock Type Wheel Stud Nut Wrench 270352170 5120-00-585 -6239
Shock Type Wheel Stud Nut Wrench 005856239 027-2049 5120-27-035-2170 047-8283 5315-99-846-6254
Wrench 014865332 Wrench 001779361 027-2049 5120-27-035-2170 5120-01-527-6411 Wheel Stud Nut Wrench 005856239
035-2170 047- Shock Type Wheel Stud Nut Wrench 270352170 5120-33-108-5001 5120-27-022-7096 Wrench 005856239
Restrictions 5120-00-585-6239
5120-00-585-6239 is a Shock Type Wheel Stud Nut Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-585-6239
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-585-6239
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Turkey (ZW01)
- Effective Date:
- 1 Sep 2009
Approved Sources 5120-00-585-6239
- Part Number
- Manufacturer
- Status
- TR42
- Manufacturer
- 75204 - Summit Tool Company (Active)
- Primary Buy
- Primary Buy
Datasheet 5120-00-585-6239
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Any Acceptable Overall

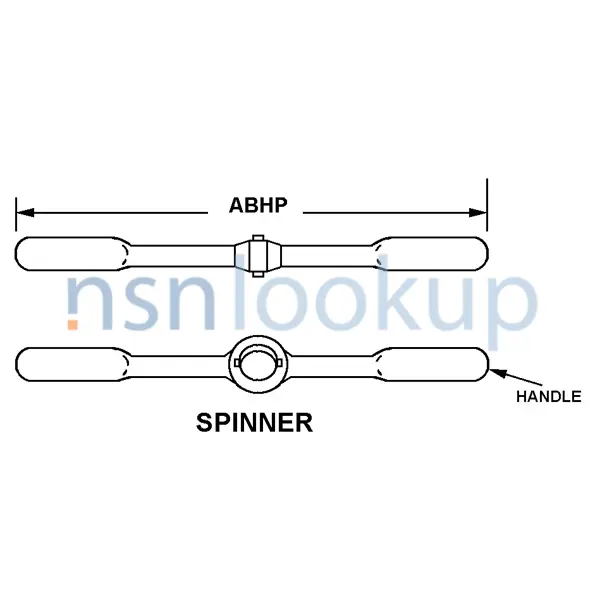

- Style Designator [STYL]
- Spinner
- Overall Length [ABHP]
- 25.500 Inches Nominal
- Wrenching Surface Size [AJBR]
- 0.750 Inches Nominal First End
- Wrenching Surface Size [AJBR]
- 0.812 Inches Nominal Second End
- Wrenching Surface Shape [CRWY]
- Square First End External
- Wrenching Surface Shape [CRWY]
- Square Second End Internal
- Furnished Items [AFJH]
- 1.500 In. Hex Socket,1.500 In. Budd Nut Wrench
NATO Stock Numbers Related to 5120-00-585-6239
Freight Information 5120-00-585-6239
5120-00-585-6239 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-585-6239 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-585-6239 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-585-6239 is not classified as a special type of cargo when transported by water. 5120-00-585-6239 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
