5120-00-533-5749

Socket Wrench

5120005335749 005335749 SC-B-96436

A wrench consisting of one or more sockets, integral with shank(s) or body. It may not be furnished with a handle when the handle is removable or when it is the "double end socket" and "single socket bar" types, each designed for use with the other or similar items. Excludes SOCKET, SOCKET WRENCH. View more Socket Wrench

5120-00-533-5749 WRENCH,SOCKET 5120005335749 005335749

Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
January 2023
NATO Update Count
4
NATO Data Quality

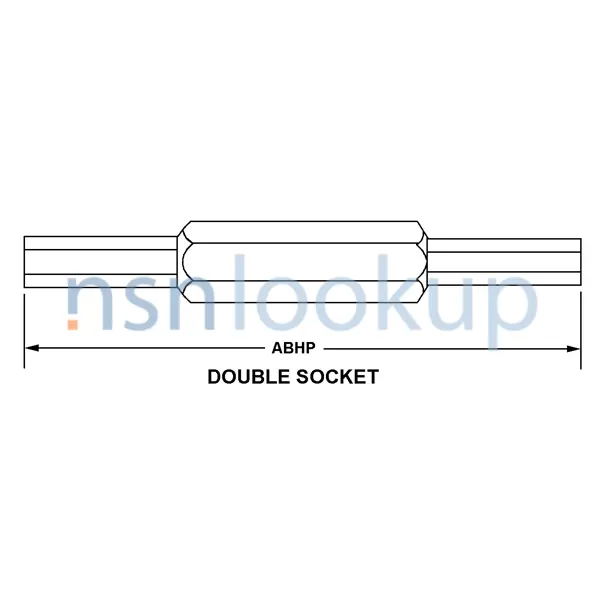

STYL Style 164 for 5120-00-533-5749 1/1
NSN 5120-00-533-5749 (Identification) 1/1

5120-00-533-5749 Stock and Availability Marketplace 5120-00-533-5749

Need Help?
Request a Quotation from participating marketplace vendors
FedMallFedMall.mil Updated Every 15 Minutes
5120-00-533-5749 BUY NE FedMallFedMall.mil
eBay Updated Every Day
5120-00-533-5749 RQST NE eBay
eBay Updated Every Day
5120-00-533-5749 RQST eBay
Amazon Updated Every Day
5120-00-533-5749 RQST NE Amazon

5120-00-533-5749 Related Documents Related Documents 5120-00-533-5749 2+ Documents (More...)

SC-B-96436 A wrench consisting of one or more sockets, integral with shank(s) or body.
FedMall Updated Every Day 5120-00-533-5749 RQST NE Updated Every Day 5120-00-533-5749 RQST Updated Every
Day 5120-00-533-5749 RQST NE Related Documents 5120-00-533-5749 3+ Documents ( More... ) https//www.nsnlookup.com
for $1 a day Upgrade your Account Upgrade 6130 https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-533-5749
Socket Wrench 5120005335749 005335749 for $1 a day Upgrade your Account Upgrade 5120-00-533-5749Socket
Wrench5120005335749 005335749 SC-B-96436 //www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-533-5749 Socket

5120-00-533-5749 Demil Restrictions 5120-00-533-5749

DEMIL: A | DEMILI: 1 | CRITICALITY: X | HMIC: N | PMIC: A | EDC: | ADPEC:

5120-00-533-5749 is a Socket Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

5120-00-533-5749 HTS and ScheduleB Import and Export 5120-00-533-5749

5120-00-533-5749 End Users End Users 5120-00-533-5749

US Army (A192)
Effective Date:
1 Apr 1991
Supplementary Receivers:
CL
NASA (G751)
Effective Date:
1 Apr 1991

5120-00-533-5749 Manufacturers Approved Sources 5120-00-533-5749

5120-00-533-5749 Technical Data Datasheet 5120-00-533-5749

Characteristic
Specifications
FIIG
A527Y0
Hardness Rating [CQFM]
35.0 Rockwell C Minimum And 40.0 Rockwell C Maximum
Material Document And Classification [MDCL]
Qq-S-636 Fed Spec Single Material Response Overall
Material [MATT]
Steel Comp 1045 Overall And Steel Comp 1046 Overall And Steel Comp 1048 Overall And Steel Comp 1049 Overall And Steel Comp 1050 Overall And Steel Comp 1051 Overall And Steel Comp 1052 Overall And Steel Comp 1053 Overall And Steel Comp 1055 Overall And Steel Comp 1060 Overall
Overall Length [ABHP]
5.000 Inches Nominal
Special Features [FEAT]
Knurled Handle
Wrenching Surface Shape [CRWY]
Hexagon Both Ends Internal
Wrenching Surface Size [AJBR]
0.125 Inches Nominal First End
Wrenching Surface Size [AJBR]
0.156 Inches Nominal Second End
Style Designator [STYL]
Double Socket

5120-00-533-5749 Management Data Management Data 5120-00-533-5749

Effective Date
Organization
Unit of Issue
Unit Price
Qty Unit Pack
Apr 2013
Department of the Army (DA)
EA
Subscribe
1

Army Army

Materiel Category and Inventory Manager:
E
General Supplies (DLA/GSA Items)
Appropriation and Budget Activity:
2
Stock Fund Secondary Items
Management Inventory Segment:
2
Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
Weapons System / End Item / Homogeneous Group:
00
DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements:
D
Durable item.An item of Army property coded with an ARC of D in the AMDF. Durable items do not require property book accountability after issue from the stock record account but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded D in the AMDF are considered durable items.

5120-00-533-5749 Related Items NATO Stock Numbers Related to 5120-00-533-5749

5120-00-533-5749 Freight Data Freight Information 5120-00-533-5749

5120-00-533-5749 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-533-5749 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-533-5749 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-533-5749 is not classified as a special type of cargo when transported by water. 5120-00-533-5749 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
