5120-00-510-1009
Spanner Wrench
5120005101009 005101009 GT7
A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG. View more Spanner Wrench
January 2023
12
Marketplace 5120-00-510-1009
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-510-1009 5+ Documents (More...)
5120005101009005101009,GT7 GT7 WRENCH,SPANNER 2 EA NS Request Quotation Updated Every Day 5120-00-510
Documents 5120-00-510-1009 Datasheet Management GT7 WRENCH,SPANNER 2 EA NS Request Quotation Updated
5970003608628003608628,GT7 5970003608628003608628,GT7 https//www.nsnlookup.com /fsg-81/fsc-8120/it 8120
Fibreglass Tape 9390661283361661283361,GT7 5120005101009005101009 https//www.nsnlookup.com /fsg-81/fsc
Material 5330661378766661378766,GT7 https ,GT7 how to enable JavaScript in your web browser . 9390-
Tape 9390661283361661283361,GT7 9390661283361661283361,GT7 ,GT7 /au 9390- 66-128 -3361 ,GT7 Material
5970003608628003608628 ,GT7 Spanner Wrench 5120005101009005101009,GT7 7255Trasmettitore Press6685151417255
151417255 5970003608628003608628,GT7 for $1 a day Upgrade https//www.nsnlookup.com /fsg-66/fsc-6685/
,GT7 Fibreglass Tape 9390661283361661283361,GT7 9390661283361661283361,GT7 ,GT7 /au 9390- 66-128 -3361
,GT7 Tape 9390661283361661283361,GT7 9390661283361661283361,GT7 ,GT7 /au 9390- 66-128 -3361 ,GT7 Material
Restrictions 5120-00-510-1009
5120-00-510-1009 is a Spanner Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-510-1009
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-510-1009
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Mar 2000
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Dec 2007
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5120-00-510-1009
- Part Number
- Manufacturer
- Status
- GT7
- Manufacturer
- 26512 - Northrop Grumman Systems Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 5120-00-510-1009
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Functional Description [FTLD]
- Used On Cabin Hood Spacer Nut G372
- Hardness Rating [CQFM]
- 27.0 Rockwell C Minimum And 32.0 Rockwell C Maximum
- Material [MATT]
- Steel Comp 4130 Overall
- Opening Diameter [AGNJ]
- 0.260 Inches Nominal
- Lug Thickness [AHMN]
- 0.063 Inches Nominal
- Lug Width [AHMM]
- 0.037 Inches Nominal
- Overall Length [ABHP]
- 4.000 Inches Nominal

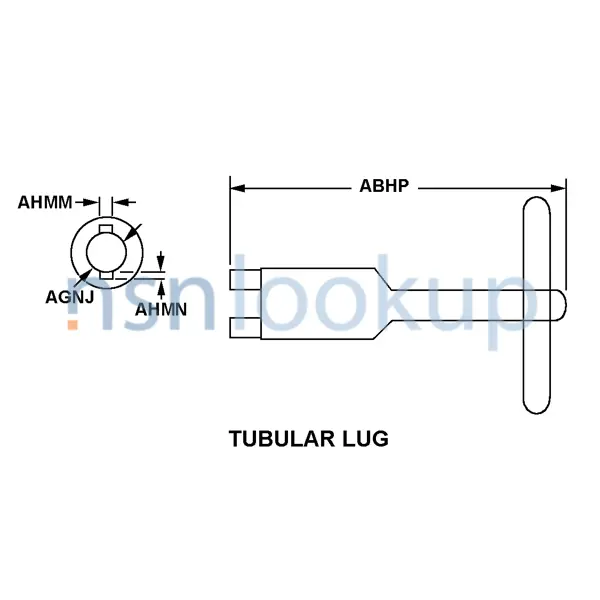

- Style Designator [STYL]
- Tubular Lug
- Surface Treatment [SFTT]
- Cadmium Overall
Similar Supply Items to 5120-00-510-1009
Freight Information 5120-00-510-1009
5120-00-510-1009 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-510-1009 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-510-1009 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-510-1009 is not classified as a special type of cargo when transported by water. 5120-00-510-1009 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
