5120-00-468-8605
Box Wrench
5120004688605 004688605 387363PCA2 282-2200-771493PC4 296-2200-71650AP2PCA2 296-2200-71650AP2PCN3044 907-275PCA2 547M5067PPCA2
A nonadjustable wrench having a box wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; and WRENCH, BOX AND OPEN END, COMBINATION. View more Box Wrench
January 2023
8
Marketplace 5120-00-468-8605
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-468-8605 1+ Documents (More...)
United States (US) 4. 5120-00-468-8605 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5120-00-468-8605 RQST Updated Every Day 5120-00-468-8605 RQST NE Related Documents
Restrictions 5120-00-468-8605
5120-00-468-8605 is a Box Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-468-8605
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-468-8605
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5120-00-468-8605
- Part Number
- Manufacturer
- Status
- 282-2200-771493PC4
- Manufacturer
- 82126 - Mare Island Naval Shipyard (Obsolete)
- Primary Buy
- Primary Buy
- 387363PCA2
- 80064 - Naval Ship Systems Command (Active)
- Secondary Buy
- Secondary Buy
- 282-2200-771493PC4
- 80064 - Naval Ship Systems Command (Active)
- Secondary Buy
- Secondary Buy
- 296-2200-71650AP2PCA2
- 80064 - Naval Ship Systems Command (Active)
- Secondary Buy
- Secondary Buy
- 296-2200-71650AP2PCN3044
- 80064 - Naval Ship Systems Command (Active)
- Secondary Buy
- Secondary Buy
- 907-275PCA2
- 81316 - Portsmouth Naval Shipyard (Active)
- Secondary Buy
- Secondary Buy
- 547M5067PPCA2
- 14921 - Cramp Shipbuilding And Drydock Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-00-468-8605
- Characteristic
- Specifications
- FIIG
- Specifications
- A527Y0
- Material [MATT]
- Steel Overall
- Offset Height [AJAT]
- 1.500 Inches Nominal
- Outside Diameter [ABKV]
- 4.250 Inches Nominal
- Large End Head Thickness [AJAU]
- 0.562 Inches Nominal
- Small End Head Thickness [AJAV]
- 0.625 Inches Nominal
- Overall Length [ABHP]
- 12.000 Inches Nominal
- Wrenching Surface Size [AJBR]
- 3.031 Inches Nominal Second End
- Wrenching Surface Shape [CRWY]
- 6 Point Both Ends Internal
- Wrenching Surface Size [AJBR]
- 0.906 Inches Nominal First End
- Special Markings [MARK]
- Steer. Gear Pump Manifold By Pass

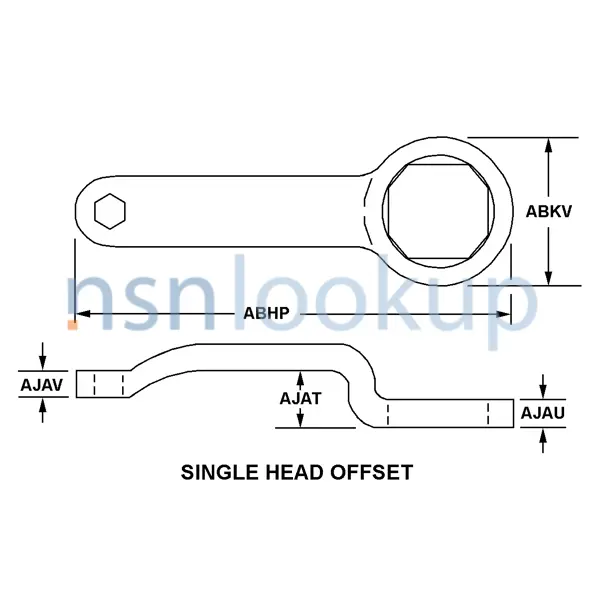

- Style Designator [STYL]
- Sngle Head Offset
Similar Supply Items to 5120-00-468-8605
Freight Information 5120-00-468-8605
5120-00-468-8605 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-468-8605 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-468-8605 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-468-8605 is not classified as a special type of cargo when transported by water. 5120-00-468-8605 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
