5120-00-357-9150
Spanner Wrench
5120003579150 003579150 7083582
A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG. View more Spanner Wrench
January 2023
14
Marketplace 5120-00-357-9150
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-357-9150 2+ Documents (More...)
/fsg-51/fsc-5120/us
5120-00-357-9150 RQST Updated Every Day 5120-00-357-9150 RQST NE Related Documents 5120-00-357-9150
Datasheet Management 5120-00-357-9150 RQST Updated Every Day 5120-00-357-9150 RQST NE Related Documents
Spanner Wrench 5120003579150 003579150 Upgrade for $1 a day Upgrade your Account Upgrade 5120-00
-357-9150Spanner Wrench5120003579150 003579150 7083582 Request a Quotation from participating marketplace
Restrictions 5120-00-357-9150
5120-00-357-9150 is a Spanner Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5120-00-357-9150
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-357-9150
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5120-00-357-9150
- Part Number
- Manufacturer
- Status
- 7083582
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 5120-00-357-9150
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Material [MATT]
- Steel Comp 1020 Overall

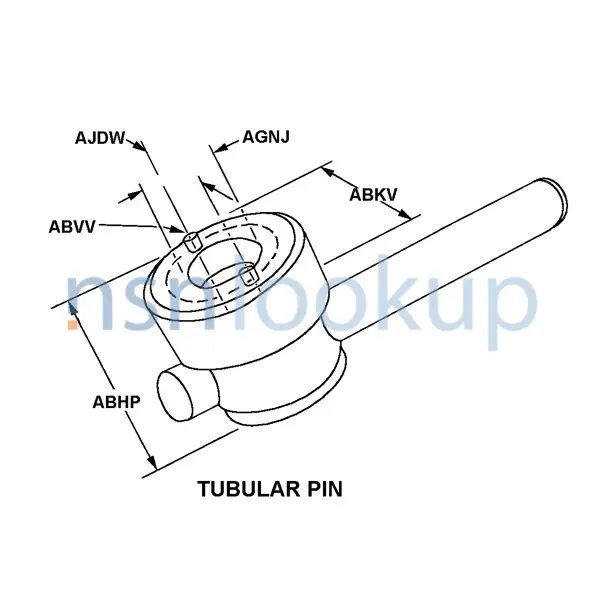

- Style Designator [STYL]
- Tubular Pin
- Overall Length [ABHP]
- 2.250 Inches Nominal
- Outside Diameter [ABKV]
- 3.125 Inches Nominal
- Pin Diameter [ABVV]
- 0.250 Inches Nominal
- Opening Diameter [AGNJ]
- 2.501 Inches Nominal
- Center To Center Distance Between Pins [AJDW]
- 2.812 Inches Nominal
- End Item Identification [AGAV]
- 2350-00-796-8000 Gun Sp M42
Similar Supply Items to 5120-00-357-9150
Freight Information 5120-00-357-9150
5120-00-357-9150 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-357-9150 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5120-00-357-9150 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-357-9150 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-357-9150 is not classified as a special type of cargo when transported by water. 5120-00-357-9150 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
