5120-00-317-8077
Box Wrench
5120003178077 003178077 6248469
A nonadjustable wrench having a box wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; and WRENCH, BOX AND OPEN END, COMBINATION. View more Box Wrench
January 2023
9
Marketplace 5120-00-317-8077
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-317-8077 1+ Documents (More...)
1+ Documents ( More... ) https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-317-8077 Box Wrench 5120003178077
WRENCH,BOX RQST NS Request Quotation Updated Every Day 5120-00-317-8077 RQST NE Updated Every Day 5120
Restrictions 5120-00-317-8077
5120-00-317-8077 is a Box Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-317-8077
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-317-8077
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5120-00-317-8077
- Part Number
- Manufacturer
- Status
- 6248469
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 5120-00-317-8077
- Characteristic
- Specifications
- FIIG
- Specifications
- A527Y0
- Material Document And Classification [MDCL]
- Sae Assn Std Single Material Response Overall
- Material [MATT]
- Steel Comp 1020 Overall
- Overall Length [ABHP]
- 14.000 Inches Nominal
- Wrenching Surface Shape [CRWY]
- Hexagon Single End Internal
- Wrenching Surface Size [AJBR]
- 1.075 Inches Minimum Single End And 1.078 Inches Maximum Single End

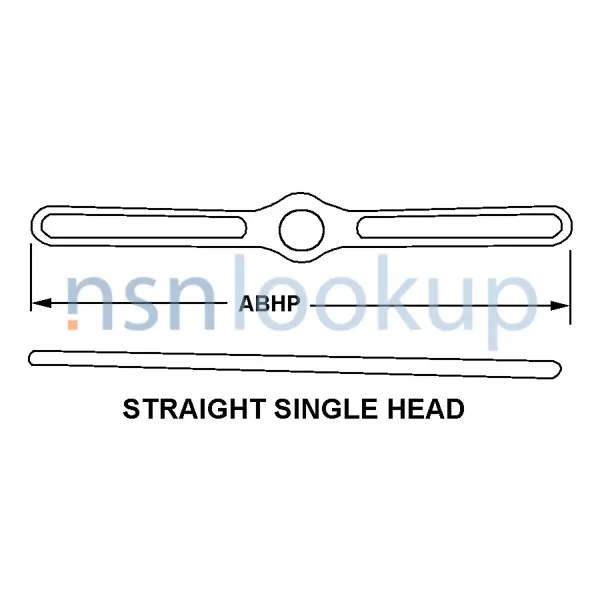

- Style Designator [STYL]
- Straight Single Head
- Surface Treatment Document And Classification [STDC]
- Mil-P-16232 Mil Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Phosphate Overall
Management Data 5120-00-317-8077
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Feb 2020
- US Marine Corps (DM)
- EA
- Subscribe
- EA
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
- Physical Category:
- 1
- Bin
Similar Supply Items to 5120-00-317-8077
Freight Information 5120-00-317-8077
5120-00-317-8077 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-317-8077 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-317-8077 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-317-8077 is not classified as a special type of cargo when transported by water. 5120-00-317-8077 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
