5120-00-293-0793

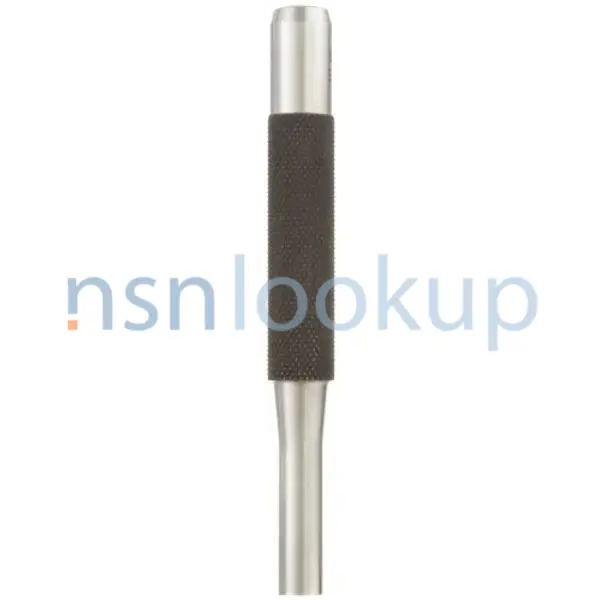

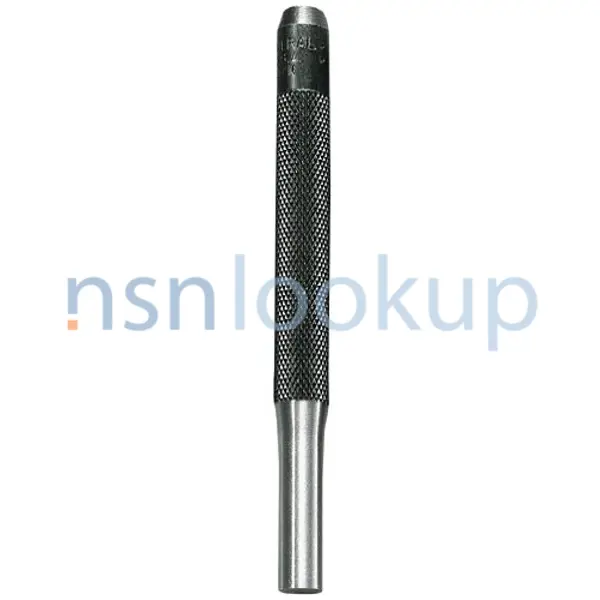

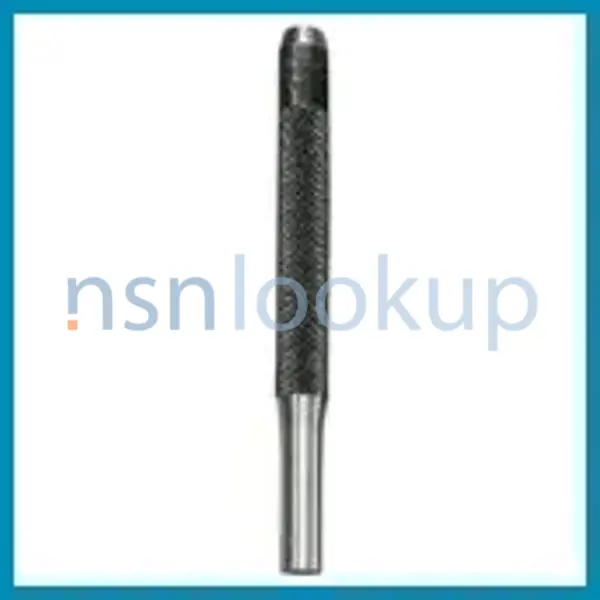

Drive Pin Punch
5120002930793 002930793 B107.410 B107.410 CAT 48 TY2CL5 21708 31048 75H 52585 565H 00337 B107.48 B107.48 TY2CL5 GGG-P-831 GGG-P-831 TY8CLAST1SZ8
INC 03851 REINSTATED ON 030405~A round, square, hexagonal or octagonal bodied hand tool, having a flat blunt face. Includes tapered items whose taper length is less than 4 inches (101.6 mm). The tapered items are normally used to start out, pins, bolts, and the like from holes having a force or drive fit, and the straight items to follow thru or finish driving out. For tapered items having a taper length of 4 inches (101.6 mm) or more, see PUNCH, DRIFT and PUNCH, ALIGNING. See also NAIL SET. View more Drive Pin Punch
November 2023
68
Marketplace 5120-00-293-0793
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-293-0793 5+ Documents (More...)
Subscribe to View Vendor Details... 52585 PUNCH,DRIVE PIN 10 EA NS Request Quotation 75H PUNCH,DRIVE
TY2CL5 0450407 B107.410 CAT 48 TY2CL5 2231019 B107.48 831GGG-P-831 TY8CLAST1SZ1 41P3600 450407 B107.48
565H 00337 B107.48B107.48 TY2CL5GGG-P-831GGG-P-831 TY8CLAST1SZ8 INC 03851 B107.48 TY2CL5 0450407 B107.410
0450407 B107.410 CAT 48 TY2CL5 2231019 B107.48 5120-00-223-1019 B107.48 TY2CL5 INC 03851 CAT CAT 48
/fsg-51/fsc-5120/us 5120-00-293-0793 Drive Pin Punch 5120002930793 002930793 B107.410 CAT 48 TY2CL5
21708 31048 75H 52585 565H 00337 B107.48B107.48 TY2CL5GGG-P-831GGG-P-831 TY8CLAST1SZ8 TY2CL5 0450407
Quotation from participating marketplace vendors Request Updated Every Day Search Global Test Supply 565H
Drive Pin Punch 5120002930793 002930793 293-0793Drive Pin Punch5120002930793 002930793 B107.410
41P3600 450407 B107.48 TY2CL5 0450407 41P4009 94 INC 03851 REINSTATED ON 030405~A round, square
41P3600450407B107.48 TY2CL5045040741P400994 INC 03851 REINSTATED ON 030405~A round 5120-00-223-1019 B107.48
Restrictions 5120-00-293-0793
5120-00-293-0793 is a Drive Pin Punch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-293-0793
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-293-0793
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- AZCTCLBFBD
- US Coast Guard (C014)
- Effective Date:
- 1 Apr 1991
- US Air Force (FGGS)
- Effective Date:
- 1 Apr 1991
- NASA (G121)
- Effective Date:
- 1 Apr 1991
- NASA (G721)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- NASA (G861)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Jan 2014
- Supplementary Collaborators:
- GGGT
- Austria (WB)
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Lithuania (WI)
- Lithuania (WI01)
- Effective Date:
- 1 Mar 2010
- Poland (WP)
- Poland (WP01)
- Effective Date:
- 1 May 2005
- Spain (YB)
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ)
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW)
- Malaysia (YW01)
- Effective Date:
- 1 Apr 1991
- Thailand (YY01)
- Effective Date:
- 1 Feb 2015
- Australia (ZA)
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB)
- Belgium (ZB01)
- Effective Date:
- 1 Apr 2003
- Canada (ZC)
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE)
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF)
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH)
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK)
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Philippines (ZM01)
- Effective Date:
- 1 Feb 2015
- Portugal (ZP)
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR)
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Denmark (ZS)
- Denmark (ZS01)
- Effective Date:
- 1 Sep 1998
- Greece (ZU)
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW)
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
- NATO Maintenance and Supply Agency (ZX)
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Sep 2004
- United States of America (ZZ)
Approved Sources 5120-00-293-0793
- Part Number
- Manufacturer
- Status
- B107.410
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Reference
- Incomplete Reference
- 21708
- 39068 - Mayhew Steel Products Inc (Active)
- Primary Buy
- Primary Buy
- B107.410 CAT 48 TY2CL5
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 31048
- 3JKA4 - General Tools Manufacturing Co., (Active)
- Secondary Buy
- Secondary Buy
- 75H
- 3JKA4 - General Tools Manufacturing Co., (Active)
- Secondary Buy
- Secondary Buy
- 52585
- 57163 - L.S. Starrett Company (The) (Active)
- Secondary Buy
- Secondary Buy
- 565H
- 57163 - L.S. Starrett Company (The) (Active)
- Secondary Buy
- Secondary Buy
- 00337
- 66080 - Wilton Corp (Active)
- Secondary Buy
- Secondary Buy
- B107.48
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.48 TY2CL5
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-P-831
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-P-831 TY8CLAST1SZ8
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 75H
- 73792 - General Hardware Mfg Co Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-00-293-0793
- Characteristic
- Specifications
- FIIG
- Specifications
- A531R0
- Features Provided [CBBL]
- Knurled Shank
- Material [MATT]
- Steel
- Nondefinitive Spec/Std Data [ZZZT]
- 2 Type And 5 Class

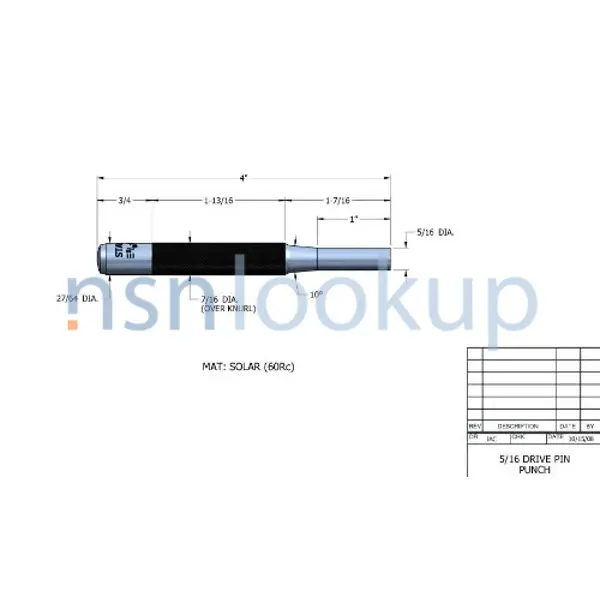

- Pin Length [AKRS]
- 1.000 Inches Minimum
- Point Size [CLBT]
- 0.312 Inches
- Shank Diameter [AAZE]
- 0.375 Inches Nominal
- Shank Shape [ASWL]
- Round
- Overall Length [ABHP]
- 4.000 Inches Nominal
- Specification/Standard Data [ZZZK]
- 05047-Asme B107.410/B107.48 Professional/Industrial Association Standard
Management Data 5120-00-293-0793
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 6
- Critical Repair Part to a Non-Combat Essential End Item
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
Similar Supply Items to 5120-00-293-0793
Freight Information 5120-00-293-0793
5120-00-293-0793 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-293-0793 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-293-0793 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-293-0793 is not classified as a special type of cargo when transported by water. 5120-00-293-0793 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
