5120-00-293-0230
Ratchet Wrench
5120002930230 002930230 CPR109375 7366 P-61
A single or double end wrench having a reversible or nonreversible ratchet socket on one or both ends. One end may have a fixed socket or handgrip. It may have a wrench opening through the handle. For items with drive tang, see HANDLE, SOCKET WRENCH. View more Ratchet Wrench
January 2023
24
Marketplace 5120-00-293-0230
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-293-0230 2+ Documents (More...)
/fsg-51/fsc-5120/us
United States (US) 4. 5120-00-293-0230 Marketplace Restrictions Approved Sources Datasheet Management
NS Request Quotation Updated Every Day 5120-00-293-0230 RQST NE Updated Every Day 5120-00-293-0230 RQST
Restrictions 5120-00-293-0230
5120-00-293-0230 is a Ratchet Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-293-0230
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-293-0230
- Spain (YB)
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC)
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE)
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH)
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK)
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU)
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW)
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5120-00-293-0230
- Part Number
- Manufacturer
- Status
- CPR109375
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 7366
- 45225 - Bosch Automotive Service Solutions (Active)
- Secondary Buy
- Secondary Buy
- P-61
- 45225 - Bosch Automotive Service Solutions (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-00-293-0230
- Characteristic
- Specifications
- FIIG
- Specifications
- A527Y0
- Features Provided [CBBL]
- Reversible Ratchet
- Head Thickness [AHML]
- 2.000 Inches Nominal
- Material [MATT]
- Iron And Steel Overall
- Overall Length [ABHP]
- 10.000 Inches Nominal
- Wrenching Surface Shape [CRWY]
- 6 Point Both Ends Internal
- Wrenching Surface Size [AJBR]
- 1.500 Inches Nominal Both Ends

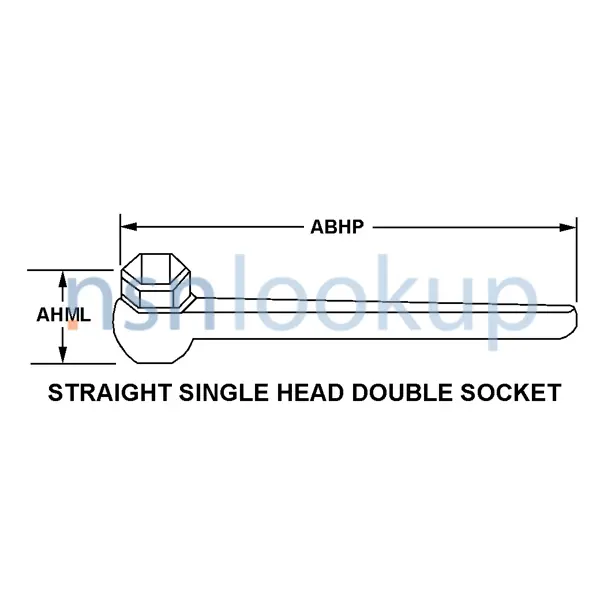

- Style Designator [STYL]
- Straight Single Head Double Socket
- Surface Treatment [SFTT]
- Oxide And Phosphate And Lacquer Overall
Similar Supply Items to 5120-00-293-0230
Freight Information 5120-00-293-0230
5120-00-293-0230 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-293-0230 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-293-0230 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-293-0230 is not classified as a special type of cargo when transported by water. 5120-00-293-0230 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
