5120-00-279-0480
Socket Wrench Socket
5120002790480 002790480 14-76901-3 SW424 12-424
An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint. View more Socket Wrench Socket
September 2025
10
Marketplace 5120-00-279-0480
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-279-0480 4+ Documents (More...)
SOCKET,SOCKET WRENCH 10 EA NS Request Quotation Updated Every Day SW424 RQST NE Updated Every Day 12
-424 RQST NE Updated Every Day 5120-00-279-0480 RQST NE Updated Every Day 5120-00-279-0480 RQST Updated

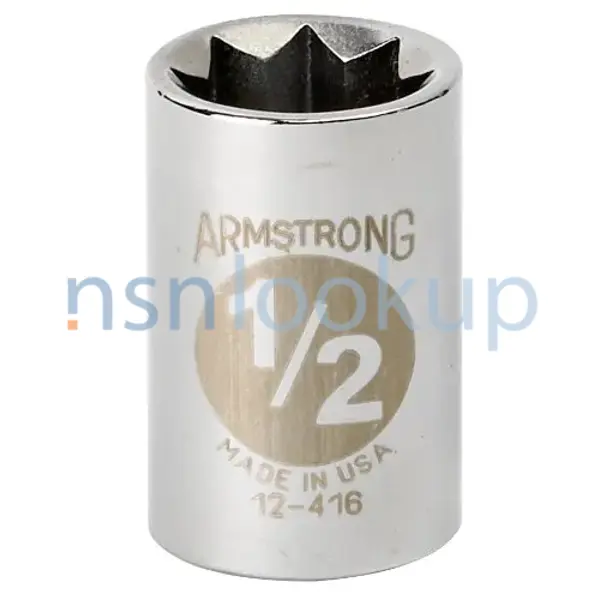

Socket Wrench Socket 5120002790480 002790480 Photo 1/3 5120-00-279-0480 Photo 2/3 NSN 5120-00-279
RQST NE Updated Every Day 5120-00-279-0480 RQST Updated Every Day 5120-00-279-0480 RQST NE Related Documents
Socket Wrench Socket 5120002790480 002790480 Identification) 3/3 - - - 1. 5120-00-279-0480 4+ Documents
Restrictions 5120-00-279-0480
5120-00-279-0480 is a Socket Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-279-0480
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-279-0480
- Brazil (YA01)
- Effective Date:
- 1 Jan 2009
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Oct 2009
Approved Sources 5120-00-279-0480
- Part Number
- Manufacturer
- Status
- 14-76901-3
- Manufacturer
- 76823 - Northrop Grumman Systems Corporation (Active)
- Source Control
- Source Control
- SW424
- 55719 - Idsc Holdings Llc (Active)
- Primary Buy
- Primary Buy
- 12-424
- 636D0 - Apex Tool Group, Llc (Active)
- Primary Buy
- Primary Buy
- 12-424
- 03914 - Armstrong Bros Tool Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 12-424
- 08292 - Easco Hand Tools Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-00-279-0480
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Outside Diameter [AHMK]
- 1.187 Inches Nominal
- Drive End Shape [CTCT]
- Square Single End Internal
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Single End
- Material [MATT]
- Steel Comp 4340 Overall
- Overall Length [ABHP]
- 1.500 Inches Nominal
- Wrenching End Opening Depth [AJAP]
- 0.563 Inches Nominal
- Wrenching End Outside Diameter [AHMJ]
- 1.281 Inches Nominal
- Wrenching Surface Shape [CRWY]
- 8 Point Single End Internal
- Wrenching Surface Size [AJBR]
- 0.750 Inches Nominal Single End
- Style Designator [STYL]
- Internal-Internal
- Surface Treatment [SFTT]
- Chromium Overall And Nickel Overall
Similar Supply Items to 5120-00-279-0480
Freight Information 5120-00-279-0480
5120-00-279-0480 has freight characteristics managed by the General Services Administration (GSA).It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-279-0480 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5120-00-279-0480 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-279-0480 is not classified as a special type of cargo when transported by water. 5120-00-279-0480 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
