5120-00-277-8306

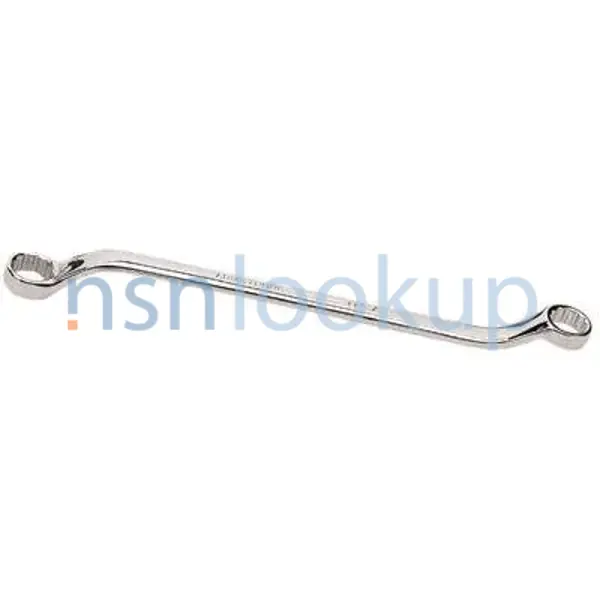

Box Wrench
5120002778306 002778306 AS954 AS954 TY2CL3STB XDH4046 27-481 AS954 TY2CL3STA B107.9 TY3CL1 GGG-W-636 TY1CL2ST1 B107.100 B107.9 2812A GGG-W-636
A nonadjustable wrench having a box wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; and WRENCH, BOX AND OPEN END, COMBINATION. View more Box Wrench
November 2023
43
Marketplace 5120-00-277-8306
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5120-00-277-8306 5+ Documents (More...)
B107.9 TY3CL1 2810 AS954 TY2CL3STA FRS XO3032 ,AS954 TY2CL1STA XB3032 B107.100 B107.6 A-A-1344 8185
AS954 TY2CL3STAB107.9 TY3CL1 GGG-W-636 TY1CL2ST1 B107.100B107.9 2812A AS954AS954 TY2CL3STB XDH404627
B107.100B107.6A-A-1344 8185 27-451 B107.9 TY3CL1 2810 AS954 TY2CL3STA https//www.nsnlookup.com /fsg-
-1344 8185 27-451 B107.9 TY3CL1 2810 AS954 TY2CL3STA https//www.nsnlookup.com -8913 Box Wrench 5120013998913013998913
of box wrenches AS954 27-481 B107.9 TY3CL1 GGG-W-636 TY1CL2ST1 B107.100B107.9 Box Wrench 5120014816768014816768
AS954 TY2CL3STA B107.9 TY3CL1 GGG-W-636 TY1CL2ST1 B107.100B107.9 2812A AS954 TY2CL3STAB107.9 https//
TY2CL3STA B107.9 TY3CL1 GGG-W-636 TY1CL2ST1 B107.100B107.9 2812A AS954 TY2CL3STAB107.9 AS954 TY2CL3STB
AS954 TY2CL3STA B107.9 TY3CL1 GGG-W-636 TY1CL2ST1 B107.100B107.9 2812A AS954 TY2CL3STAB107.9 https//
AS954 TY2CL3STA B107.9 TY3CL1 GGG-W-636 TY1CL2ST1 B107.100B107.9 2812A AS954 TY2CL3STAB107.9 https//
TY3CL1 GGG-W-636 TY1CL2ST1 B107.100B107.9 2812A AS954 TY2CL3STAB107.9 AS954 TY2CL3STB Box Wrench 5120010698273010698273
Restrictions 5120-00-277-8306
5120-00-277-8306 is a Box Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-277-8306
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-277-8306
- US Coast Guard (C014)
- Effective Date:
- 1 Apr 1991
- US Air Force (FGGS)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- GTHD
- Poland (WP01)
- Effective Date:
- 1 Jun 2007
- Brazil (YA01)
- Effective Date:
- 1 Aug 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW01)
- Effective Date:
- 1 Jun 1996
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Sep 2002
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5120-00-277-8306
- Part Number
- Manufacturer
- Status
- AS954
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- XDH4046
- 55719 - Idsc Holdings Llc (Active)
- Primary Buy
- Primary Buy
- AS954 TY2CL3STB
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 27-481
- 08292 - Easco Hand Tools Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AS954 TY2CL3STA
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.9 TY3CL1
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 27-481
- 03914 - Armstrong Bros Tool Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-W-636 TY1CL2ST1
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.100
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.9
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 27-481
- 636D0 - Apex Tool Group, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 2812A
- 07971 - Bonney Forge Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- AS954
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-W-636
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-00-277-8306
- Characteristic
- Specifications
- FIIG
- Specifications
- A527Y0
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 2 Type And 3 Class And A Style
- Large End Head Thickness [AJAU]
- 0.938 Inches Maximum
- Large End Outside Diameter [AHMG]
- 2.125 Inches Maximum
- Small End Head Thickness [AJAV]
- 0.875 Inches Maximum
- Small End Outside Diameter [AHMH]
- 1.812 Inches Maximum
- Overall Length [ABHP]
- 18.000 Inches Minimum And 20.500 Inches Maximum
- Special Markings [MARK]
- Wrench Size
- Wrenching Surface Size [AJBR]
- 1.250 Inches Maximum First End
- Wrenching Surface Size [AJBR]
- 1.438 Inches Maximum Second End
- Wrenching End Offset Angle [CSPX]
- 40.0 Degrees Minimum And 65.0 Degrees Maximum
- Wrenching Surface Shape [CRWY]
- 12 Point Both Ends Internal
- Specification/Standard Data [ZZZK]
- 81343-Sae As954 Professional/Industrial Association Standard
- Style Designator [STYL]
- Deep Angular Offset Double Head
- Surface Treatment [SFTT]
- Chromium Overall
Management Data 5120-00-277-8306
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
Similar Supply Items to 5120-00-277-8306
Freight Information 5120-00-277-8306
5120-00-277-8306 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-277-8306 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-277-8306 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-277-8306 is not classified as a special type of cargo when transported by water. 5120-00-277-8306 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
