5120-00-277-3666
Crowfoot Socket Wrench Head
5120002773666 002773666 5364 GGG-W-646 TY1CL2STATM59 GGG-W-646 GIT-5364
A component with a square internal drive eccentric to an open-wall opening designed to receive any of a series of wrenching sockets, adapters, or attachments. See also CROWFOOT ATTACHMENT, SOCKET WRENCH and SOCKET, CROWFOOT WRENCH HEAD. View more Crowfoot Socket Wrench Head
January 2023
23
Marketplace 5120-00-277-3666
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-277-3666 5+ Documents (More...)
Socket Wrench Head 5120002773666 5364GGG-W-646 TY1CL2STATM59GGG-W-646GIT-5364 A component with a square
-5364 A component with a square Crowfoot Socket Wrench Head 5120002773666 TY1CL2STATM59 GGG-W-646GIT-
TY2CL1STAFMAPT75 A component with an open-wall opening having one end designed to fit GGG-W-646
Crowfoot Socket Wrench Head 5120002773666 TY1CL2STATM59 GGG-W-646 GIT-5364 A component with a square
Crowfoot Socket Wrench Head 5120002773666 TY1CL2STATM59 GGG-W-646 GIT-5364 A component with a square
TY2CL1STAFMAPT94 GGG-W-646 A component with an open-wall opening having one end designed to fit
GGG-W-646 TY2CL1STAFMAPT62 A component with an open-wall opening having one end designed to fit
Crowfoot Socket Wrench Head 5120002773666 TY1CL2STATM59 GGG-W-646 GIT-5364 A component with a square
GGG-W-646 A component with an open-wall opening having one A-A-3042 A-A-3042 COMPONENT 148 GGG-W-646
GGG-W-646 A component with an open-wall opening having one #144 GGG-W-646 TY2CL1STAFMBPT144 GGG-W-646
Restrictions 5120-00-277-3666
5120-00-277-3666 is a Crowfoot Socket Wrench Head that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-277-3666
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-277-3666
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Aug 1995
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Sep 2009
Approved Sources 5120-00-277-3666
- Part Number
- Manufacturer
- Status
- 5364
- Manufacturer
- 63704 - Granco Industries Inc (Replaced)
- Original Design
- Original Design
- 5364
- 688L6 - Wta Tool Llc (Active)
- Secondary Buy
- Secondary Buy
- GGG-W-646 TY1CL2STATM59
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-W-646
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GIT-5364
- 63704 - Granco Industries Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete

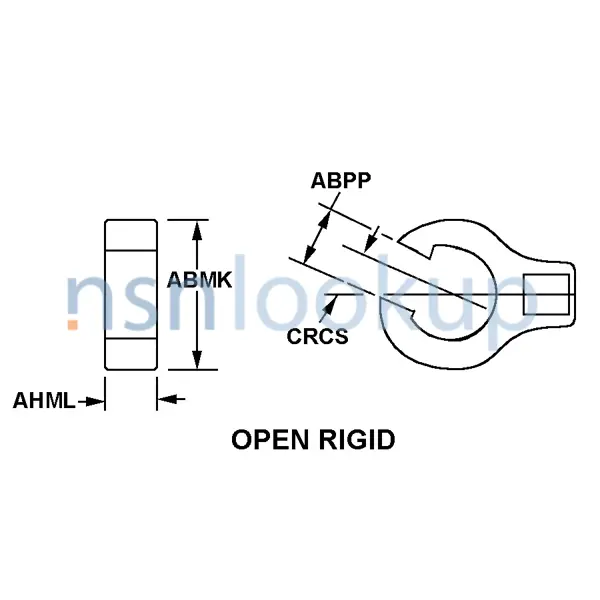

Datasheet 5120-00-277-3666
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End Internal
- Drive Surface Size [ATNC]
- 0.254 Inches Minimum Single End And 0.259 Inches Maximum Single End
- Head Angle [CRCS]
- 15.0 Degrees Nominal
- Head Thickness [AHML]
- 0.343 Inches Minimum And 0.407 Inches Maximum
- Opening Width [ABPP]
- 0.520 Inches Minimum
- Material [MATT]
- Steel Overall
- Overall Width [ABMK]
- 1.088 Inches Minimum And 1.152 Inches Maximum
- Wrenching Surface Shape [CRWY]
- Oval Single End Internal
- Style Designator [STYL]
- Open Rigid
- Torque Capacity [AJCG]
- 500.0 Inch-Pounds Nominal
NATO Stock Numbers Related to 5120-00-277-3666
Freight Information 5120-00-277-3666
5120-00-277-3666 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-277-3666 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-277-3666 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-277-3666 is not classified as a special type of cargo when transported by water. 5120-00-277-3666 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
