5120-00-277-2291

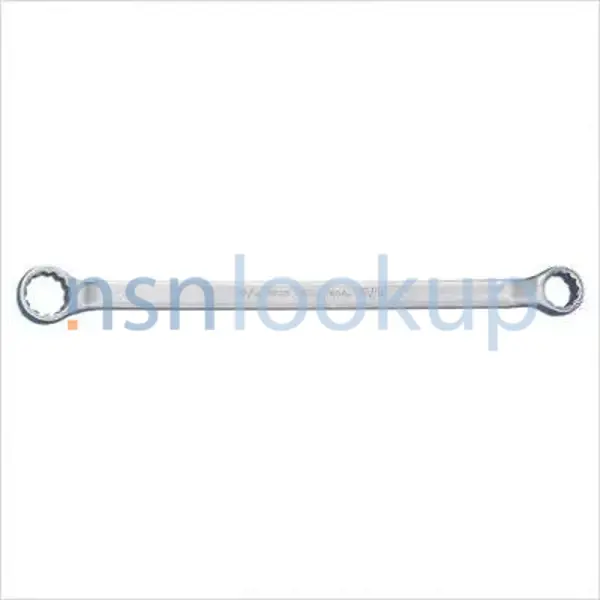

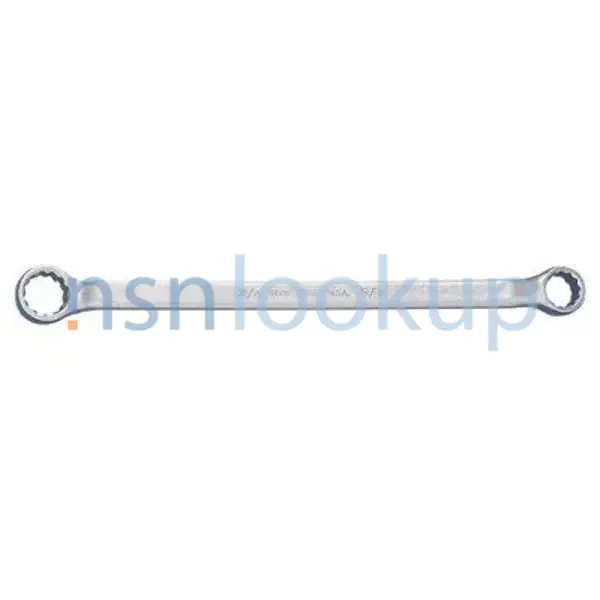

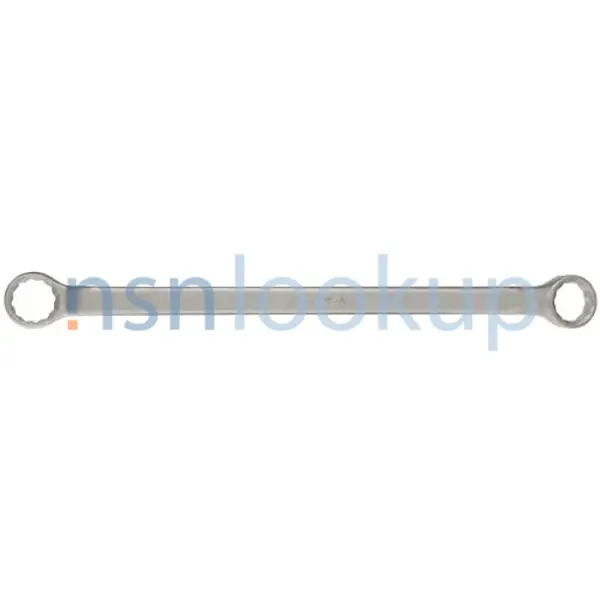

Box Wrench
5120002772291 002772291 AS954 AS954 TY2CL3STB 5265513C TKHX41F 8029B AS954 TY2CL3STA B107.100 B107.6 26-2730 B107.9 B107.9 TY3CL1 A-A-1344 GGG-W-636
A nonadjustable wrench having a box wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; and WRENCH, BOX AND OPEN END, COMBINATION. View more Box Wrench
Managed by United States
NSN Created on 1 Jan 1961
Data Last Changed
November 2023
November 2023
NATO Update Count
29
29
NATO Data Quality
Marketplace 5120-00-277-2291
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
B107.100 WRENCH,BOX 6 EA NS
AS954TY2CL3STA WRENCH,BOX 6 EA NS
B107.100BOXTY3CL1 WRENCH,BOX 6 EA NS
B107.6TY1CL2ST1 WRENCH,BOX 6 EA NS
GGG-W-636 WRENCH,BOX 6 EA NS
AS954 WRENCH,BOX 6 EA NS
A-A-1344 WRENCH,BOX 6 EA NS
Updated Every 15 Minutes 5120-00-277-2291 BUY NE
Updated Every Day 5120-00-277-2291 RQST NE
Updated Every Day 5120-00-277-2291 RQST
Updated Every Day 5120-00-277-2291 RQST NE
Related Documents 5120-00-277-2291 5+ Documents (More...)
AS954 AS954 TY2CL3STB 5265513C TKHX41F 8029B AS954 TY2CL3STA B107.100 B107.6 26-2730 B107.9 B107.9 TY3CL1
-2730B107.9B107.9 TY3CL1 AS954 TY2CL3STA XID1618A AS954 TY2CL1STA AS954 TY2CL3STBB107.100B107.9B107.9
TY3CL2 A-A-1345 B107.6 AS954 TY2CL3STA XID1618A AS954 TY2CL1STA AS954 TY2CL3STBB107.100B107.9B107.9
-2730B107.9B107.9 TY3CL1 AS954 TY2CL3STA XID1618A AS954 TY2CL1STA AS954 TY2CL3STBB107.100B107.9B107.9
TY3CL2 A-A-1345 B107.6 AS954 TY2CL3STA XID1618A AS954 TY2CL1STA AS954 TY2CL3STBB107.100B107.9B107.9
enable JavaScript in your web browser . 5120-21-808-9620Hydraulic Ja Handle5120218089620 218089620 8029B
enable JavaScript in your web browser . 5120-21-807-6402Box Wrench5120218076402 218076402 G25B 39GP11 8029B
your Account Upgrade 4310-01-057-7118First Stage Liner4310010577118 010577118 220874C1 200136UPC35 8029B
enable JavaScript in your web browser . 5120-21-807-6402Box Wrench5120218076402 218076402 G25B 39GP11 8029B
your Account Upgrade 4310-01-057-7118First Stage Liner4310010577118 010577118 220874C1 200136UPC35 8029B
AS954 TY2CL3STB 6241288 B107.100 B107.9 B107.9 TY3CL1 A-A-1344 388672PC7 AS954 TY2CL3STA B107.6 GGG-W
B107.39 B107.100 CAT 39 TY1CL1 GGG-W-636 TY4 GGG-W-636 A nonadjustable B107.6 B107.39 B107.100 CAT 39
B107.9M B107.100 AS955 B107.9 TY3CL2 of box wrenches TY1CL1 B107.6 B107.39 B107.100B107.6 B107.39 B107.100
B107.39 B107.100 CAT 39 TY1CL1 GGG-W-636 TY4 GGG-W-636 A nonadjustable B107.6 B107.39 B107.100 CAT 39
B107.9M B107.100 AS955 B107.9 TY3CL2 of box wrenches TY1CL1 B107.6 B107.39 B107.100B107.6 B107.39 B107.100
AS954 TY2CL3STB B107.100 AS954 TY2CL3STA A-A-1344 B107.9 B107.9 TY3CL1 B107.6 2804L GGG-W-636 10082441
B107.100 CAT 39 TY1CL1 GGG-W-636 TY4 GGG-W-636 A nonadjustable OEXM716 having https// AS954 TY2CL3STA
-0453-9/16X5/8 B107.9 TY3CL2B107.100B107.9B107.6 2806 AS954 TY2CL3STB https -0453 AS954 TY2CL3STA TS5120
B107.100 CAT 39 TY1CL1 GGG-W-636 TY4 GGG-W-636 A nonadjustable OEXM716 having https// AS954 TY2CL3STA
-0453-9/16X5/8 B107.9 TY3CL2B107.100B107.9B107.6 2806 AS954 TY2CL3STB https -0453 AS954 TY2CL3STA TS5120
AS954 TY2CL3STB AS954 TY2CL3STA B107.6 8735 XO3236 B107.9 TY3CL1 B107.9 041065 41065 A-A-1344 B107.100
B107.9M B107.100 AS955 B107.9 TY3CL2 of box wrenches TY1CL1 B107.6 B107.39 AS954 TY2CL3STB 6241288 B107.100B107.9B107.9
/16X5/8 B107.9 TY3CL2B107.100B107.9B107.6 2806 AS954 TY2CL3STB https -0453 AS954 TY2CL3STA TS5120 https
B107.9M B107.100 AS955 B107.9 TY3CL2 of box wrenches TY1CL1 B107.6 B107.39 AS954 TY2CL3STB 6241288 B107.100B107.9B107.9
/16X5/8 B107.9 TY3CL2B107.100B107.9B107.6 2806 AS954 TY2CL3STB https -0453 AS954 TY2CL3STA TS5120 https
Restrictions 5120-00-277-2291
5120-00-277-2291 is a Box Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-277-2291
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-277-2291
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- US Coast Guard (C014)
- Effective Date:
- 1 Apr 1991
- US Air Force (FGGS)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- NASA (G881)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- GTHXHD
- Brazil (YA01)
- Effective Date:
- 1 Aug 2000
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5120-00-277-2291
- Part Number
- Manufacturer
- Status
- AS954
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- AS954 TY2CL3STB
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 5265513C
- 19204 - Army, United States Department Of (Active)
- Secondary Buy
- Secondary Buy
- TKHX41F
- 19204 - Army, United States Department Of (Active)
- Secondary Buy
- Secondary Buy
- 8029B
- 05506 - Martin Sprocket And Gear Inc (Active)
- Secondary Buy
- Secondary Buy
- AS954 TY2CL3STA
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.100
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.6
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 26-2730
- 05506 - Martin Sprocket And Gear Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.9
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.9 TY3CL1
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- A-A-1344
- 58536 - Federal Commercial Item Description (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-W-636
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AS954
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-00-277-2291
- Characteristic
- Specifications
- FIIG
- Specifications
- A527Y0
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 2 Type And 3 Class And A Style
- Large End Head Thickness [AJAU]
- 0.531 Inches Maximum
- Large End Outside Diameter [AHMG]
- 1.125 Inches Maximum
- Small End Head Thickness [AJAV]
- 0.469 Inches Maximum
- Small End Outside Diameter [AHMH]
- 1.031 Inches Maximum
- Overall Length [ABHP]
- 9.750 Inches Minimum
- Special Features [FEAT]
- Forged Steel
- Wrenching End Offset Angle [CSPX]
- 40.0 Degrees Minimum And 65.0 Degrees Maximum
- Wrenching Surface Shape [CRWY]
- 12 Point Both Ends Internal
- Wrenching Surface Size [AJBR]
- 0.688 Inches Maximum First End
- Wrenching Surface Size [AJBR]
- 0.750 Inches Maximum Second End
- Special Markings [MARK]
- Wrench Size
- Specification/Standard Data [ZZZK]
- 81343-Sae As954 Professional/Industrial Association Standard
- Style Designator [STYL]
- Deep Angular Offset Double Head
- Surface Treatment [SFTT]
- Chromium Overall
Management Data 5120-00-277-2291
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
NATO Stock Numbers Related to 5120-00-277-2291
5120-12-361-1199 5120-99-202-7896 5120-99-257-5722 5120-22-212-1172 5120-22-250-3749 5120-22-120-9905 5120-12-186-7564 5120-99-422-4581 5120-21-866-3200 5120-21-895-4637 5120-99-539-4650 5120-17-022-3416 5120-12-314-1130 5120-12-137-3412 5120-12-317-3736 5120-98-852-5067 5120-19-001-3627 5120-98-205-7925
Freight Information 5120-00-277-2291
5120-00-277-2291 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-277-2291 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-277-2291 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-277-2291 is not classified as a special type of cargo when transported by water. 5120-00-277-2291 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
