5120-00-277-1237

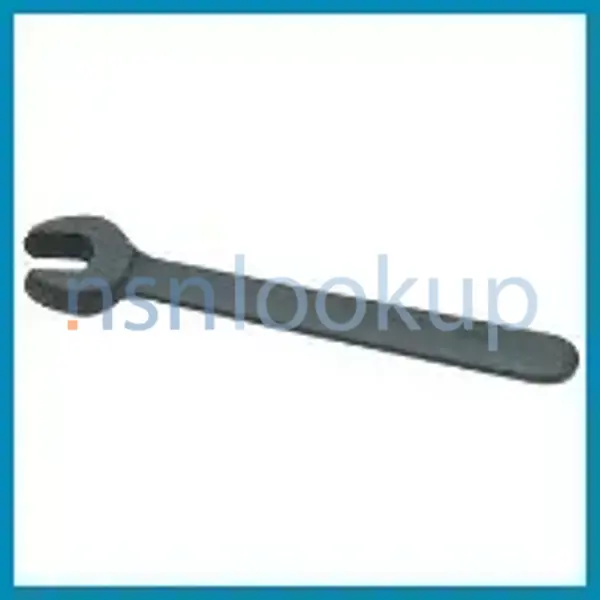

Open End Wrench
5120002771237 002771237 GGG-W-636 GGG-W-636 TY5 31-078 41W1420
A nonadjustable wrench having an open end wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; WRENCH, LINEMAN'S; and WRENCH, BOX AND OPEN END, COMBINATION. View more Open End Wrench
May 2023
11
Marketplace 5120-00-277-1237
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-277-1237 5+ Documents (More...)
GGG-W-636 WRENCH,OPEN END 6 EA NS Request Quotation Updated Every Day 31-078 RQST NE Updated Every Day
Quotation Updated Every Day 31-078 RQST NE Updated Every Day 5120002104961 002104961 GGG-W-636 TY5 8Z970PC6
//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-277-1241 Open End Wrench 5120002771241 002771241 GGG-W-636
Open End Wrench 5120002771237 002771237 GGG-W-636 TY5 31-078 41W1420 A nonadjustable wrench having
//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-288-9293 Open End Wrench 5120002889293 002889293 GGG-W-636
//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-293-1312 Open End Wrench 5120002931312 002931312 GGG-W-636
GGG-W-636 WRENCH,OPEN END 5 EA NS Request Quotation Subscribe to View Vendor Details...
GGG-W-636 WRENCH,OPEN END 6 EA NS Request Quotation Updated Every Day 5120-00-177-6976 RQST NE Updated
288-9287 RQST NE Updated -51/fsc-5120/us 5120-00-449-8164 Open End Wrench 5120004498164 004498164 GGG-W-636
5120002771237 002771237 -277-1237Open End Wrench5120002771237 002771237 GGG-W-636GGG-W-636 TY5 31-078
Restrictions 5120-00-277-1237
5120-00-277-1237 is a Open End Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-277-1237
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-277-1237
- Brazil (YA01)
- Effective Date:
- 1 Aug 2000
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5120-00-277-1237
- Part Number
- Manufacturer
- Status
- GGG-W-636
- Manufacturer
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
- GGG-W-636 TY5
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 31-078
- 636D0 - Apex Tool Group, Llc (Active)
- Secondary Buy
- Secondary Buy
- 41W1420
- 80372 - Marine Corps (Active)
- Secondary Buy
- Secondary Buy
- 31-078
- 08292 - Easco Hand Tools Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 31-078
- 03914 - Armstrong Bros Tool Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-00-277-1237
- Characteristic
- Specifications
- FIIG
- Specifications
- A527Y0
- Hardness Rating [CQFM]
- 40.0 Rockwell C Minimum And 55.0 Rockwell C Maximum
- Head Angle [CRCS]
- 15.0 Degrees Nominal
- Head Thickness [AHML]
- 1.250 Inches Nominal
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 5 Type
- Overall Length [ABHP]
- 21.750 Inches Nominal
- Wrenching Surface Shape [CRWY]
- Oval Single End Internal
- Wrenching Surface Size [AJBR]
- 2.438 Inches Nominal Single End
- Style Designator [STYL]
- Single Head
Similar Supply Items to 5120-00-277-1237
Freight Information 5120-00-277-1237
5120-00-277-1237 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-277-1237 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-277-1237 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-277-1237 is not classified as a special type of cargo when transported by water. 5120-00-277-1237 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
