5120-00-261-2823

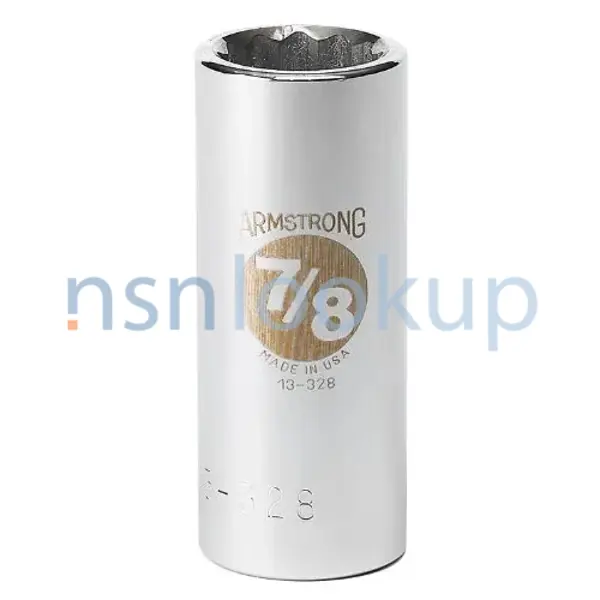

Socket Wrench Socket
5120002612823 002612823 AS954 AS954 TY1CL1STB A-A-1395 13-352 B107.1 TY1CL2 B107.1 B107.1 CL1STB GGG-W-641
An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint. View more Socket Wrench Socket
November 2023
42
Marketplace 5120-00-261-2823
Request a Quotation from participating marketplace vendors
Updated Every 15 Minutes
Updated Every Day
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5120-00-261-2823 5+ Documents (More...)
TY2CL1STB B107.1 CL1STB TY1CL2 IN2816TD GGG-W-641 TY1CL2 IN2816TD GGG-W- 641 TY2CL2STB 7ML GGG-W
TY2CL1STB B107.1 CL1STB TY1CL2 IN2816TD GGG-W-641 TY1CL2 IN2816TD GGG-W- 641 TY2CL2STB 7ML GGG-W-641
TY2CL1STB B107.1 CL1STB TY1CL2 IN2816TD GGG-W-641 TY1CL2 IN2816TD GGG-W-641 TY2CL2STB 7ML GGG-W-
fsc-5120/us 5120-01-430 7ML GGG-W-641 TY2CL1STB B107.1 CL1STB TY1CL2 drive B107.1 TY1CL2 https//www.nsnlookup.com
TY2CL1STB B107.1 CL1STB https drive B107.1 TY1CL2 having an internal TY1CL2 IN2816TD GGG-W-641 TY2CL2STB
7ML GGG-W-641 TY2CL1STB B107.1 CL1STB https drive B107.1 TY1CL2 https// https//www.nsnlookup.com /fsg
TY2CL1STB B107.1 CL1STB TY1CL2 IN2816TD GGG-W-641 TY1CL2 IN2816TD GGG-W- GGG-W-641 TY2CL2STB 7ML
TY1CL1STBB107.1 TY1CL2 7ML GGG-W-641 TY2CL1STB B107.1 CL1STB TY1CL2 drive B107.1 TY1CL2 https//www.nsnlookup.com
GGG-W-641 TY1CL2 IN2816TD GGG-W-641 TY2CL2STB 7ML GGG-W-641 TY2CL1STB B107.1 CL1STB https//www.nsnlookup.com
TY1CL1STBB107.1 TY1CL2 7ML GGG-W-641 TY2CL1STB B107.1 CL1STB TY1CL2 drive B107.1 TY1CL2 https//www.nsnlookup.com
Restrictions 5120-00-261-2823
5120-00-261-2823 is a Socket Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-261-2823
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-261-2823
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- AZBFBD
- US Coast Guard (C014)
- Effective Date:
- 1 Apr 1991
- US Air Force (FGGS)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- GTHD
- Brazil (YA01)
- Effective Date:
- 1 Aug 2000
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Singapore (YJ01)
- Effective Date:
- 1 Nov 2009
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 23 Jul 1998
- Greece (ZU01)
- Effective Date:
- 1 Mar 2008
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5120-00-261-2823
- Part Number
- Manufacturer
- Status
- AS954
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- AS954 TY1CL1STB
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- A-A-1395
- 58536 - Federal Commercial Item Description (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 13-352
- 636D0 - Apex Tool Group, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.1 TY1CL2
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 13-352
- 03914 - Armstrong Bros Tool Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 13-352
- 08292 - Easco Hand Tools Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.1
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.1 CL1STB
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-W-641
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AS954
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete

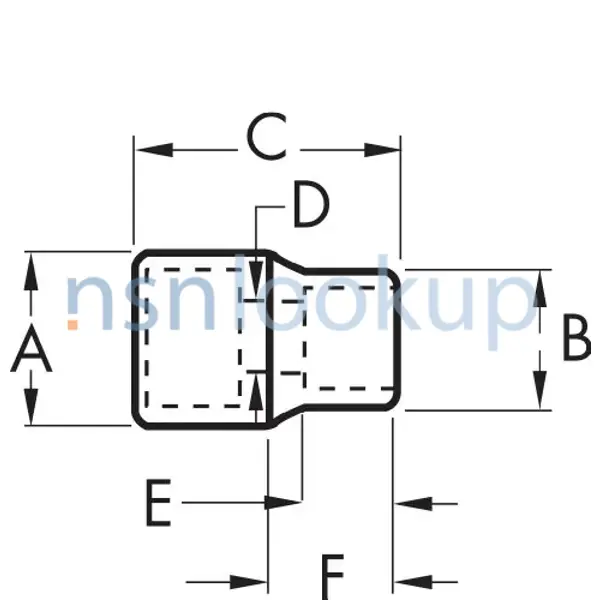

Datasheet 5120-00-261-2823
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End Internal
- Drive Surface Size [ATNC]
- 0.750 Inches Nominal Single End
- Features Provided [CBBL]
- Manual Tool
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Type And 1 Class And B Style
- Overall Length [ABHP]
- 3.379 Inches Minimum
- Wrenching Surface Shape [CRWY]
- 12 Point Single End Internal
- Wrenching Surface Size [AJBR]
- 1.625 Inches Nominal Single End
- Special Markings [MARK]
- 1-5/8 In.
- Specification/Standard Data [ZZZK]
- 81343-Sae As954 Professional/Industrial Association Standard
- Style Designator [STYL]
- Internal-Internal
- Surface Treatment [SFTT]
- Chromium Overall
Management Data 5120-00-261-2823
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
NATO Stock Numbers Related to 5120-00-261-2823
Freight Information 5120-00-261-2823
5120-00-261-2823 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-261-2823 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-261-2823 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-261-2823 is not classified as a special type of cargo when transported by water. 5120-00-261-2823 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
