5120-00-261-2815
Socket Wrench Socket
5120002612815 002612815 AS954 AS954 TY1CL1STB 13-336 GGG-W-641 TY2CL2STA A-A-1395 B107.1 B107.1 CL1STB B107.1 TY1CL2 GGG-W-641

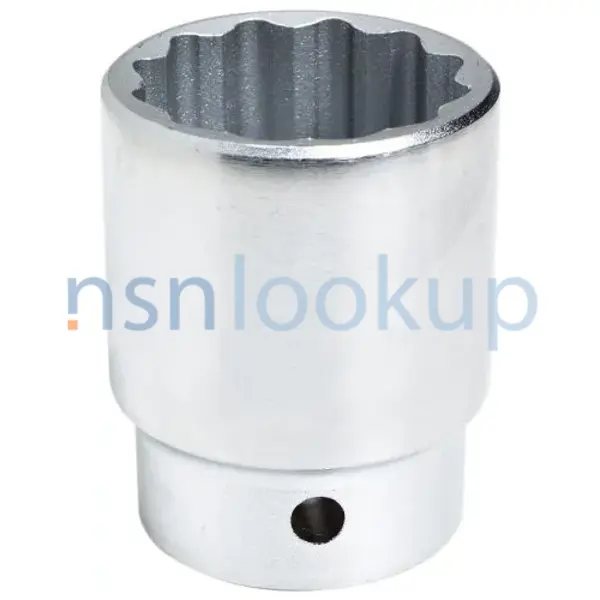

An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint. View more Socket Wrench Socket
November 2023
29
Marketplace 5120-00-261-2815
Request a Quotation from participating marketplace vendors
Updated Every 15 Minutes
Updated Every Day
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5120-00-261-2815 5+ Documents (More...)
TY2CL1STB B107.1 CL1STB https drive B107.1 TY1CL2 having an internal TY1CL2 IN2816TD GGG-W-641 TY2CL2STB
7ML GGG-W-641 TY2CL1STB B107.1 CL1STB https drive B107.1 TY1CL2 https// https//www.nsnlookup.com /fsg
TY2CL1STB B107.1 CL1STB TY1CL2 IN2816TD GGG-W-641 TY1CL2 IN2816TD GGG-W-641 TY2CL2STB 7ML GGG-W-
/fsg-51/fsc-5120/us 5120-00-261-2815 Socket Wrench Socket 5120002612815 002612815 AS954 TY1CL1STB 13-
TY2CL1STB B107.1 CL1STB TY1CL2 IN2816TD GGG-W-641 TY1CL2 IN2816TD GGG-W- 641 TY2CL2STB 7ML GGG-W
/fsg-51/fsc-5120/us 5120-00-261-2815 Socket Wrench Socket 5120002612815 002612815 AS954 TY1CL1STB 13-
TY2CL1STB B107.1 CL1STB TY1CL2 IN2816TD GGG-W-641 TY1CL2 IN2816TD GGG-W- 641 TY2CL2STB 7ML GGG-W
/fsg-51/fsc-5120/us 5120-00-261-2815 Socket Wrench Socket 5120002612815 002612815 AS954 TY1CL1STB 13-
TY2CL1STB B107.1 CL1STB TY1CL2 IN2816TD GGG-W-641 TY1CL2 IN2816TD GGG-W- 641 TY2CL2STB 7ML GGG-W
/fsg-51/fsc-5120/us 5120-00-261-2815 Socket Wrench Socket 5120002612815 002612815 AS954 TY1CL1STB 13-
Restrictions 5120-00-261-2815
5120-00-261-2815 is a Socket Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-261-2815
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-261-2815
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- AZ
- US Air Force (FGGS)
- Effective Date:
- 1 Apr 1991
- NASA (G281)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- NASA (G881)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- GTHD
- Brazil (YA01)
- Effective Date:
- 1 Aug 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5120-00-261-2815
- Part Number
- Manufacturer
- Status
- AS954
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- AS954 TY1CL1STB
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 13-336
- 03914 - Armstrong Bros Tool Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 13-336
- 08292 - Easco Hand Tools Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-W-641 TY2CL2STA
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- A-A-1395
- 58536 - Federal Commercial Item Description (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.1
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 13-336
- 636D0 - Apex Tool Group, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.1 CL1STB
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.1 TY1CL2
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-W-641
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AS954
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete

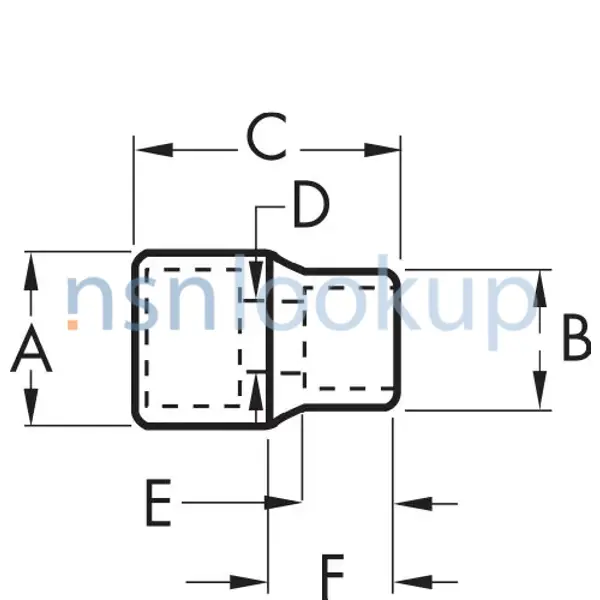

Datasheet 5120-00-261-2815
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Outside Diameter [AHMK]
- 1.680 Inches Maximum
- Drive End Shape [CTCT]
- Square Single End Internal
- Drive Surface Size [ATNC]
- 0.750 Inches Nominal Single End
- Features Provided [CBBL]
- Manual Tool
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Type And 1 Class And B Style
- Overall Length [ABHP]
- 3.346 Inches Minimum
- Wrenching Surface Size [AJBR]
- 1.125 Inches Nominal Single End
- Wrenching End Opening Depth [AJAP]
- 0.656 Inches Minimum
- Wrenching End Outside Diameter [AHMJ]
- 1.680 Inches Maximum
- Wrenching Surface Shape [CRWY]
- 12 Point Single End Internal
- Specification/Standard Data [ZZZK]
- 81343-Sae As954 Professional/Industrial Association Standard
- Style Designator [STYL]
- Internal-Internal
- Surface Treatment [SFTT]
- Chromium Overall
Management Data 5120-00-261-2815
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Aug 2018
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- V
- Discontinued Without Replacement
- V
Navy
- Cognizance:
- 9Q
NATO Stock Numbers Related to 5120-00-261-2815
Freight Information 5120-00-261-2815
5120-00-261-2815 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-261-2815 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-261-2815 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-261-2815 is not classified as a special type of cargo when transported by water. 5120-00-261-2815 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
