5120-00-243-7344

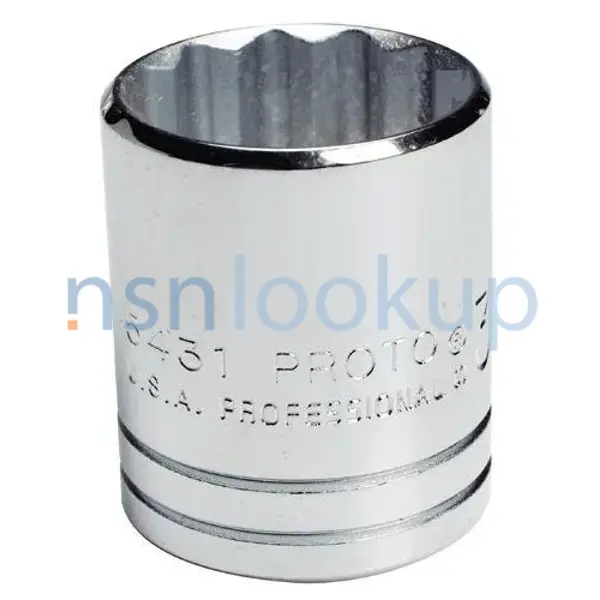

Socket Wrench Socket
5120002437344 002437344 B107.1 B107.1 TY1CL2 5425 B107.1 CL1STB GGG-W-641 TY2CL2STB GGG-W-641
An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint. View more Socket Wrench Socket
May 2023
31
Marketplace 5120-00-243-7344
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-243-7344 5+ Documents (More...)
B107.1 CL1STB An item having an internal drive B107.1 TY1CL2 IN2816TD GGG-W-641 TY2CL2STB drive B107.1
7ML GGG-W-641 internal drive B107.1 TY1CL2 IN2816TD GGG-W -641 TY2CL2STB GGG-W-641 TY2CL2STB 7ML GGG-W
TY2CL1STBB107.1 CL1STB TY1CL2 drive B107.1 TY1CL2 TY1CL2 IN2816TD GGG-W -641 TY2CL2STB 7ML GGG-W
/fsg-51/fsc-5120/us 5120-00-243-7344 Socket Wrench Socket 5120002437344 002437344 B107.1 TY1CL2 5425
TY2CL1STBB107.1 CL1STB TY1CL2 drive B107.1 TY1CL2 TY1CL2 IN2816TD GGG-W -641 TY2CL2STB 7ML GGG-W
/fsg-51/fsc-5120/us 5120-00-243-7344 Socket Wrench Socket 5120002437344 002437344 B107.1 TY1CL2 5425
B107.1 CL1STB An item having an internal drive B107.1 TY1CL2 IN2816TD GGG-W-641 TY2CL2STB https//www.nsnlookup.com
Socket Wrench Socket 5120002437344 002437344 B107.1 TY1CL2 5425 B107.1 CL1STB GGG-W-641 TY2CL2STB
TY2CL1STBB107.1 CL1STB TY1CL2 drive B107.1 TY1CL2 TY1CL2 IN2816TD GGG-W -641 TY2CL2STB 7ML GGG-W
/fsg-51/fsc-5120/us 5120-00-243-7344 Socket Wrench Socket 5120002437344 002437344 B107.1 TY1CL2 5425
Restrictions 5120-00-243-7344
5120-00-243-7344 is a Socket Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5120-00-243-7344
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-243-7344
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Feb 1999
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5120-00-243-7344
- Part Number
- Manufacturer
- Status
- B107.1
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Reference
- Incomplete Reference
- 5425
- 93389 - Stanley-Proto Industrial Works Div (Obsolete)
- Original Design
- Original Design
- B107.1 TY1CL2
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- B107.1 CL1STB
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-W-641 TY2CL2STB
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5425
- 47805 - Ingersoll-Rand Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-W-641
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-00-243-7344
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Outside Diameter [AHMK]
- 1.093 Inches Maximum
- Drive End Shape [CTCT]
- Square Single End Internal
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Single End
- Features Provided [CBBL]
- Manual Tool
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Type And 2 Class
- Overall Length [ABHP]
- 3.000 Inches Minimum
- Special Markings [MARK]
- 25/32 In.
- Wrenching End Opening Depth [AJAP]
- 0.453 Inches Minimum
- Wrenching End Outside Diameter [AHMJ]
- 1.093 Inches Maximum
- Wrenching Surface Shape [CRWY]
- 12 Point Single End Internal
- Wrenching Surface Size [AJBR]
- 0.781 Inches Nominal Single End
- Specification/Standard Data [ZZZK]
- 05047-Asme B107.1 Professional/Industrial Association Standard
- Style Designator [STYL]
- Internal-Internal
- Surface Treatment [SFTT]
- Chromium Overall
NATO Stock Numbers Related to 5120-00-243-7344
Freight Information 5120-00-243-7344
5120-00-243-7344 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-243-7344 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5120-00-243-7344 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-243-7344 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-243-7344 is not classified as a special type of cargo when transported by water. 5120-00-243-7344 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
