5120-00-243-1675
Socket Wrench Screwdriver Attachment
5120002431675 002431675 GGG-W-641 GGG-W-641 TY4CL3STB 12-715 SA-12 172396PC4 AS612 AL12
An attachment designed to fit over the square external drive end of a HANDLE, SOCKET WRENCH; WRENCH, TORQUE; and the like consisting of one or two-piece configuration having a screw driving tip on one end. Excludes BIT, SCREWDRIVER. View more Socket Wrench Screwdriver Attachment
May 2023
41
Marketplace 5120-00-243-1675
Request a Quotation from participating marketplace vendors
Updated Every Day
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5120-00-243-1675 5+ Documents (More...)
GGG-W-641 SCREWDRIVER ATTACHMENT,SOCKET WRENCH 24 EA NS Request Quotation Updated Every Day 12-715 RQST
GGG-W-641 TY4CL3STB An attachment https//www.nsnlookup.com /fsg https//www.nsnlookup.com /fsg-51/fsc
TY4CL3STB An attachment designed to fit over the square external drive end of a HANDLE GGG-W-641
,45910 GGG-W-641 TY4CL3STB 1417205 An attachment designed to fit over the square external drive
Socket Wrench Screwdriver Attachment GGG-W-641 TY4CL3STB An attachment designed to fit over the
GGG-W-641 TY4CL3STB An attachment designed to fit over the square external drive end of a HANDLE
/www.nsnlookup.com /fsg-63/fsc-6350/it 6350-15-187-4745 Avvisatore Acustico 6350151874745151874745 AS612
to enable JavaScript in your web browser . 6350-01-664-0237Signal Horn6350016640237 016640237 ATS AS612
RQST NE Related Documents https//www.nsnlookup.com https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-243-1675
Socket Wrench Screwdriver Attachment 6350151874745151874745 AS612 to enable JavaScript in your
Restrictions 5120-00-243-1675
5120-00-243-1675 is a Socket Wrench Screwdriver Attachment that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-243-1675
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-243-1675
- Brazil (YA01)
- Effective Date:
- 1 Aug 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 2003
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Mar 2016
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5120-00-243-1675
- Part Number
- Manufacturer
- Status
- GGG-W-641
- Manufacturer
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
- GGG-W-641 TY4CL3STB
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 12-715
- 636D0 - Apex Tool Group, Llc (Active)
- Secondary Buy
- Secondary Buy
- SA-12
- 8Z799 - Williams J H Industrial Products Inc (Active)
- Secondary Buy
- Secondary Buy
- 172396PC4
- 10001 - Navair And Navsea Managed Original (Active)
- Secondary Buy
- Secondary Buy
- 12-715
- 08292 - Easco Hand Tools Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 12-715
- 03914 - Armstrong Bros Tool Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AS612
- 65814 - Trw Inc Hand Tools Div Trw (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- AL12
- 70276 - Allen Mfg Co Sub Of Chicago (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete

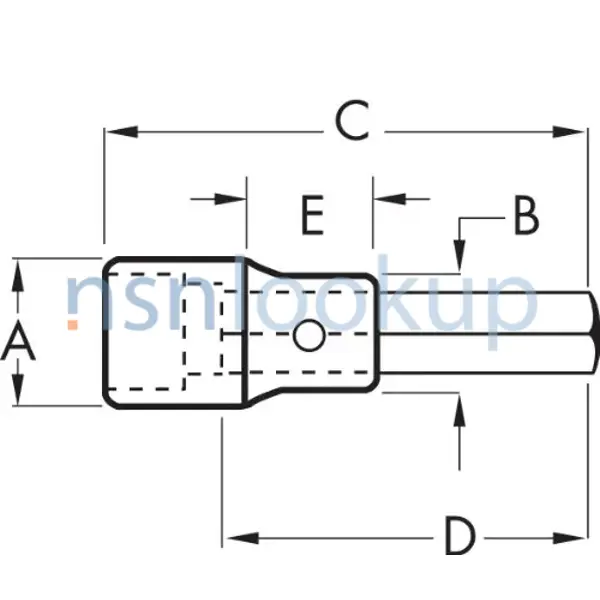

Datasheet 5120-00-243-1675
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Single End
- Blade Length [AEAE]
- 1.562 Inches Nominal
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 4 Type And 3 Class And B Style
- Outside Diameter [ABKV]
- 0.937 Inches Nominal
- Overall Length [ABHP]
- 2.437 Inches Nominal
- Wrenching Surface Shape [CRWY]
- Hexagon Single End External
- Wrenching Surface Size [AJBR]
- 0.375 Inches Nominal Single End
- Style Designator [STYL]
- Hexagon
- Surface Treatment [SFTT]
- Chromium Overall And Nickel Overall And Oxide Overall
Similar Supply Items to 5120-00-243-1675
Freight Information 5120-00-243-1675
5120-00-243-1675 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-243-1675 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-243-1675 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-243-1675 is not classified as a special type of cargo when transported by water. 5120-00-243-1675 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
