5120-00-243-1351
Pin Vise
5120002431351 002431351 162D 5120-00-243-1351 50602 GGG-V-412 GGG-V-412 TY2CL1 48-211D

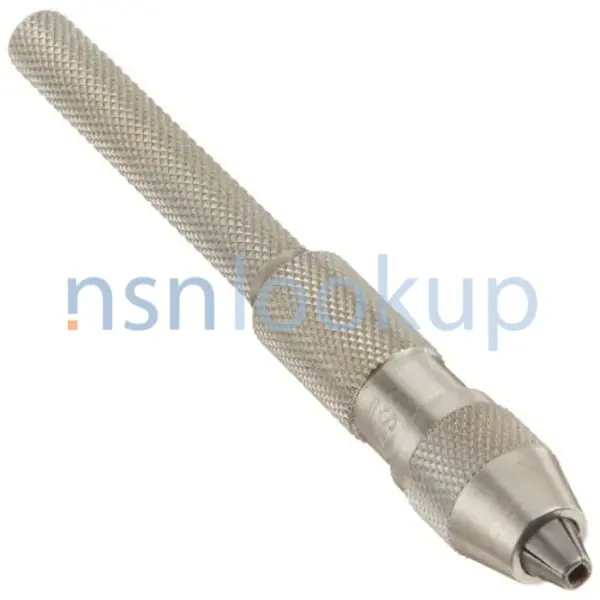

A clamping device used to hold small items which are usually round. The device consists of a hollow handle having a chuck at one or both ends. The longitudinal axis of the hollow handle is in alignment with that of the chuck(s). View more Pin Vise
May 2023
28
Marketplace 5120-00-243-1351
Request a Quotation from participating marketplace vendors
162D RQST NE
50602 RQST NE
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5120-00-243-1351 5+ Documents (More...)
... 5120-00-243-1351 VISE,PIN RQST NS Request Quotation Updated Every Day Search Global Test Supply 162D
RQST NE Updated Every Day Search Global Test Supply 50602 RQST NE Updated Every Day 5120-00-243-1351
5120 https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-243-1349 Pin Vise 5120002431349 002431349 GGG-V-412
Pin Vise 5120002431351 002431351,162D GGG-V-412 TY2CL1 48-211D A clamping device used to hold small
TY2CL1 48-211A A clamping device used to hold small items which are usually GGG-V-412 TY2CL1 44 https
//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-243-1351 Pin Vise 5120002431351 002431351,162D GGG-V-
device used to hold small items which are usually GGG-V-412 TY2CL1 44 https https//www.nsnlookup.com
GGG-V-412 TY2CL1 44 A clamping device used to hold small items which are usually round.
TY2CL1 A group of GGG-V-412 TY2CL1 44 A clamping device used to hold small items which are usually
TY2CL1 48-211D GGG-V-412 TY2CL1 44 A clamping device used to hold small items which are usually TY2CL1
Restrictions 5120-00-243-1351
5120-00-243-1351 is a Pin Vise that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-243-1351
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-243-1351
- US Air Force (FGGS)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- NASA (G861)
- Effective Date:
- 1 Apr 1991
- NASA (G881)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- GTHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW01)
- Effective Date:
- 1 Sep 2008
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5120-00-243-1351
- Part Number
- Manufacturer
- Status
- 162D
- Manufacturer
- 57163 - L.S. Starrett Company (The) (Active)
- Primary Buy
- Primary Buy
- 5120-00-243-1351
- 80244 - General Services Administration (Active)
- Primary Buy
- Primary Buy
- 50602
- 57163 - L.S. Starrett Company (The) (Active)
- Secondary Buy
- Secondary Buy
- GGG-V-412
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-V-412 TY2CL1
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 48-211D
- 09496 - Buffalo Dental Manufacturing Co Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete

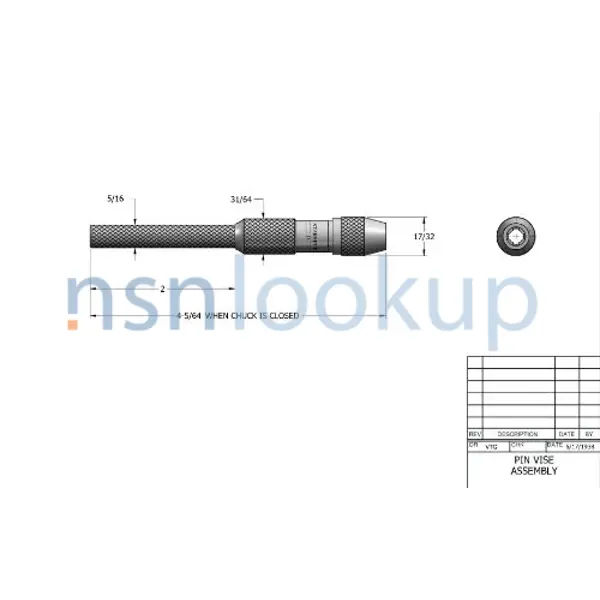

Datasheet 5120-00-243-1351
- Characteristic
- Specifications
- FIIG
- Specifications
- A568S0
- Chuck Range [BQDJ]
- +0.115 To 0.187 Inches
- Overall Length [ABHP]
- 4.250 Inches Maximum
- Special Features [FEAT]
- Metal Handle; Knurled
- Unit Type [APQB]
- Single End
Management Data 5120-00-243-1351
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Feb 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
Similar Supply Items to 5120-00-243-1351
Freight Information 5120-00-243-1351
5120-00-243-1351 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-243-1351 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-243-1351 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-243-1351 is not classified as a special type of cargo when transported by water. 5120-00-243-1351 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
