5120-00-240-5215
Screw Extractor
5120002405215 002405215 B107.410 B107.410 CAT 46 TY2 806423 EXL9 2563A23 65023 C53659 B107.46 TY2 A-A-283 GGG-E-936 A-A-3021 GGG-E-936 TY1CL1STASZ9 B107.46

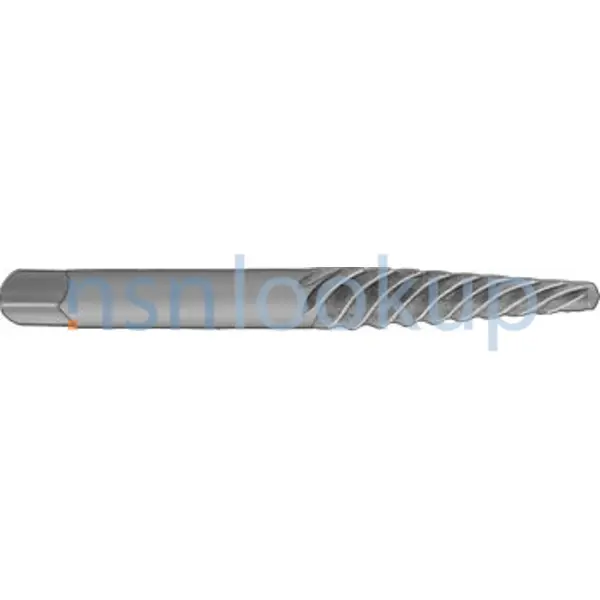

A hand tool used for removing threaded ends of broken screws, studs, bolts, pipe fittings and pipe which do not protrude sufficiently to remove them by gripping externally. Excludes square tang straight type, straight fluted items rated to extract pipe items only, and EXTRACTOR, TAP. View more Screw Extractor
November 2023
44
Marketplace 5120-00-240-5215
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-240-5215 5+ Documents (More...)
GGG-E-936 TY1CL1STASZ9 B107.46 A hand tool used for removing threaded ends of broken screws, studs,
CAT 46 TY2 EXL69 TY4 GGG-E-936 TY1CL2 GGG-E A group B107.410 CAT 46 TY2 EXL69 TY4 GGG-E A-A-3021B107.46
A group B107.410 CAT 46 TY2 EXL69 2563A29 1818 3021A-A-3021 CL2 B107.46 A group B107.410 A group B107.410
CAT 46 TY2 EXL69 TY4 GGG-E-936 TY1CL2 GGG-E A group B107.410 CAT 46 TY2 EXL69 TY4 GGG-E A-A-3021B107.46
65017 A-A-3021GGG-E B107.46 A group B107.410 CAT 46 TY2 EXL69 2563A29 https//www.nsnlookup.com https
CAT 46 TY2 EXL69 TY4 GGG-E-936 TY1CL2 GGG-E A group B107.410 CAT 46 TY2 EXL69 TY4 GGG-E 5120-00-240-
-5215 Screw Extractor 5120002405215 002405215 B107.410 CAT 46 TY2 806423 EXL9 2563A23 65023 C53659 B107.46
Extractor 5120002405220 002405220 B107.410 CAT 46 TY2 EXL6 2563A17 SE61706 GGG-E-936 TY1CL1STASZ6 B107.46
936 A-A-283 B107.46 TY2 A hand tool used for removing threaded ends of broken screws, studs, bolts, pipe
EXL69 TY4 GGG-E-936 TY1CL2 GGG-E A group B107.410 CAT 46 TY2 EXL69 TY4 GGG-E A-A-3021B107.46 TY2GGG-E
Restrictions 5120-00-240-5215
5120-00-240-5215 is a Screw Extractor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-240-5215
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-240-5215
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- AJCTBFAZ
- US Air Force (FGGS)
- Effective Date:
- 1 Apr 1991
- NASA (G061)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- GTHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Poland (WP01)
- Effective Date:
- 1 Jan 2005
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Dec 1999
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5120-00-240-5215
- Part Number
- Manufacturer
- Status
- B107.410
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Reference
- Incomplete Reference
- B107.410 CAT 46 TY2
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 806423
- 0AHP5 - Curtiss-Wright Controls, Inc. (Active)
- Secondary Buy
- Secondary Buy
- EXL9
- 2T930 - Michigan Drill Inc (Active)
- Secondary Buy
- Secondary Buy
- 2563A23
- 39428 - Mcmaster-Carr Supply Co (Active)
- Secondary Buy
- Secondary Buy
- 65023
- 60NQ9 - Greenfield Industries Inc (Active)
- Secondary Buy
- Secondary Buy
- C53659
- 60NQ9 - Greenfield Industries Inc (Active)
- Secondary Buy
- Secondary Buy
- B107.46 TY2
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- A-A-283
- 58536 - Federal Commercial Item Description (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-E-936
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- A-A-3021
- 58536 - Federal Commercial Item Description (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-E-936 TY1CL1STASZ9
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.46
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 65023
- 1NEX4 - Kennametal Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- C53659
- 1NEX4 - Kennametal Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-00-240-5215
- Characteristic
- Specifications
- FIIG
- Specifications
- T294-P
- Drill [BTQD]
- Not Included
- Drill Guide [BTQC]
- Not Included
- Flute Design [AQWG]
- Spiral
- Flute Type [AQWH]
- Drill
- Nondefinitive Spec/Std Data [ZZZT]
- 2 Type
- Left-Hand Screw Provision [BTPZ]
- Not Included
- Screw Size [BTQF]
- 1.750 Inches Minimum And 2.125 Inches Maximum
- Sliding Turnout Nut [BTQB]
- Not Included
- Pipe Size [BTQG]
- 1.000 Inches Nominal
- Unit Type [APQB]
- Tapered
- Specification/Standard Data [ZZZK]
- 05047-Asme B107.46 Professional/Industrial Association Standard
Management Data 5120-00-240-5215
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
