5120-00-237-8256
Digging And Tamping Bar
5120002378256 002378256 02701 16510 A-A-2567 GGG-B-101 TY6CL1SZ1 GGG-B-101
Before using, refer to Reference Drawing Group AG. View more Digging And Tamping Bar
January 2023
10
Marketplace 5120-00-237-8256
Request a Quotation from participating marketplace vendors
Updated Every 15 Minutes
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5120-00-237-8256 5+ Documents (More...)
Every Day 5120-00-237-8256 RQST NE Updated Every Day 5120-00-237-8256 RQST Updated Every Day 5120-00
Restrictions 5120-00-237-8256 DEMIL: A | DEMILI : | CRITICALITY : X | HMIC : N | PMIC : A | EDC
Restrictions 5120-00-237-8256
5120-00-237-8256 is a Digging And Tamping Bar that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-237-8256
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-237-8256
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- AJCL
- US Coast Guard (C014)
- Effective Date:
- 1 Apr 1991
- US Air Force (FGGS)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Jan 2014
- Supplementary Collaborators:
- GG
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1996
- Greece (ZU01)
- Effective Date:
- 1 Mar 2008
Approved Sources 5120-00-237-8256
- Part Number
- Manufacturer
- Status
- 16510
- Manufacturer
- 79202 - Warwood Tool Company (Obsolete)
- Original Design
- Original Design
- 02701
- 66080 - Wilton Corp (Active)
- Secondary Buy
- Secondary Buy
- A-A-2567
- 58536 - Federal Commercial Item Description (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-B-101 TY6CL1SZ1
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-B-101
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-00-237-8256
- Characteristic
- Specifications
- FIIG
- Specifications
- A537W0
- Material [MATT]
- Steel
- Outside Diameter [ABHR]
- 1.000 Inches Nominal
- Overall Length [ABHP]
- 68.500 Inches Minimum And 73.000 Inches Maximum

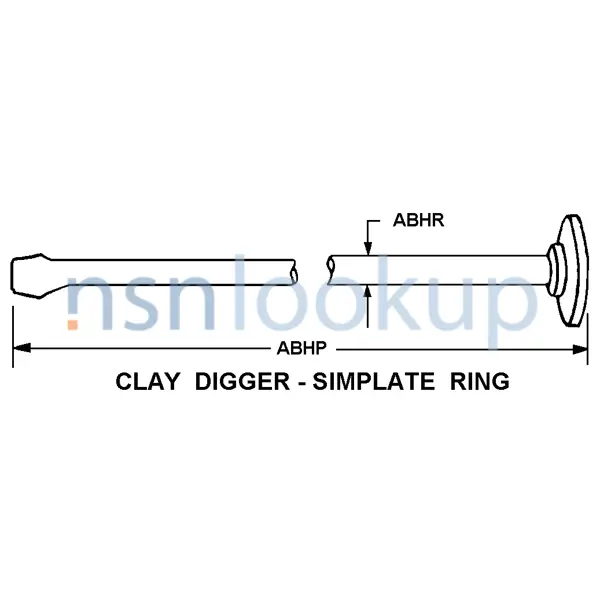

- Style Designator [STYL]
- Clay Digger - Simplate Ring
Management Data 5120-00-237-8256
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- D
- Durable item.An item of Army property coded with an ARC of D in the AMDF. Durable items do not require property book accountability after issue from the stock record account but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded D in the AMDF are considered durable items.
Navy
- Cognizance:
- 9Q
Similar Supply Items to 5120-00-237-8256
Freight Information 5120-00-237-8256
5120-00-237-8256 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-237-8256 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-237-8256 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-237-8256 is not classified as a special type of cargo when transported by water. 5120-00-237-8256 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
