5120-00-224-4664

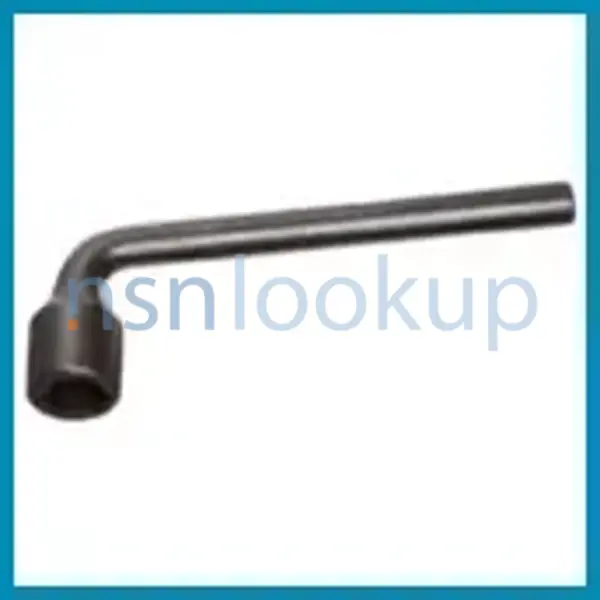

Socket Wrench
5120002244664 002244664 GGG-W-641 GGG-W-641 TY1CL1 35-2675 263D
A wrench consisting of one or more sockets, integral with shank(s) or body. It may not be furnished with a handle when the handle is removable or when it is the "double end socket" and "single socket bar" types, each designed for use with the other or similar items. Excludes SOCKET, SOCKET WRENCH. View more Socket Wrench
May 2023
19
Marketplace 5120-00-224-4664
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-224-4664 5+ Documents (More...)
GGG-W-641 WRENCH,SOCKET 24 EA NS Request Quotation Subscribe to View Vendor Details... 5120-00-224-4664
/fsc-5120/us 5120-00-224-2534 Socket Wrench 5120002242534 002242534 GGG-W-641 TY1CL1 A wrench https https
https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-293-0143 Socket Wrench 5120002930143 002930143 GGG-W-641
https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-224-4664 Socket Wrench 5120002244664 002244664
https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-224-2533 Socket Wrench 5120002242533 002242533 GGG-W-641
https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-278-7586 Socket Wrench 5120002787586 002787586 GGG-W-641
https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-227-7416 Socket Wrench 5120002277416 002277416 GGG-W-641
https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-224-2548 Socket Wrench 5120002242548 002242548 GGG-W-641
https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-224-2548 Socket Wrench 5120002242548 002242548 GGG-W-641
https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-224-2533 Socket Wrench 5120002242533 002242533 GGG-W-641
Restrictions 5120-00-224-4664
5120-00-224-4664 is a Socket Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-224-4664
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-224-4664
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- Brazil (YA01)
- Effective Date:
- 1 Aug 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5120-00-224-4664
- Part Number
- Manufacturer
- Status
- GGG-W-641
- Manufacturer
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
- GGG-W-641 TY1CL1
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 35-2675
- 05506 - Martin Sprocket And Gear Inc (Active)
- Secondary Buy
- Secondary Buy
- 263D
- 05506 - Martin Sprocket And Gear Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 263D
- 65814 - Trw Inc Hand Tools Div Trw (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-00-224-4664
- Characteristic
- Specifications
- FIIG
- Specifications
- A527Y0
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Type And 1 Class
- Offset Height [AJAT]
- 0.938 Inches Minimum
- Overall Length [ABHP]
- 4.250 Inches Minimum
- Wrenching Surface Shape [CRWY]
- Hexagon Single End Internal
- Wrenching Surface Size [AJBR]
- 0.438 Inches Nominal Single End
- Style Designator [STYL]
- Single Socket Offset
- Surface Treatment [SFTT]
- Chromium Overall
Management Data 5120-00-224-4664
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jan 2013
- Department of the Army (DA)
- EA
- Subscribe
- 6
- EA
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- D
- Durable item.An item of Army property coded with an ARC of D in the AMDF. Durable items do not require property book accountability after issue from the stock record account but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded D in the AMDF are considered durable items.
Similar Supply Items to 5120-00-224-4664
Freight Information 5120-00-224-4664
5120-00-224-4664 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-224-4664 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-224-4664 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-224-4664 is not classified as a special type of cargo when transported by water. 5120-00-224-4664 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
