5120-00-203-4766
Socket Wrench
5120002034766 002034766 GGG-W-644 GGG-W-644 TY1SZ10 35695 T95 FRS T95
A wrench consisting of one or more sockets, integral with shank(s) or body. It may not be furnished with a handle when the handle is removable or when it is the "double end socket" and "single socket bar" types, each designed for use with the other or similar items. Excludes SOCKET, SOCKET WRENCH. View more Socket Wrench
May 2023
21
Marketplace 5120-00-203-4766
Request a Quotation from participating marketplace vendors
Updated Every Day
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5120-00-203-4766 5+ Documents (More...)
WRENCH,SOCKET RQST NS Request Quotation Updated Every Day FRS T95 RQST NE Updated Every Day 5120-00-
Every Day FRS T95 RQST NE Updated Every https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-604-3686
BUY NE FedMall Updated Every Day FRS T95 RQST NE Updated Every Day 5120-01-604-3686 RQST NE Updated BUY
NE FedMall Updated Every Day FRS T95 RQST NE Updated Every Day 5120-01-604-3686 RQST NE Updated FRS
7010-99-702-1791 Dig Computer System 7010997021791 997021791 Thickness Gage 5210150688041150688041,T95
https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-604-3686 Socket Wrench 5120016043686 016043686,T95
https//www.nsnlookup.com /fsg-52/fsc-5210/it 5210-15-068-8041 Thickness Gage 5210150688041150688041,T95
https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-01-604-3686 Socket Wrench 5120016043686 016043686,T95
enable JavaScript in your web browser . 5836-15-183 -0045Camerarecordingvide5836151830045 151830045TDP-T95
https//www.nsnlookup.com /fsg-52/fsc-5210/it 5210-15-068-8041 Thickness Gage 5210150688041 150688041,T95
Restrictions 5120-00-203-4766
5120-00-203-4766 is a Socket Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-203-4766
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-203-4766
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- AMAZ
- US Air Force (FGGS)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- NASA (G881)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- GTJNHD
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5120-00-203-4766
- Part Number
- Manufacturer
- Status
- GGG-W-644
- Manufacturer
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
- GGG-W-644 TY1SZ10
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 35695
- 75204 - Summit Tool Company (Active)
- Secondary Buy
- Secondary Buy
- T95
- 75204 - Summit Tool Company (Active)
- Secondary Buy
- Secondary Buy
- FRS T95
- 55719 - Idsc Holdings Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-00-203-4766
- Characteristic
- Specifications
- FIIG
- Specifications
- A527Y0
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Type And 10 Size
- Overall Length [ABHP]
- 27.000 Inches Minimum
- Special Features [FEAT]
- Automotive Lug Nut Wrench
- Wrenching Surface Size [AJBR]
- 1.063 Inches Nominal Second End
- Wrenching Surface Size [AJBR]
- 1.250 Inches Nominal Third End
- Wrenching Surface Size [AJBR]
- 1.500 Inches Nominal Fourth End
- Wrenching Surface Shape [CRWY]
- Hexagon Third End Internal
- Wrenching Surface Shape [CRWY]
- Hexagon Fourth End Internal
- Wrenching Surface Shape [CRWY]
- Hexagon Second End Internal
- Wrenching Surface Shape [CRWY]
- Square First End Internal
- Wrenching Surface Size [AJBR]
- 0.812 Inches Nominal First End

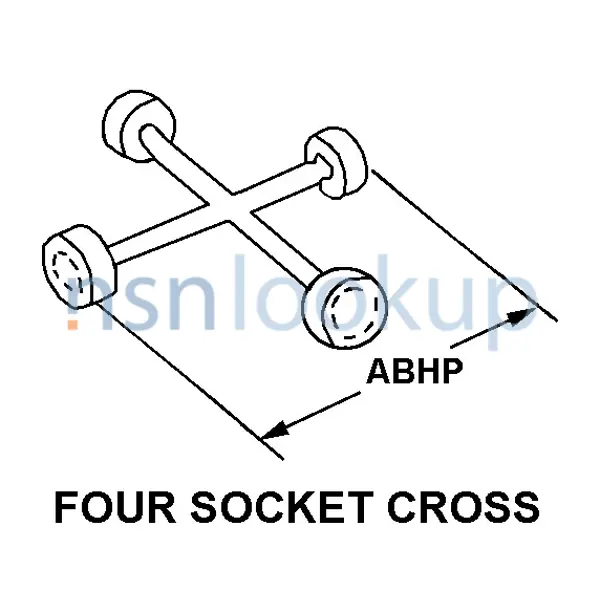

- Style Designator [STYL]
- Four Socket Cross
Management Data 5120-00-203-4766
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- D
- Durable item.An item of Army property coded with an ARC of D in the AMDF. Durable items do not require property book accountability after issue from the stock record account but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded D in the AMDF are considered durable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
Similar Supply Items to 5120-00-203-4766
Freight Information 5120-00-203-4766
5120-00-203-4766 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-203-4766 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-203-4766 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-203-4766 is not classified as a special type of cargo when transported by water. 5120-00-203-4766 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
