5120-00-189-7935

Socket Wrench Socket

5120001897935 001897935 AS954 AS954 TY1CL1STA 11677025-6 GGG-W-641 TY2CL2STA 41W3025 ST1230 A-A-1399 B107.1 B107.1 CL1STA B107.1 TY1CL1 10424452

An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint. View more Socket Wrench Socket

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
November 2023

NATO Update Count
89

NATO Data Quality

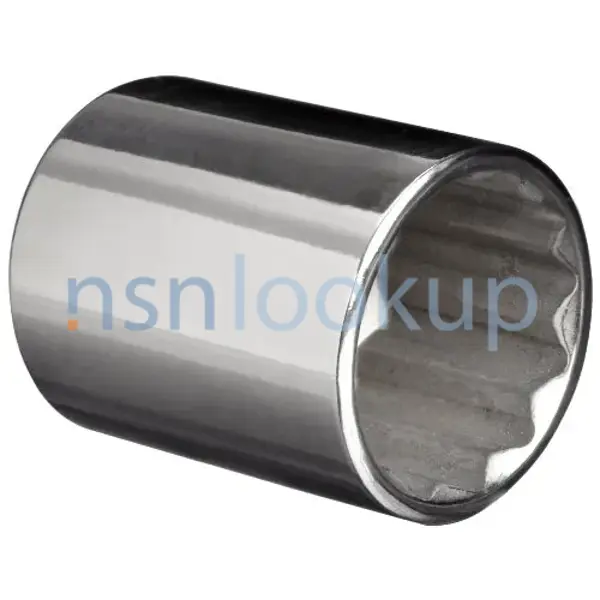

5120-00-189-7935 SOCKET,SOCKET WRENCH 5120001897935 001897935 1/3 — 5120-00-189-7935 Photo 1/3

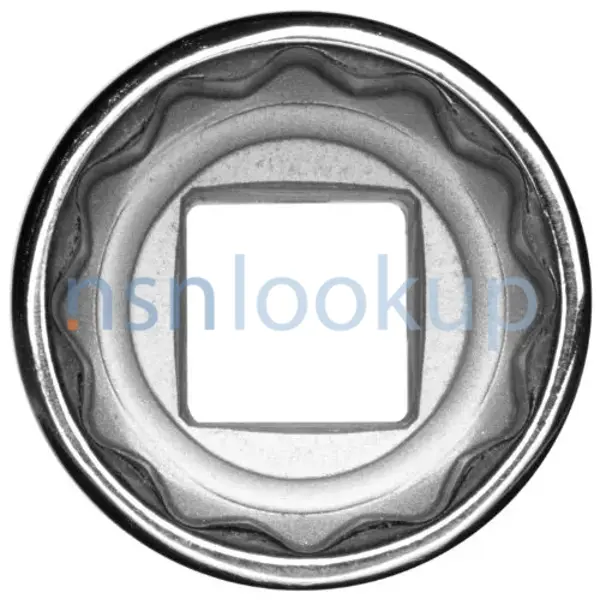

5120-00-189-7935 SOCKET,SOCKET WRENCH 5120001897935 001897935 2/3 — 5120-00-189-7935 Photo 2/3

STYL Style 168 for 5120-00-189-7935 3/3 — NSN 5120-00-189-7935 (Identification) 3/3

Marketplace 5120-00-189-7935

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

11677025-6 SOCKET,SOCKET WRENCH RQST NS

A-A-1399 SOCKET,SOCKET WRENCH RQST NS

Subscribe to View Vendor Details...

AS954 SOCKET,SOCKET WRENCH 1 EA NS

Subscribe to View Vendor Details...

AS954 SOCKET,SOCKET WRENCH 300 EA NS

Subscribe to View Vendor Details...

B107.1 SOCKET,SOCKET WRENCH 10 EA NS

B107.1CL1STA SOCKET,SOCKET WRENCH 10 EA NS

Subscribe to View Vendor Details...

AS954 SOCKET,SOCKET WRENCH 6 EA NS

Subscribe to View Vendor Details...

5120-00-189-7935 SOCKET,SOCKET WRENCH RQST NS

Updated Every 15 Minutes

5120-00-189-7935 BUY NE

Updated Every Day

5120-00-189-7935 RQST NE

Updated Every Day

5120-00-189-7935 RQST

Updated Every Day

5120-00-189-7935 RQST NE

Restrictions 5120-00-189-7935

5120-00-189-7935 is a Socket Wrench Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5120-00-189-7935

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5120-00-189-7935

US Army (A192)
Effective Date:: 1 Apr 1991
Supplementary Receivers:: AJCLBFBDAZAM; AMC 0 AMSC 0 IMC Z IMCACTY CD

US Coast Guard (C014)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0

MOE Rule:: D752
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0

US Air Force (FGGS)
Effective Date:: 1 Apr 1991
Supplementary Receivers:: TT; AMC 0 AMSC 0 IMC Z IMCACTY TG

NASA (G101)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0

NASA (G121)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0

NASA (G751)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0

NASA (G861)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0

NASA (G901)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0

US Marine Corps (MC14)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 IMC Z IMCACTY PA

US Navy (N9QG)
Effective Date:: 1 Apr 1991
Supplementary Collaborators:: GBKEJSJNJFHXHSHDGE
Supplementary Receivers:: JV; AMC 0 AMSC 0 IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Lithuania (WI01)
Effective Date:: 1 Feb 2001

Poland (WP01)
Effective Date:: 1 Dec 2004

Brazil (YA01)
Effective Date:: 1 Dec 1999

Spain (YB01)
Effective Date:: 1 Apr 1991

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Malaysia (YW01)
Effective Date:: 1 Apr 1991

Thailand (YY01)
Effective Date:: 1 Feb 2015

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Netherlands (ZN01)
Effective Date:: 1 Dec 1993

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Aug 1993

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Sep 2004

Approved Sources 5120-00-189-7935

Part Number
Manufacturer
Status
AS954: 0U583 - Sae International (Active); Incomplete Reference; RNCC 3 RNVC 1 DAC 4
AS954 TY1CL1STA: 80244 - General Services Administration (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 6
11677025-6: 19207 - U S Army Tank Automotive Command (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 1
ST1230: 05506 - Martin Sprocket And Gear Inc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
GGG-W-641 TY2CL2STA: 80244 - General Services Administration (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
41W3025: 95683 - General Stores Supply Office (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
ST1230: 65814 - Trw Inc Hand Tools Div Trw (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
A-A-1399: 58536 - Federal Commercial Item Description (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
B107.1: 05047 - The American Society Of Mechanical (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
B107.1 CL1STA: 80244 - General Services Administration (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
B107.1 TY1CL1: 80244 - General Services Administration (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
AS954: 81343 - Society Of Automotive Engineers Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
10424452: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
11677025-6: T0720 - Fnss Savunma Sistemleri Anonim (Active); Related NATO Reproduction; RNCC 8 RNVC 1 DAC 1

Datasheet 5120-00-189-7935

Characteristic
Specifications
FIIG: A102A0
Drive End Outside Diameter [AHMK]: 1.300 Inches Maximum
Drive End Shape [CTCT]: Square Single End Internal
Drive Surface Size [ATNC]: 0.500 Inches Nominal Single End
Environmental Attribute Code [ENAC]: Plastics Removal In The Marine Environment (Prime) Product
Features Provided [CBBL]: Manual Tool
Material [MATT]: Steel Overall
Nondefinitive Spec/Std Data [ZZZT]: 1 Type And 1 Class And A Style
Overall Length [ABHP]: 1.760 Inches Maximum
Wrenching End Opening Depth [AJAP]: 0.535 Inches Minimum
Wrenching End Outside Diameter [AHMJ]: 1.300 Inches Maximum
Wrenching Surface Shape [CRWY]: 12 Point Single End Internal
Wrenching Surface Size [AJBR]: 0.938 Inches Nominal Single End
Specification/Standard Data [ZZZK]: 81343-Sae As954 Professional/Industrial Association Standard
Style Designator [STYL]: Internal-Internal
Surface Treatment [SFTT]: Chromium Overall

Management Data 5120-00-189-7935

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Jan 2023: US Coast Guard (GP); EA; Subscribe; 6
Mar 2022: US Coast Guard (GP); EA; Subscribe; 6
Jul 2019: Department of the Air Force (DF); EA; Subscribe; 6

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
US Marine Corps (DM): M; 4; Reversal Of Phrase Code A 5120-00-237-0986

Army

Materiel Category and Inventory Manager:

E: General Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9Q

Special Material Content:

9: Non-Hazardous or Non-Sensitive Item

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

2: Non-Critical Repair Part

Echelon Management:

02

Operational Test:

: No Special Procedures

Similar Supply Items to 5120-00-189-7935

Freight Information 5120-00-189-7935

5120-00-189-7935 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-189-7935 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-189-7935 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-189-7935 is not classified as a special type of cargo when transported by water. 5120-00-189-7935 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
