5120-00-184-8403

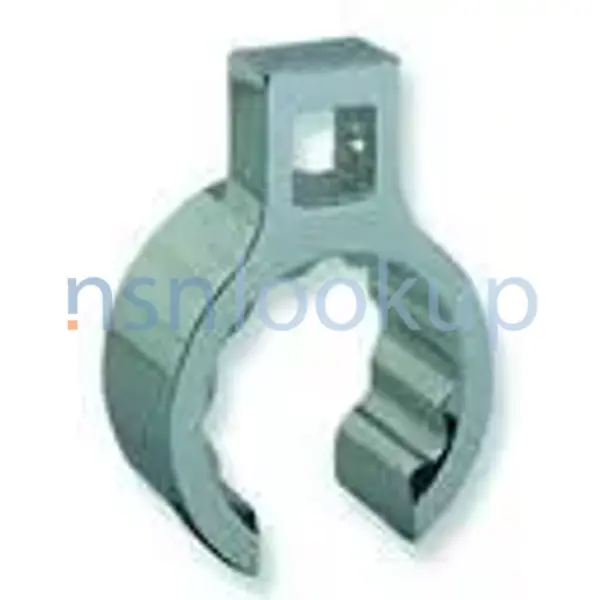

Socket Wrench Crowfoot Attachment
5120001848403 001848403 B107.100 B107.21 B107.21 TY2CL1 FC30 J-35157 GGG-C-1507 TY2 3303 GGG-C-1507 B107.21 TY2CL2STB
A wrench component which may contain notches within an open end, box, open wall box, 2 or 3 lug open end wrench opening having a square, internal, fixed, eccentric drive parallel to the wrench opening, designed to receive the external drive end of a HANDLE, SOCKET WRENCH. Items having an open end type wrench opening may have a second drive opening at right angles to the wrench opening. See also SOCKET, CROWFOOT WRENCH HEAD and HEAD, CROWFOOT SOCKET WRENCH. View more Socket Wrench Crowfoot Attachment
May 2023
57
Marketplace 5120-00-184-8403
Request a Quotation from participating marketplace vendors
Updated Every Day
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5120-00-184-8403 5+ Documents (More...)
TY2CL1FC30J-35157GGG-C-1507 TY23303GGG-C-1507B107.21 TY2CL2STB A wrench GGG-C-1507 TY2 T17312 B107.21
TY2CL2STA GGG-C-1507 TY2 A wrench component which may TY2CL2STB AN8506-5 GGG-C-1507 TY2 10082456 A wrench
FC30 J-35157 GGG-C-1507 TY2 3303 GGG-C-1507 B107.21 TY2CL2STB A wrench component /fsc-5120/us 5120-00
CAT 21 TY2CL2 FC22 J-35153 3319 GGG-C-1507 B107.21B107.21 TY2CL2 B107.21 TY2CL2STB AN8506- Socket Wrench
5 GGG-C-1507 TY2 10082456 A wrench component which may contain notches within an open end, box, open
/fsg-51/fsc-5120/us 5120-00-184-8403 Socket Wrench Crowfoot Attachment 001848403 B107.21B107.21 TY2CL1
TY2CL2 GGG-C-1507 TY2 T17312 B107.100 CROWFOOT https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-
181-6784 Socket Wrench Crowfoot Attachment 001816784 4912 TC12 B107.21 B107.21 TY2CL2 GGG-C-1507 TY2
TY2CL2 GGG-C-1507 TY2 T17312 B107.100 CROWFOOT https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-
B107.21 TY2CL2 GGG-C-1507 TY2 T17312 A wrench component which may contain notches Socket Wrench Crowfoot
Restrictions 5120-00-184-8403
5120-00-184-8403 is a Socket Wrench Crowfoot Attachment that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-184-8403
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-184-8403
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- AZCTBD
- US Coast Guard (C014)
- Effective Date:
- 1 Apr 1991
- US Air Force (FGGS)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- GTJBHS
- Poland (WP01)
- Effective Date:
- 1 Nov 2004
- Brazil (YA01)
- Effective Date:
- 1 Aug 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jul 2015
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Malaysia (YW01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Jun 2000
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Sep 2004
Approved Sources 5120-00-184-8403
- Part Number
- Manufacturer
- Status
- B107.100
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Reference
- Incomplete Reference
- B107.21
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- B107.21 TY2CL1
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- FC30
- K5773 - Snap On Uk Holdings Ltd T/A Snap On (Active)
- Secondary Buy
- Secondary Buy
- J-35157
- 33287 - Bosch Automotive Service Solutions (Active)
- Secondary Buy
- Secondary Buy
- 3303
- 688L6 - Wta Tool Llc (Active)
- Secondary Buy
- Secondary Buy
- GGG-C-1507 TY2
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 3303
- 63704 - Granco Industries Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-C-1507
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.21 TY2CL2STB
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-00-184-8403
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End Internal
- Drive Surface Size [ATNC]
- 0.375 Inches Nominal Single End
- Head Thickness [AHML]
- 0.375 Inches Nominal
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 2 Type And 1 Class
- Overall Length [ABHP]
- 1.969 Inches Nominal
- Overall Width [ABMK]
- 1.624 Inches Nominal
- Wrenching Surface Shape [CRWY]
- Oval Single End Internal
- Wrenching Surface Size [AJBR]
- 0.938 Inches Nominal Single End
- Specification/Standard Data [ZZZK]
- 05047-Asme B107.100 Professional/Industrial Association Standard
- Style Designator [STYL]
- Open End Camber
- Surface Treatment [SFTT]
- Chromium Overall
NATO Stock Numbers Related to 5120-00-184-8403
Freight Information 5120-00-184-8403
5120-00-184-8403 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186630. A Sub NMFC of X. It has a NMFC Description of TOOLS:NOI O/T PLSTC IN BBLS/BXS. 5120-00-184-8403 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-184-8403 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-184-8403 is not classified as a special type of cargo when transported by water. 5120-00-184-8403 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
