5120-00-184-8391

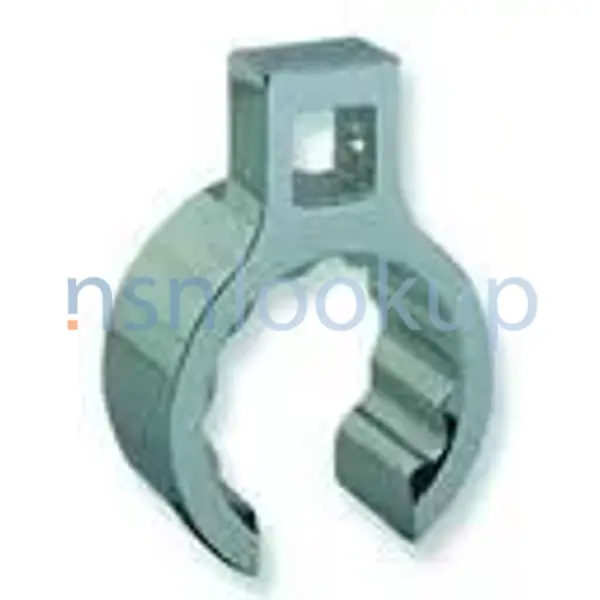

Socket Wrench Crowfoot Attachment
5120001848391 001848391 AS4167 TY1CL1STCDEA AS4167 B107.21 B107.21 TY1CL1 GGG-C-1507 GGG-C-1507 TY1CL3 B107.21 TY1CL3STA
A wrench component which may contain notches within an open end, box, open wall box, 2 or 3 lug open end wrench opening having a square, internal, fixed, eccentric drive parallel to the wrench opening, designed to receive the external drive end of a HANDLE, SOCKET WRENCH. Items having an open end type wrench opening may have a second drive opening at right angles to the wrench opening. See also SOCKET, CROWFOOT WRENCH HEAD and HEAD, CROWFOOT SOCKET WRENCH. View more Socket Wrench Crowfoot Attachment
May 2023
25
Marketplace 5120-00-184-8391
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-184-8391 5+ Documents (More...)
AN850829B B107.21 AN8508-29 B107.21 TY1CL3STAGGG-C-1507B107.21 TY1CL1 TY1CL1B107.21 TY1CL3STA GGG-C-
-1507B107.21 TY1CL1B107.21 TY1CL3STA AF-36 GGG-C-1507 TY1CL3B107.21 45436 TY2CL2STA B107.21 TY2CL1 GGG-C
TY2CL1 GGG-C-1507 TY2 A wrench B107.100 GGG-C-1507 TY1CL3 B107.21B107.21 B107.21B107.21 TY2CL2STA B107.21
TY2CL1 GGG-C-1507 TY2 A wrench B107.100 GGG-C-1507 TY1CL3 B107.21B107.21 https//www.nsnlookup.com https
TY1CL1STCDEA AN850827B B107.21 TY1CL1 B107.21 TY1CL3STA GGG-C-1507 TY1CL3 B107.21 AS4167AN8508-27A Socket
TY1CL1STCDEA 34749804 B107.21 B107.21 TY1CL1 B107.21 TY1CL3STA GGG-C-1507 GGG-C-1507 TY1CL3 A AS4167
-1507B107.21 B107.100 B107.21 TY1CL2 GGG-C-1507 TY1CL3 A wrench component TY1CL1STCDEAB107.21B107.21
-1507B107.21 TY1CL1B107.21 TY1CL3STA AF-36 GGG-C-1507 TY1CL3B107.21 45436 TY2CL2STA B107.21 TY2CL1 GGG-C
TY1CL1B107.21 TY1CL3STA GGG-C-1507 TY1CL3 A Upgrade AS4167 TY1CL1STCDEAAN850829B B107.21AN8508-29B107.21
-1507B107.21 TY1CL1B107.21 TY1CL3STA AF-36 GGG-C-1507 TY1CL3B107.21 45436 TY2CL2STA B107.21 TY2CL1 GGG-C
Restrictions 5120-00-184-8391
5120-00-184-8391 is a Socket Wrench Crowfoot Attachment that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-184-8391
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-184-8391
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- CT
- US Air Force (FGGS)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- HDHS
- Supplementary Receivers:
- JV
- Brazil (YA01)
- Effective Date:
- 1 Aug 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Oct 2009
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5120-00-184-8391
- Part Number
- Manufacturer
- Status
- AS4167
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- AS4167 TY1CL1STCDEA
- 80244 - General Services Administration (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- AS4167
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.21
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.21 TY1CL1
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-C-1507
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GGG-C-1507 TY1CL3
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B107.21 TY1CL3STA
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-00-184-8391
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Shape [CTCT]
- Square Single End Internal
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Single End
- Head Thickness [AHML]
- 1.250 Inches Nominal
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Type And 1 Class And C Style And A Design
- Opening Width [ABPP]
- 2.062 Inches Nominal
- Overall Length [ABHP]
- 4.296 Inches Nominal
- Overall Width [ABMK]
- 3.560 Inches Maximum
- Wrenching Surface Size [AJBR]
- 2.625 Inches Nominal Single End
- Wrenching Surface Shape [CRWY]
- 12 Point Single End Internal
- Specification/Standard Data [ZZZK]
- 81343-Sae As4167 Professional/Industrial Association Standard
- Style Designator [STYL]
- Flare Nut
- Surface Treatment [SFTT]
- Chromium Overall
Management Data 5120-00-184-8391
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- D
- Durable item.An item of Army property coded with an ARC of D in the AMDF. Durable items do not require property book accountability after issue from the stock record account but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded D in the AMDF are considered durable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
NATO Stock Numbers Related to 5120-00-184-8391
Freight Information 5120-00-184-8391
5120-00-184-8391 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186630. A Sub NMFC of X. It has a NMFC Description of TOOLS:NOI O/T PLSTC IN BBLS/BXS. 5120-00-184-8391 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-184-8391 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-184-8391 is not classified as a special type of cargo when transported by water. 5120-00-184-8391 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
