5120-00-177-6885
Spanner Wrench
5120001776885 001776885 STD67084
A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG. View more Spanner Wrench
January 2023
4
Marketplace 5120-00-177-6885
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-177-6885 1+ Documents (More...)
/fsg-51/fsc-5120/us
WRENCH,SPANNER RQST NS Request Quotation Updated Every Day 5120-00-177-6885 RQST NE Updated Every
Day 5120-00-177-6885 RQST Updated Every Day 5120-00-177-6885 RQST NE Related Documents 5120-00-177-6885
Restrictions 5120-00-177-6885
5120-00-177-6885 is a Spanner Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-177-6885
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-177-6885
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- Spain (YB01)
- Effective Date:
- 1 May 1999
Approved Sources 5120-00-177-6885
- Part Number
- Manufacturer
- Status
- STD67084
- Manufacturer
- 11599 - Triumph Engine Control Systems Llc (Active)
- Primary Buy
- Primary Buy
Datasheet 5120-00-177-6885
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Angle Between Pins [CSGZ]
- 213.15 Degrees Minimum And 213.25 Degrees Maximum
- Material [MATT]
- Steel Overall
- Opening Diameter [AGNJ]
- 1.791 Inches Nominal
- Material Document And Classification [MDCL]
- Ams-5062 Assn Std Single Material Response Overall
- Overall Length [ABHP]
- 7.312 Inches Nominal
- Pin Circle Radius [AJBH]
- 1.000 Inches Minimum And 1.002 Inches Maximum
- Pin Diameter [ABVV]
- 0.124 Inches Minimum And 0.125 Inches Maximum
- Special Features [FEAT]
- Straight Handle;0.187 In. Free Pin Lg

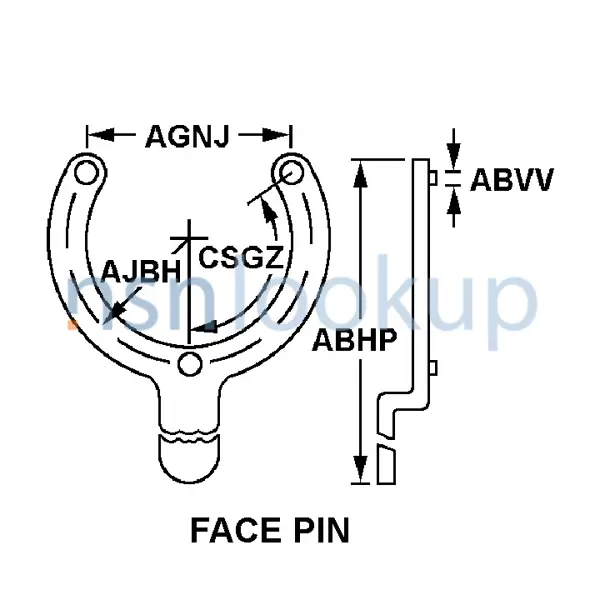

- Style Designator [STYL]
- Face Pin
Similar Supply Items to 5120-00-177-6885
Freight Information 5120-00-177-6885
5120-00-177-6885 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-177-6885 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-177-6885 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-177-6885 is not classified as a special type of cargo when transported by water. 5120-00-177-6885 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
