5120-00-143-7934
Torque Wrench Adapter
5120001437934 001437934 801080
An adapter which facilitates the use of a torque wrench in various applications. One end is designed for direct mating with the drive tang of a torque wrench and the other end designed to mate with the head of a bolt, nut, or the like, or made to fit into socket wrench or screwdriver bit. View more Torque Wrench Adapter
January 2023
17
Marketplace 5120-00-143-7934
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-143-7934 5+ Documents (More...)
United States (US) 4. 5120-00-143-7934 Marketplace Restrictions Approved Sources Datasheet Management
Day 5120-00-143-7934 RQST Updated Every Day 5120-00-143-7934 RQST NE Related Documents 5120-00-143-7934
: | ADPEC : 5120-21-109-0314 is a Torque Wrench https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-143-7934
Torque Wrench Adapter 5120001437934 001437934 7934 RQST NE Related Documents 5120-00-143-7934 https
Torque Wrench Adapter 5120001437934 001437934 $1 a day Upgrade your Account Upgrade 5120-00-143
-7934Torque Wrench Adapter5120001437934 001437934 801080 www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00
/fsg-40/fsc-4020/dk
JavaScript in your web browser . 4020-22-220-0709Polyester Cord4020222200709 222200709571263080165502-801080
Torque https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-143-7934 Torque Wrench Adapter 5120001437934
www.nsnlookup.com /fsg-49/fsc-4940/us 4940-01-341-6144 Stud Mounting Ground 4940013416144013416144 801080
-449-8737 Flat Washer 5310994498737 994498737,PM21523 Request Subscribe to View Vendor Details... 801080
Restrictions 5120-00-143-7934
5120-00-143-7934 is a Torque Wrench Adapter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-143-7934
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-143-7934
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Dec 2007
- Greece (ZU01)
- Effective Date:
- 1 Mar 2008
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5120-00-143-7934
- Part Number
- Manufacturer
- Status
- 801080
- Manufacturer
- 0AHP5 - Curtiss-Wright Controls, Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 5120-00-143-7934
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Drive End Head Thickness [AJEU]
- 1.188 Inches Nominal
- Drive End Outside Diameter [AHMK]
- 0.938 Inches Nominal
- Drive End Shape [CTCT]
- Square Single End Internal
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Single End
- Material [MATT]
- Steel Comp 3140 Overall
- Overall Length [ABHP]
- 12.625 Inches Nominal
- Wrenching End Head Thickness [AJET]
- 0.281 Inches Nominal
- Wrenching End Outside Diameter [AHMJ]
- 1.188 Inches Nominal
- Wrenching Surface Shape [CRWY]
- Oval Single End Internal
- Wrenching Surface Size [AJBR]
- 0.562 Inches Nominal Single End

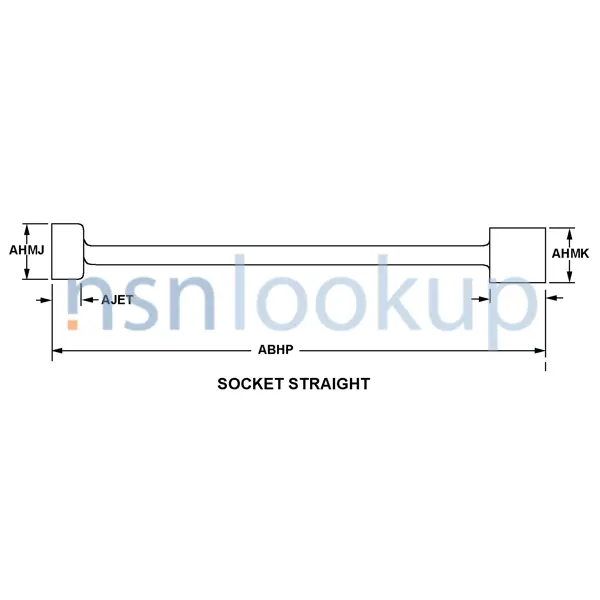

- Style Designator [STYL]
- Socket Straight
- Surface Treatment [SFTT]
- Cadmium Overall
Similar Supply Items to 5120-00-143-7934
Freight Information 5120-00-143-7934
5120-00-143-7934 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-143-7934 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-143-7934 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-143-7934 is not classified as a special type of cargo when transported by water. 5120-00-143-7934 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
