5120-00-142-7988
Box Wrench
5120001427988 001427988 PWA2397 SAC214
A nonadjustable wrench having a box wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; and WRENCH, BOX AND OPEN END, COMBINATION. View more Box Wrench
January 2023
21
Marketplace 5120-00-142-7988
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-142-7988 1+ Documents (More...)
United States (US) 4. 5120-00-142-7988 Marketplace Restrictions Approved Sources Datasheet Management
Request a Quotation from participating marketplace vendors Request Updated Every Day 5120-00-142-7988
Restrictions 5120-00-142-7988
5120-00-142-7988 is a Box Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-142-7988
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-142-7988
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW01)
- Effective Date:
- 1 Jul 1994
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5120-00-142-7988
- Part Number
- Manufacturer
- Status
- PWA2397
- Manufacturer
- 77445 - Rtx Corporation (Active)
- Primary Buy
- Primary Buy
- SAC214
- 13033 - Cooper Industries Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-00-142-7988
- Characteristic
- Specifications
- FIIG
- Specifications
- A527Y0
- Drive End Shape [CTCT]
- Square Second End External
- Drive Surface Size [ATNC]
- 0.500 Inches Nominal Second End
- Head Thickness [AHML]
- 0.406 Inches Nominal
- Material [MATT]
- Steel Overall
- Outside Diameter [ABKV]
- 0.790 Inches Minimum And 0.800 Inches Maximum
- Overall Length [ABHP]
- 4.250 Inches Nominal
- Special Features [FEAT]
- Male Drive
- Wrenching End Offset Angle [CSPX]
- 28.0 Degrees Nominal
- Wrenching Surface Shape [CRWY]
- 12 Point First End Internal
- Wrenching Surface Size [AJBR]
- 0.562 Inches Nominal First End

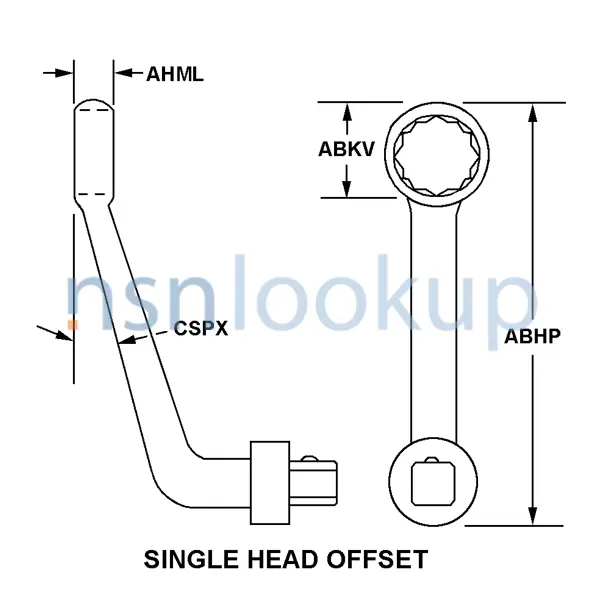

- Style Designator [STYL]
- Single Head Offset
- Surface Treatment [SFTT]
- Chromium Overall And Nickel Overall And Oxide Overall
Similar Supply Items to 5120-00-142-7988
Freight Information 5120-00-142-7988
5120-00-142-7988 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-142-7988 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-142-7988 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-142-7988 is not classified as a special type of cargo when transported by water. 5120-00-142-7988 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
