5120-00-098-6723
Socket Wrench
5120000986723 000986723 8708639
A wrench consisting of one or more sockets, integral with shank(s) or body. It may not be furnished with a handle when the handle is removable or when it is the "double end socket" and "single socket bar" types, each designed for use with the other or similar items. Excludes SOCKET, SOCKET WRENCH. View more Socket Wrench
January 2023
23
Marketplace 5120-00-098-6723
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-098-6723 1+ Documents (More...)
United States (US) 4. 5120-00-098-6723 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5120-00-098-6723 RQST Updated Every Day 5120-00-098-6723 RQST NE Related Documents
Restrictions 5120-00-098-6723
5120-00-098-6723 is a Socket Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-098-6723
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-098-6723
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5120-00-098-6723
- Part Number
- Manufacturer
- Status
- 8708639
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 5120-00-098-6723
- Characteristic
- Specifications
- FIIG
- Specifications
- A527Y0
- Material [MATT]
- Steel Comp 1040 Overall Or Steel Comp 1050 Overall
- Material Document And Classification [MDCL]
- Astm-A 108 Assn Std Single Material Response Overall
- Overall Length [ABHP]
- 11.000 Inches Nominal
- Special Features [FEAT]
- Handle Broken 105 Deg
- Wrenching Surface Shape [CRWY]
- 12 Point Both Ends Internal
- Wrenching Surface Size [AJBR]
- 0.812 Inches Nominal Both Ends

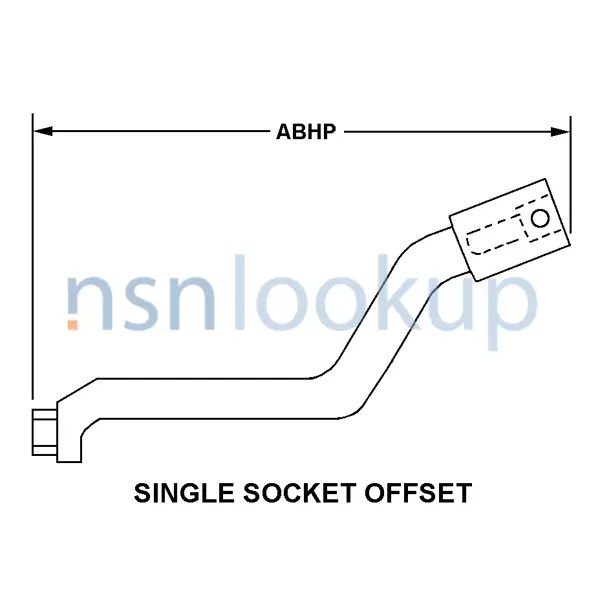

- Style Designator [STYL]
- Single Socket Offset
- Surface Treatment Document And Classification [STDC]
- Mil-P-16232,Type Z,Class 2 Mil Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Phosphate Overall
Similar Supply Items to 5120-00-098-6723
Freight Information 5120-00-098-6723
5120-00-098-6723 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-098-6723 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-098-6723 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-098-6723 is not classified as a special type of cargo when transported by water. 5120-00-098-6723 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
