5120-00-033-0541
Torque Wrench Adapter
5120000330541 000330541 800684
An adapter which facilitates the use of a torque wrench in various applications. One end is designed for direct mating with the drive tang of a torque wrench and the other end designed to mate with the head of a bolt, nut, or the like, or made to fit into socket wrench or screwdriver bit. View more Torque Wrench Adapter
January 2023
22
Marketplace 5120-00-033-0541
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-033-0541 4+ Documents (More...)
United States (US) 4. 5120-00-033-0541 Marketplace Restrictions Approved Sources Datasheet Management
ADAPTER,TORQUE WRENCH 99 EA NS Request Quotation Subscribe to View Vendor Details... 800684 ADAPTER,
Torque Wrench Adapter 5120000330541 000330541 Request a Quotation from participating marketplace
Torque Wrench Adapter 5120000330541 000330541 $1 a day Upgrade your Account Upgrade 5120-00-033
-0541Torque Wrench Adapter5120000330541 000330541 800684 ADAPTER,TORQUE WRENCH 99 EA NS Request Quotation
Torque Wrench Adapter 5120000330541 000330541 $1 a day Upgrade your Account Upgrade 5120-00-033
-0541Torque Wrench Adapter5120000330541 000330541 800684 ADAPTER,TORQUE WRENCH 99 EA NS Request Quotation
Restrictions 5120-00-033-0541
5120-00-033-0541 is a Torque Wrench Adapter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-033-0541
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-033-0541
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Thailand (YY01)
- Effective Date:
- 1 Feb 2015
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Dec 1995
Approved Sources 5120-00-033-0541
- Part Number
- Manufacturer
- Status
- 800684
- Manufacturer
- 0AHP5 - Curtiss-Wright Controls, Inc. (Active)
- Primary Buy
- Primary Buy

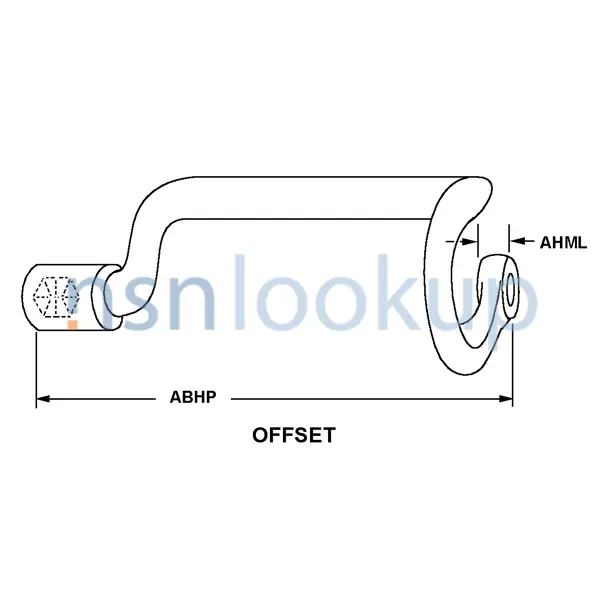

Datasheet 5120-00-033-0541
- Characteristic
- Specifications
- FIIG
- Specifications
- A102A0
- Head Thickness [AHML]
- 0.125 Inches Nominal
- Material [MATT]
- Steel Comp 3140 Overall
- Overall Length [ABHP]
- 8.250 Inches Nominal
- Wrenching Surface Shape [CRWY]
- 12 Point First End Internal
- Wrenching Surface Shape [CRWY]
- Square Second End Internal
- Wrenching Surface Size [AJBR]
- 0.375 Inches Nominal Second End
- Wrenching Surface Size [AJBR]
- 0.625 Inches Nominal First End
- Style Designator [STYL]
- Offset
- Surface Treatment [SFTT]
- Oxide Overall Or Chromium Overall
Similar Supply Items to 5120-00-033-0541
Freight Information 5120-00-033-0541
5120-00-033-0541 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-033-0541 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5120-00-033-0541 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-033-0541 is not classified as a special type of cargo when transported by water. 5120-00-033-0541 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
