5120-00-028-3622
Box Wrench
5120000283622 000283622 ST00520
A nonadjustable wrench having a box wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; and WRENCH, BOX AND OPEN END, COMBINATION. View more Box Wrench
January 2023
13
Marketplace 5120-00-028-3622
Request a Quotation from participating marketplace vendors
Related Documents 5120-00-028-3622 1+ Documents (More...)
Day 5120-00-028-3622 RQST Updated Every Day 5120-00-028-3622 RQST NE Related Documents 5120-00-028-3622
,ST00520 ST00520 A nonadjustable wrench having a box wrenching feature on one or both ends.
Restrictions 5120-00-028-3622
5120-00-028-3622 is a Box Wrench that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5120-00-028-3622
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5120-00-028-3622
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Dec 1995
Approved Sources 5120-00-028-3622
- Part Number
- Manufacturer
- Status
- ST00520
- Manufacturer
- 15090 - Raytheon Company (Active)
- Primary Buy
- Primary Buy
- ST00520
- 14170 - Hughes Missile Systems Co San Diego (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5120-00-028-3622
- Characteristic
- Specifications
- FIIG
- Specifications
- A527Y0
- Material [MATT]
- Steel Overall
- Overall Length [ABHP]
- 15.000 Inches Nominal
- Wrenching Surface Shape [CRWY]
- 6 Point Both Ends Internal
- Wrenching Surface Size [AJBR]
- 2.760 Inches Minimum And 3.350 Inches Maximum Single End

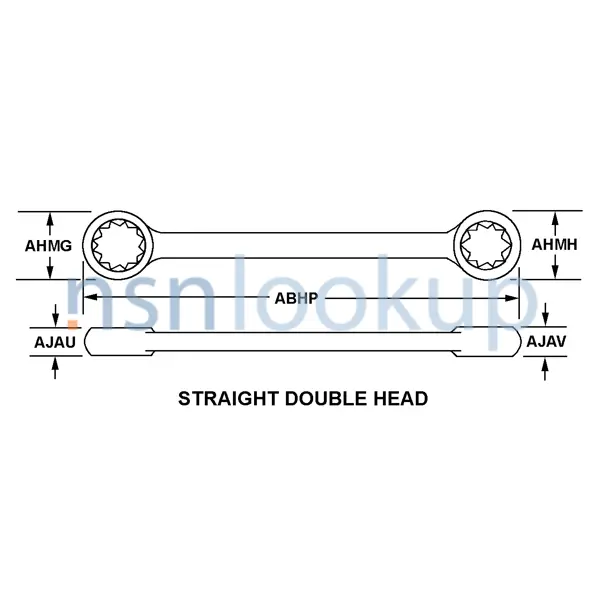

- Style Designator [STYL]
- Straight Double Head
- Surface Treatment [SFTT]
- Chromium Overall
Similar Supply Items to 5120-00-028-3622
Freight Information 5120-00-028-3622
5120-00-028-3622 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5120-00-028-3622 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5120-00-028-3622 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5120-00-028-3622 is not classified as a special type of cargo when transported by water. 5120-00-028-3622 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5120-00-028-3622
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- No Requirement
- Not Applicable
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- No Requirement
