5110-01-399-9317

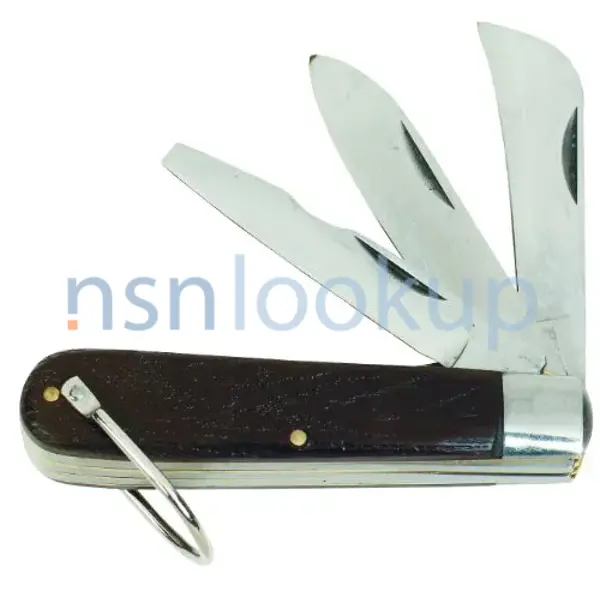

Pocket Knife
5110013999317 013999317 1550-6 J18535 4R172 18535
A general purpose item which could be equipped with more than one blade. It shall be possible to open any of the blades with the remaining blades open or closed. A free rotating clevis may be attached. View more Pocket Knife
August 2023
13
Marketplace 5110-01-399-9317
Request a Quotation from participating marketplace vendors
Related Documents 5110-01-399-9317 5+ Documents (More...)
Quotation Updated Every Day 1550-6 RQST NE Updated Every Day J18535 RQST NE Updated Every Day 18535
RQST NE Updated Every Day 4R172 RQST NE Updated Every Day 5110-01-399-9317 RQST NE Updated Every Day
Vendor Details... 15506 KNIFE,POCKET 5 EA NS Request Quotation Subscribe to View Vendor Details... 1550-6
View Vendor Details... 5110-01-563-8228 KNIFE,POCKET RQST NS Request Quotation Updated Every Day 1550-6
Pocket Knife 5110013999317 013999317,1550-6 8-6-23 CC31-18535 Pocket Knife 5110013999317 013999317,1550
-6 8534Bushing Insulator5970002798534 002798534 2680-18535 https//www.nsnlookup.com /fsg-59/fsc-5970/
a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 204-18535
for $1 a day Upgrade your Account Upgrade 6130-01-006-2586Power Supply6130010062586 010062586 204-18535
/fsg-65/fsc-6515/us 6515-01-326-1595 Straight Tubing Connector 6515013261595 F90G15290-8-6-23 CC31-18535
Pocket Knife 5110013999317 013999317,1550-6 2586Power Supply6130010062586 010062586 204-18535 https
Restrictions 5110-01-399-9317
5110-01-399-9317 is a Pocket Knife that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5110-01-399-9317
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5110-01-399-9317
- US Army (A192)
- Effective Date:
- 1 Jan 1995
- Supplementary Receivers:
- BFCL
- US Coast Guard (C014)
- Effective Date:
- 1 Jan 1995
- US Air Force (FGGS)
- Effective Date:
- 1 Jan 1995
- NASA (G751)
- Effective Date:
- 1 Dec 1994
- US Marine Corps (MC14)
- Effective Date:
- 1 Jan 1995
- US Navy (N9QG)
- Effective Date:
- 1 Jan 2014
- Supplementary Collaborators:
- GG
- Republic of Korea (ZH01)
- Effective Date:
- 1 Mar 2006
Approved Sources 5110-01-399-9317
- Part Number
- Manufacturer
- Status
- 1550-6
- Manufacturer
- 75347 - Klein Tools Inc (Active)
- Primary Buy
- Primary Buy
- J18535
- 1CV05 - The Stanley Works (Active)
- Primary Buy
- Primary Buy
- 4R172
- 25795 - W.W. Grainger, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 18535
- 1CV05 - The Stanley Works (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5110-01-399-9317
- Characteristic
- Specifications
- FIIG
- Specifications
- A539B0
- Blade Quantity [AJLB]
- 3
- Closed Length [CBRJ]
- 3.750 Inches Nominal
- Features Provided [CBBL]
- Clevis
- Special Features [FEAT]
- Electrician's Type; Spear Blade, Stripping Blade, Self-Locking Combination Screwdriver, Insulation Cutter And Wire Stripper Blade
Management Data 5110-01-399-9317
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5110-01-399-9317
Freight Information 5110-01-399-9317
5110-01-399-9317 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 186620. A Sub NMFC of Z. It has a NMFC Description of TOOLS, NOI HAND OTHER THAN POWER. 5110-01-399-9317 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 91810 which rates the freight between FCL and LCL. 5110-01-399-9317 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 732 for ocean manifesting and military sealift. 5110-01-399-9317 is not classified as a special type of cargo when transported by water. 5110-01-399-9317 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
