Fire Control Maintenance Azimuth Telescope Testing Fixture
4931007691596 007691596 7691596
A fixture designed to position a fire control instrument for testing and calibration. Excludes FIXTURE (1), TEST, OPTICAL INSTRUMENT. View more Fire Control Instrument Test Fixture
March 2025
30
Product Information 4931-00-769-1596
Azimuth Test Fixture

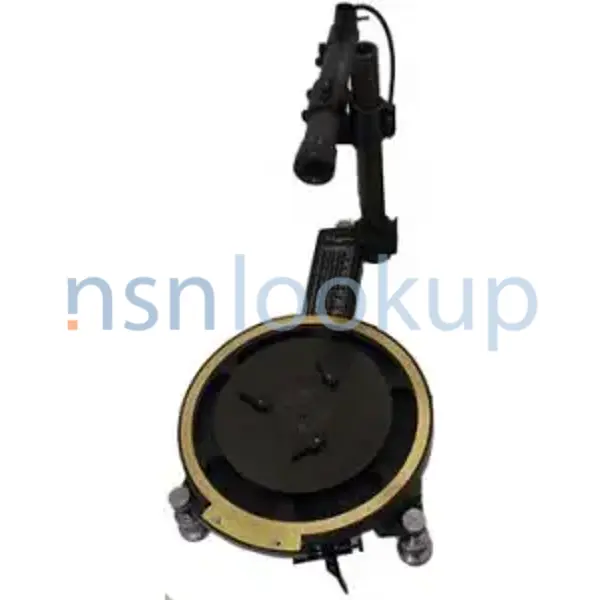

The Azimuth Test Fixture is designed for checking the azimuth accuracy of various fire control instruments to include backlash error, level travel, and counter/scale accuracy. Some of these instruments include: M137 Panoramic Telescope, M117 Panoramic Telescope, M64/M67 Telescope Mount, M2A2 Aiming Circle, and the M12A7 Panoramic Telescope.
Dimensions: 43″ x 27″ x 11″
Weight: 192 lb
