4920-01-541-2764

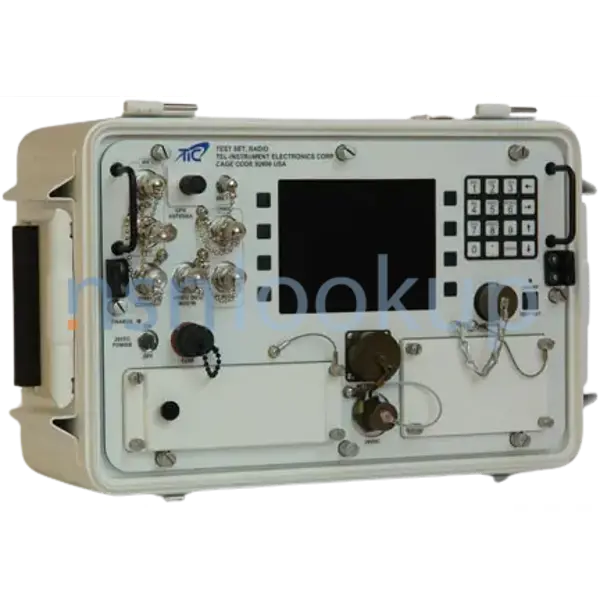

The AN/USM-708 is the next generation in ground support equipment test equipment.

The AN/USM-708 Multi-Function Test Set provides unsurpassed reliability and ruggedness designed by an established and well recognized company with 50 years in the design and manufacture of aviation ground support and bench test equipment.

The AN/USM-708 large 6.0 in. color LCD (NVG compatible) screen and surrounding soft-keys and keyboard provides easy and quick access to a multiple of test screens menus, and display options affording single man operation, instant results, and a host of pre-programmed and manually variable parameters to meet the most demanding requirement s for testing of airborne avionic and communication equipment.

Based on entirely new up-to-date technology and digital architecture, the AN/USM-708 is a leap forward in precision testing of the following systems:

• Transponder: Modes 1, 2, 3/A, C, 4 Mode S, EHS (Enhanced Surveillance) and Mode 5
• Interrogator: Modes 1, 2, 3/A, C, 4, Mode S, Mode 5, TCAS & ETCAS, Shipboard Processor
• ADS-B (Automatic Dependent Surveillance Broadcast)TX & RX
• Navigation: VOR, ILS, LOC, GS, MB, TACAN, VSWR
• Sonobuoy
• Link-4
• ADF (Automatic Direction Finder)

The AN/USM-708 large 6.0 in. color LCD (NVG Compatible) screen and surrounding soft-keys and keyboard provides easy and quick access to a multiple of test screens menus, and display options affording single man operation, instant results, and a host of pre-programmed and manually variable parameters to meet the most demanding requirement s for testing of airborne avionic and communication equipment.

The AN/USM-708 Multi-Function Test Set provides unsurpassed reliability and ruggedness designed by an established and well recognized company with over 45 years in the design and manufacture of aviation ground support and bench test equipment.

•  Over-the-Air and Direct Connect methods
•  Rugged and durable MIL-PRF-28800F, Class 1 package
•  Remote Firmware upgrades via the internet/CD-Rom
•  Extensive Built in Diagnostics
•  Expandable capabilities (HAVEQUICK, Link-11, 16, 22 , SINCGARSand communications planned)

The AN/USM-708 is designed in a compact, waterproof and durable case. Instant one button GO/NO test can be performed based on stored parameters. The user also has the capability to manually select and vary parameters individualized for each system. All accessories are neatly stored in the Test Set cover and the battery charger is included.

• Mode 4 and Mode 5 U.S. Department of Defense (DoD) AIMS International Program Office Approved
• Utilizes the KIV-78 applique for Mode 5 Interrogator and Transponder tests (not included).
• Ideally suited for any temperature or region due to its self calibrating software.
• Built-in battery charger and three (3) front panel replaceable Lithium-Ion batteries (included).
