4820-01-498-2711

Check Valve

4820014982711 014982711 5081-006-400 5081-006 4IN.

A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design. View more Check Valve

4820-01-498-2711 VALVE,CHECK 4820014982711 014982711

Managed by United States
NSN Created on 20 Jun 2002
Data Last Changed
November 2023
NATO Update Count
2
NATO Data Quality

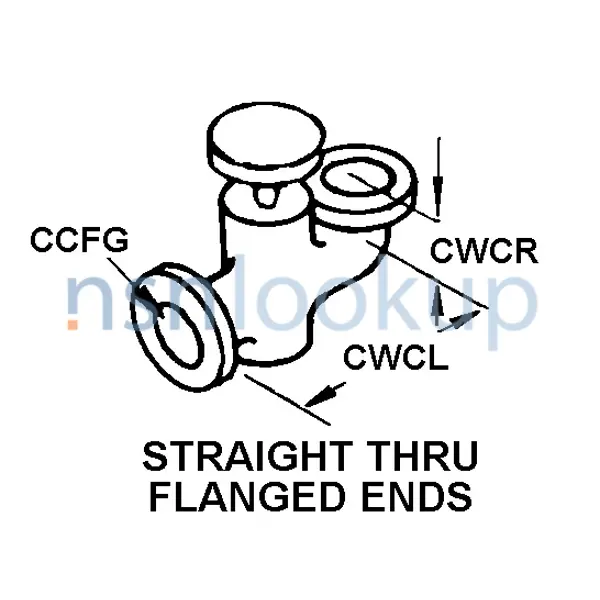

STYL Style E10A for 4820-01-498-2711 1/1
NSN 4820-01-498-2711 (Identification) 1/1

4820-01-498-2711 Stock and Availability Marketplace 4820-01-498-2711

Need Help?
Request a Quotation from participating marketplace vendors
FedMallFedMall.mil Updated Every 15 Minutes
4820-01-498-2711 BUY NE FedMallFedMall.mil
eBay Updated Every Day
4820-01-498-2711 RQST NE eBay
eBay Updated Every Day
4820-01-498-2711 RQST eBay
Amazon Updated Every Day
4820-01-498-2711 RQST NE Amazon

4820-01-498-2711 Related Documents Related Documents 4820-01-498-2711 1+ Documents (More...)

5081-006-400 5081-006 4IN.
BUY NE FedMall Updated Every Day 4820-01-498-2711 RQST NE Updated Every Day 4820-01-498-2711 RQST
Updated Every Day 4820-01-498-2711 RQST NE Related Documents 4820-01-498-2711 1+ Documents ( More...

4820-01-498-2711 Demil Restrictions 4820-01-498-2711

DEMIL: A | DEMILI: 1 | CRITICALITY: X | HMIC: N | PMIC: A | EDC: | ADPEC: 0

4820-01-498-2711 is a Check Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

4820-01-498-2711 End Users End Users 4820-01-498-2711

US Navy (N9BC)
Effective Date:
1 Jan 2005
Former MOE Rule:
N9CD
Supplementary Collaborators:
HD

4820-01-498-2711 Manufacturers Approved Sources 4820-01-498-2711

4820-01-498-2711 Technical Data Datasheet 4820-01-498-2711

Characteristic
Specifications
FIIG
A530B0
Connection Type [AWLS]
Flange All Ends
First Connection Face To Centerline Distance [CWCL]
12.875 Inches
Flange Face Design [CWDF]
Plain All Ends
Flange Shape [ARKN]
Round With Holes All Ends
Material [MATT]
Copper Alloy Body
Material [MATT]
Copper Alloy Seat
Nominal Outside Diameter [CWCD]
9.000 Inches All Ends
Nominal Thickness [CWCK]
0.688 Inches All Ends
Second Connection Face To Centerline Distance [CWCR]
6.125 Inches
Part Name Assigned By Controlling Agency [CXCY]
Scupper,Flanged,90 Degree,4 In.
Special Features [FEAT]
A90 Degree Flanged Scupper; Ansi 150 Drilled; Standard Gasket; Monel Bolting Material; Monel Nuts (Not Self-Locking); 90 Degree Brazed; Bronze Seat Ring; Bronze Flapper; Monel Hinge Pin; 150 Psi
Valve Operation Method [AQLR]
Automatic
Valve Size [CCFG]
4.000 Inches
Style Designator [STYL]
Straight Thru Flanged Ends

4820-01-498-2711 Weapon Systems (WSDC) Weapon Systems (WSDC) 4820-01-498-2711

4820-01-498-2711 Stock, Inventory and Procurement DLA Procurement Analysis 4820-01-498-2711

Last Stock Position:
2 In Stock
DLA Administrative Lead Time:
Subscribe
DLA Production Lead Time:
Subscribe
Subscribe to View DLA Inventory and Forecast...

4820-01-498-2711 Management Data Management Data 4820-01-498-2711

Effective Date
Organization
Unit of Issue
Unit Price
Qty Unit Pack
Oct 2022
Defense Logistics Agency (DS)
EA
Subscribe
1
Oct 2021
Department of the Navy (DN)
EA
Subscribe
1
Oct 2020
Defense Logistics Agency (DS)
EA
Subscribe
1
Oct 2019
Department of the Navy (DN)
EA
Subscribe
1

Navy Navy

Cognizance:
9B
Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

4820-01-498-2711 Related Items NATO Stock Numbers Related to 4820-01-498-2711

4820-01-498-2711 Freight Data Freight Information 4820-01-498-2711

4820-01-498-2711 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051080. A Sub NMFC of Z. It has a NMFC Description of FAUCETS,BIBCOCKS,GATES VALVES. 4820-01-498-2711 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29300 which rates the freight between FCL and LCL. 4820-01-498-2711 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4820-01-498-2711 is not classified as a special type of cargo when transported by water. 4820-01-498-2711 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

4820-01-498-2711 Packaging Data Packaging Data 4820-01-498-2711

Responsible Activity
Packaging Data Source
Primary Inventory Control Activity (PICA)
--

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation
--
--
Bare Metal Item
Over 10lb
Less than 85G
No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying
1
--
--
--
--
Any Suitable Process
Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking
No Requirement
--
--
--
PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container
Any Suitable Fiber Box

4820-01-498-2711 Procurement History Procurement History 4820-01-498-2711 4 Records

Contract
Date
CAGE
Quantity
Net Price
Std Price
SPE7MC15M9743
29 Sep 2015
Subscribe
6
Subscribe
Subscribe
SPE7M015V1767
06 Nov 2014
Subscribe
3
Subscribe
Subscribe
SPE7M815M0212
20 Oct 2014
Subscribe
2
Subscribe
Subscribe
SPE7M514MA470
10 Sep 2014
Subscribe
1
Subscribe
Subscribe

4820-01-498-2711 Contracting Technical Data File (CTDF) Contracting Technical Data File (CTDF) 4820-01-498-2711 October 2021

Criticality and Quality

Critical Item Code:
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):
F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:
N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:
