4820-01-455-6941
Expansion Valve
4820014556941 014556941 AA-1/2MC
A self-acting valve specifically designed for use in refrigeration systems for continual control of rate of flow of refrigerant. It may be actuated by a thermostatic element or self-actuated. View more Expansion Valve
May 2023
2
Marketplace 4820-01-455-6941
Request a Quotation from participating marketplace vendors
Related Documents 4820-01-455-6941 3+ Documents (More...)
BUY NE FedMall Updated Every Day 4820-01-455-6941 RQST NE Updated Every Day 4820-01-455-6941 RQST
Updated Every Day 4820-01-455-6941 RQST NE Related Documents 4820-01-455-6941 3+ Documents ( More...
Expansion Valve 4820014556941 014556941 Documents 4820-01-455-6941 2+ Documents ( More... https
Expansion Valve 4820014556941 014556941 RQST NE Updated Every Day 4820-01-455-6941 RQST https//
Restrictions 4820-01-455-6941
4820-01-455-6941 is a Expansion Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4820-01-455-6941
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4820-01-455-6941
- US Navy (N9BC)
- Effective Date:
- 1 Jan 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 4820-01-455-6941
- Part Number
- Manufacturer
- Status
- AA-1/2MC
- Manufacturer
- 14569 - Copeland Corp (Obsolete)
- Original Design
- Original Design
Datasheet 4820-01-455-6941
- Characteristic
- Specifications
- FIIG
- Specifications
- A07100
- Body Style [AAQL]
- Angle Give "Adqn" If Flanged Ends
- Second Connection Face To Centerline Distance [ADQN]
- 0.750 Inches Nominal
- Body Material [AAFZ]
- Brass Or Bronze
- Flow Control Device [ADQU]
- Stem And Integral Disk
- End Connection Quantity [ADQZ]
- 2
- First End Connection Type [ACKM]
- Butt Weld Tube

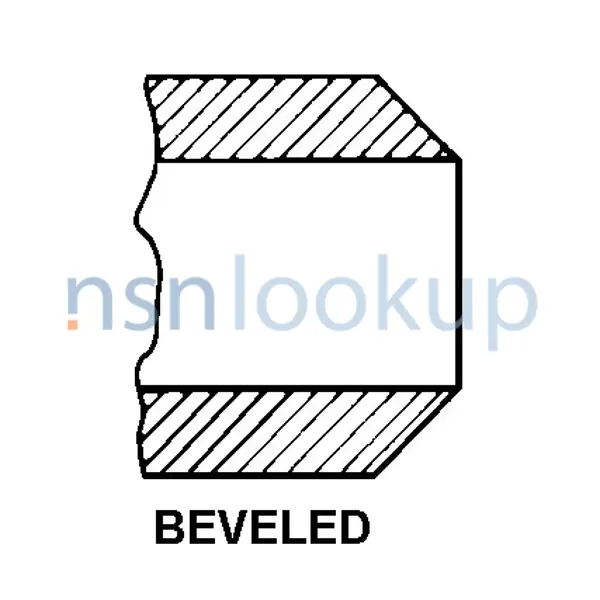

- First End Style Designator [ACKN]
- Beveled
- First End Outside Diameter Tube Accommodated [ACLH]
- 0.250 Inches Nominal
- Second End Relationship With First End [ACLR]
- Identical
- Valve Expansion Control Type [AFKK]
- Thermostatic
- Valve Evaporator Temp Range Designation [AFKL]
- Low
- Valve Pressure Limiting Device [AFKM]
- Not Included
- Valve Equalizer Location [AFKU]
- Internal
- End Item Identification [AGAV]
- Ticonderoga Class Cg (47)
DLA Procurement Analysis 4820-01-455-6941
Management Data 4820-01-455-6941
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4820-01-455-6941
Freight Information 4820-01-455-6941
4820-01-455-6941 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051080. A Sub NMFC of Z. It has a NMFC Description of FAUCETS,BIBCOCKS,GATES VALVES. 4820-01-455-6941 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29300 which rates the freight between FCL and LCL. 4820-01-455-6941 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4820-01-455-6941 is not classified as a special type of cargo when transported by water. 4820-01-455-6941 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 4820-01-455-6941 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
