4820-01-454-6352
Expansion Valve
4820014546352 014546352 EBFVE-A-ZP
A self-acting valve specifically designed for use in refrigeration systems for continual control of rate of flow of refrigerant. It may be actuated by a thermostatic element or self-actuated. View more Expansion Valve
November 2023
1
Marketplace 4820-01-454-6352
Request a Quotation from participating marketplace vendors
Related Documents 4820-01-454-6352 1+ Documents (More...)
BUY NE FedMall Updated Every Day 4820-01-454-6352 RQST NE Updated Every Day 4820-01-454-6352 RQST
Updated Every Day 4820-01-454-6352 RQST NE Related Documents 4820-01-454-6352 1+ Documents ( More...
Restrictions 4820-01-454-6352
4820-01-454-6352 is a Expansion Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4820-01-454-6352
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4820-01-454-6352
- US Navy (N9BC)
- Effective Date:
- 1 Jan 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 4820-01-454-6352
- Part Number
- Manufacturer
- Status
- EBFVE-A-ZP
- Manufacturer
- 78462 - Parker-Hannifin Corp (Active)
- Primary Buy
- Primary Buy
Datasheet 4820-01-454-6352
- Characteristic
- Specifications
- FIIG
- Specifications
- A07100
- Body Style [AAQL]
- Straight Thru
- Body Material [AAFZ]
- Brass
- Flow Control Device [ADQU]
- Stem And Integral Disk
- End Connection Quantity [ADQZ]
- 2
- First End Connection Type [ACKM]
- Unthreaded External Tube

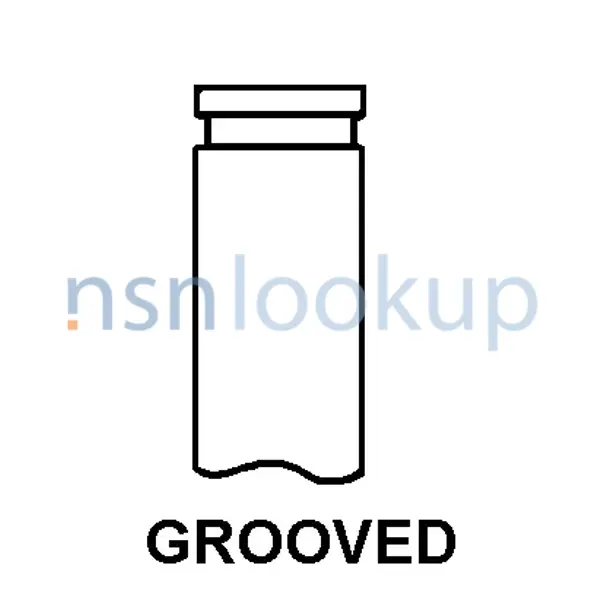

- First End Style Designator [ACKN]
- Grooved
- First End Outside Diameter Tube Accommodated [ACLH]
- 0.125 Inches Nominal
- Second End Relationship With First End [ACLR]
- Identical
- Valve Expansion Control Type [AFKK]
- Thermostatic
- Valve Evaporator Temp Range Designation [AFKL]
- Low
- Valve Pressure Limiting Device [AFKM]
- Not Included
- Refrigeration Capacity In Negative Kilo Calorie Per Hour [CXPJ]
- 7.000
- Bulb Media Type [AFKQ]
- Refrigerant 22
- Capillary Tube Length [AEVT]
- 1.500 Inches Nominal
- Bulb Mounting Method [AFKR]
- Clamp
- Bulb Length [AEVU]
- 6.000 Inches Nominal
- Bulb Diameter [AEVV]
- 0.250 Inches Nominal
- Valve Equalizer Location [AFKU]
- Internal
- Valve Equalizer Connection Type [AFKV]
- Solder Tube
- Valve Equalizer Connection Diameter [AFKW]
- 0.125 Inches Nominal
- Special Features [FEAT]
- Strainer Not Supplied To O.E.M.
Weapon Systems (WSDC) 4820-01-454-6352
DLA Procurement Analysis 4820-01-454-6352
- Last Stock Position:
- 2 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4820-01-454-6352
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jul 2023
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4820-01-454-6352
Freight Information 4820-01-454-6352
4820-01-454-6352 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051080. A Sub NMFC of Z. It has a NMFC Description of FAUCETS,BIBCOCKS,GATES VALVES. 4820-01-454-6352 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29300 which rates the freight between FCL and LCL. 4820-01-454-6352 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4820-01-454-6352 is not classified as a special type of cargo when transported by water. 4820-01-454-6352 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4820-01-454-6352
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 4820-01-454-6352 1 Records
Contracting Technical Data File (CTDF) 4820-01-454-6352 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
