4820-01-438-0480
Calibrated Flow Valve
4820014380480 014380480 6323384-12 8941-12 Q2360-05-12 6323384
A valve specifically designed to automatically maintain a predetermined discharge flow rate which may be adjustable within a specific range. It is designed to be used with various fluids and may be preset and/or adjustable. It may be in-line or cartridge (manifold) design. Excludes VALVE, REGULATING, FEED WATER; VALVE, REGULATING, FLUID PRESSURE; VALVE, REGULATING, FUEL OIL; VALVE, REGULATING, OIL PRESSURE, AUTOMATIC PILOT; VAVLE, REGULATING, TEMPERATURE; VALVE, ANGLE; and VALVE, GLOBE. View more Calibrated Flow Valve
November 2023
5
Marketplace 4820-01-438-0480
Request a Quotation from participating marketplace vendors
Related Documents 4820-01-438-0480 5+ Documents (More...)
-12 VALVE,CALIBRATED FLOW 1 EA NS Request Quotation Subscribe to View Vendor Details... 6323384-12 FLOW
Details... 6323384-12 VALVE,CALIBRATED FLOW 6 EA NS Request Quotation Subscribe to View Vendor Details
/fsg-61/fsc-6110/us
Calibrated Flow Valve 4820014380480 014380480 8941-12Q2360-05-126323384 A valve specifically https
Calibrated Flow Valve 4820014380480014380480 1 6323384-34 www.nsnlookup.com /fsg-48/fsc-4820/us
to automatically maintain -20 8941-04 6323384-4 6323384-22 Q2360-05-6 https//www.nsnlookup.com /fsg-
/fsg-48/fsc-4820/us 4820-01-438-0480 Calibrated Flow Valve 4820014380480 014380480 $1 a day Upgrade
Flow Valve 4820014380480 014380480 $1 a day Upgrade your Account Upgrade 4820-01-438-0480Calibrated
Flow Valve4820014380480 014380480 6323384 -12 8941-12 Q2360-05-12 6323384 A valve specifically designed
-1 8941-01 8941-1 Q2360-05-1 6323384 A valve specifically designed to automatically maintain a predetermined
Calibrated Flow Valve 4820014380480 014380480 -12 8941-12 Q2360-05-12 6323384 A valve specifically
Restrictions 4820-01-438-0480
4820-01-438-0480 is a Calibrated Flow Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4820-01-438-0480
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4820-01-438-0480
- US Navy (N9BC)
- Effective Date:
- 1 Jan 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
- Spain (YB01)
- Effective Date:
- 1 Jul 2003
Approved Sources 4820-01-438-0480
- Part Number
- Manufacturer
- Status
- 6323384-12
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Source Control
- Source Control
- 8941-12
- 98087 - Itt Aerospace Controls Llc (Active)
- Primary Buy
- Primary Buy
- Q2360-05-12
- 98939 - Aerocontrolex Group, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 6323384
- 53711 - Naval Sea Systems Command (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4820-01-438-0480
- Characteristic
- Specifications
- FIIG
- Specifications
- A21100
- End Connection Quantity [ADQZ]
- 2
- Body Material [AAFZ]
- Steel, Corrosion Resisting
- Body Style [AAQL]
- Straight Thru
- End Item Identification [AGAV]
- Ticonderoga Class Cg (47)
- First End Connection Type [ACKM]
- Threaded External Tube
- First End Style Designator [ACKN]
- Flared
- First End Thread Direction [ACLL]
- Right-Hand
- First End Thread Class [ACLK]
- 3A
- First End Thread Size And Series/Type Designator [ACLJ]
- 9/16-18 Unjf
- First End Outside Diameter Tube Accommodated [ACLH]
- 0.375 Inches Nominal
- First End Seat Angle In Deg [ACTE]
- 37.0
- Flow Control Device [ADQU]
- Poppet
- Second End Connection Type [ACLS]
- Threaded External Tube

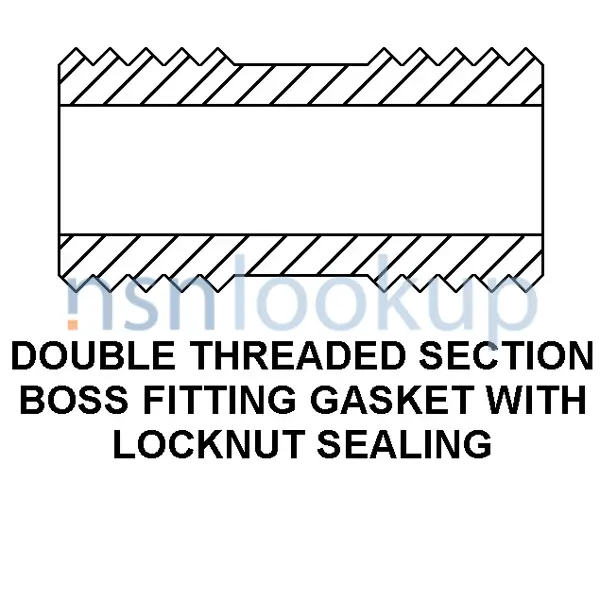

- Second End Style Designator [ACLT]
- Double Threaded Section Boss Fitting Gasket With Locknut Sealing
- Second End Thread Class [ACMR]
- 3A
- Second End Thread Direction [ACMS]
- Right-Hand
- Second End Outside Diameter Tube Accommodated [ACMP]
- 0.375 Inches Nominal
- Second End Relationship With First End [ACLR]
- Not Identical
- Second End Seat Angle In Deg [ACTF]
- 37.0
- Second End Thread Size And Series/Type Designator [ACMQ]
- 9/16-18 Unjf
- Outside Surface Treatment [AAJP]
- Passivated
- Valve Discharge Flow Rate [ADSY]
- 1.0 Gallons Per Minute
Weapon Systems (WSDC) 4820-01-438-0480
DLA Procurement Analysis 4820-01-438-0480
- Last Stock Position:
- 3 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4820-01-438-0480
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4820-01-438-0480
Freight Information 4820-01-438-0480
4820-01-438-0480 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051080. A Sub NMFC of Z. It has a NMFC Description of FAUCETS,BIBCOCKS,GATES VALVES. 4820-01-438-0480 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29300 which rates the freight between FCL and LCL. 4820-01-438-0480 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4820-01-438-0480 is not classified as a special type of cargo when transported by water. 4820-01-438-0480 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
