4820-01-420-4145

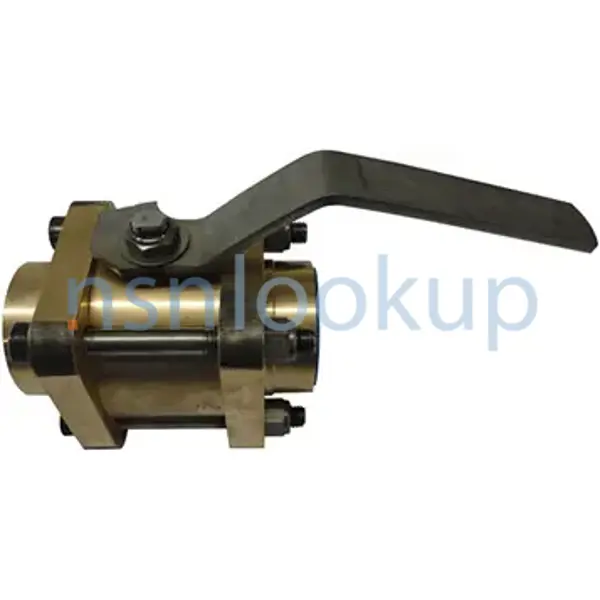

Ball Valve
4820014204145 014204145 803-5001003-A341 1/2 INCH 5001003-A341 5001003
A multi-ported, nonlubricated valve designed to provide straight through flow or ability to direct a number of flows or pressure through a single valve. The flow is controlled by the rotation of a ported ball within a suitable ported seat(s). The ball is usually engaged by a stem. It is normally operated in an open or closed position. Excludes VALVE, CHECK. View more Ball Valve
November 2023
1
Marketplace 4820-01-420-4145
Request a Quotation from participating marketplace vendors
Related Documents 4820-01-420-4145 5+ Documents (More...)
/fsg-48/fsc-4820/us 4820-01-420-4145 Ball Valve 4820014204145014204145 803-5001003-A341 1/2 INCH5001003
Ball Valve 4820014204145014204145 803-5001003-A341 1/2 INCH5001003 64 803-5001003-B312-64 Restrictions
Ball Valve 4820014204145 014204145 $1 a day Upgrade your Account Upgrade 4820-01-420-4145Ball Valve4820014204145
014204145 803-5001003-A341 1/2 INCH 5001003-A341 5001003 A multi-ported, nonlubricated valve designed
Restrictions 4820-01-420-4145
4820-01-420-4145 is a Ball Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4820-01-420-4145
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4820-01-420-4145
- US Navy (N9BC)
- Effective Date:
- 1 Jan 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 4820-01-420-4145
- Part Number
- Manufacturer
- Status
- 803-5001003-A341 1/2 INCH
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Incomplete Reference
- Incomplete Reference
- 5001003-A341
- 53711 - Naval Sea Systems Command (Active)
- Primary Buy
- Primary Buy
- 5001003
- 53711 - Naval Sea Systems Command (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4820-01-420-4145
- Characteristic
- Specifications
- FIIG
- Specifications
- A046B0
- Material [MATT]
- Bronze Body
- Material [MATT]
- Titanium Flow Control Device
- Style Designator [STYL]
- Straight Thru Flanged Ends
- Face To Face Distance [CWCF]
- 8.500 Inches
- Valve Size [CCFG]
- 0.500 Inches
- Maximum Operating Pressure [CQGM]
- 700.0 Pounds Per Square Inch Single Response
- Valve Operation Method [AQLR]
- Manual
- Connection Type [AWLS]
- Flange All Ends
- Flange Shape [ARKN]
- Round With Holes All Ends
- Nominal Outside Diameter [CWCD]
- 3.562 Inches All Ends
- Nominal Thickness [CWCK]
- 0.688 Inches All Ends
- Bolt Hole Quantity [AECS]
- 6 All Ends
- Bolt Hole Nominal Diameter [CWCQ]
- 0.562 Inches All Ends
- Bolt Circle Nominal Diameter [CWCT]
- 2.438 Inches All Ends
- Flange Face Design [CWDF]
- Plain All Ends
