4820-01-407-6146
Globe Valve
4820014076146 014076146 SS-130S
A valve with one inlet and one outlet connection with outlet flow parallel to inlet flow. The flow is controlled by the action of a stem which lifts the disk perpendicularly off the center axis of its seat. The stem is at a 90 degree (1.5708 radians) angle to axis of flow. Excludes VALVE, STOP-CHECK; COCK, SHUTOFF, SCREW STEM; and VALVE, SOLENOID. View more Globe Valve
May 2023
5
Marketplace 4820-01-407-6146
Request a Quotation from participating marketplace vendors
Related Documents 4820-01-407-6146 2+ Documents (More...)
Day 4820-01-407-6146 RQST Updated Every Day 4820-01-407-6146 RQST NE Related Documents 4820-01-407-6146

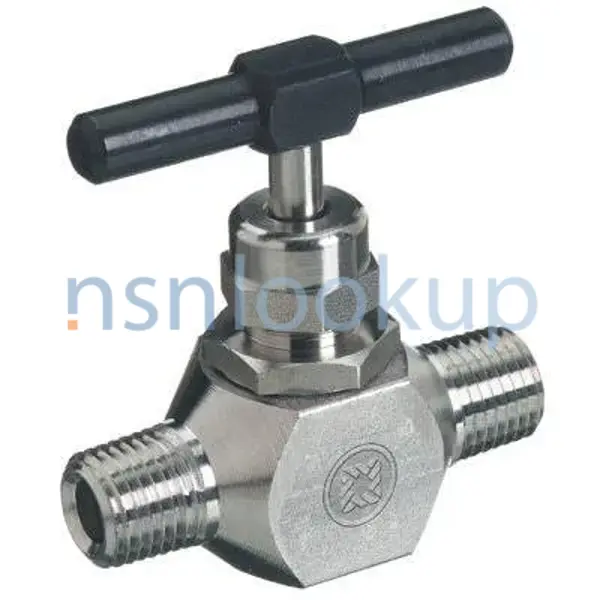

,SS-130S Photo 1/2 NSN 4820-01-407-6146 (Identification) 2/2 - - 1.
Restrictions 4820-01-407-6146
4820-01-407-6146 is a Globe Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4820-01-407-6146
- US Air Force (FGGC)
- Effective Date:
- 1 Jan 2005
- Former MOE Rule:
- FGAX
- Poland (WP01)
- Effective Date:
- 1 Aug 2011
Approved Sources 4820-01-407-6146
- Part Number
- Manufacturer
- Status
- SS-130S
- Manufacturer
- 16166 - Western Enterprises Div Of Scott And (Active)
- Primary Buy
- Primary Buy
Datasheet 4820-01-407-6146
- Characteristic
- Specifications
- FIIG
- Specifications
- A046B0
- End Item Identification [AGAV]
- Acft, Type Mc130e
- Connection Style [AHNC]
- Plain,Optional End(Pipe) All Ends
- Connection Type [AWLS]
- Threaded Internal Pipe All Ends
- Maximum Operating Pressure [CQGM]
- 6000.0 Pounds Per Square Inch Single Response
- Maximum Operating Temp [AEHZ]
- 250.0 Deg Fahrenheit Single Response
- Nominal Thread Size [CQJX]
- 0.250 Inches All Ends
- Special Features [FEAT]
- Valve Matl: 316 Stainless Steel With Polytetrafluoroethylene Packing; Metal To Metal Seat; For Corrosive Gases
- Thread Series Designator [THSD]
- Npt All Ends
- Style Designator [STYL]
- Straight Thru
- Thread Direction [AAJF]
- Right-Hand All Ends
Weapon Systems (WSDC) 4820-01-407-6146
DLA Procurement Analysis 4820-01-407-6146
Management Data 4820-01-407-6146
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- LG
- C-130 HERCULES
- Price Validation Code:
- E
- The current standard price is an estimated price.
Estimated Price challenges are allowed but follow procedures in para 60.b. (3) of section L of this manual.
This code will be changed to a P code upon notification of a contract price or this code will be changed to an updated code upon determination of a valid price.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Similar Supply Items to 4820-01-407-6146
Freight Information 4820-01-407-6146
4820-01-407-6146 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051080. A Sub NMFC of Z. It has a NMFC Description of FAUCETS,BIBCOCKS,GATES VALVES. 4820-01-407-6146 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29300 which rates the freight between FCL and LCL. 4820-01-407-6146 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4820-01-407-6146 is not classified as a special type of cargo when transported by water. 4820-01-407-6146 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4820-01-407-6146
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 4820-01-407-6146 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
