4820-01-372-8139
System Pressure Regulating Valve
4820013728139 013728139 N-30261-B 12378851
A value designed to automatically maintain within close limits a predetermined pressure within a closed system regardless of the higher fluctuating or constant inlet pressure. The excess pressure is by-passed to the accumulator or reservoir in lieu of passing through the entire system. It is designed primarily for use in refrigeration and air conditioning systems. Excludes VALVE, REGULATING, FLUID PRESSURE and VALVE, CALIBRATED FLOW. View more System Pressure Regulating Valve
Managed by United States
NSN Created on 19 Mar 1993
Data Last Changed
November 2023
November 2023
NATO Update Count
19
19
NATO Data Quality
Marketplace 4820-01-372-8139
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 4820-01-372-8139 3+ Documents (More...)
N-30261-B 12378851 A value designed to automatically maintain within close limits a predetermined pressure

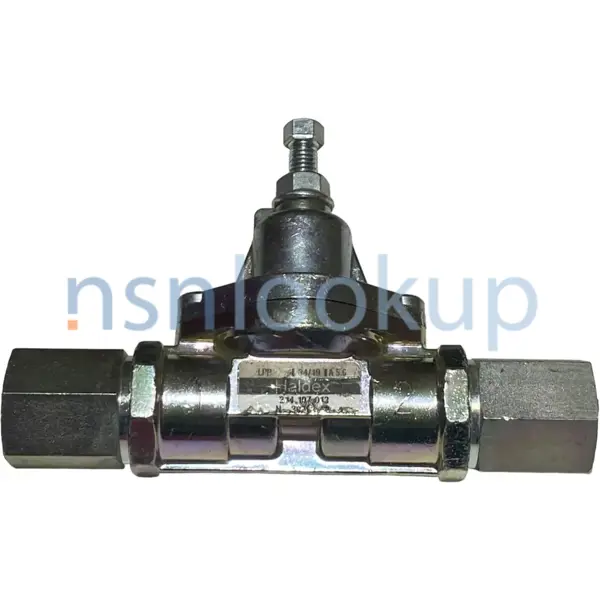

Photo 1/3 NSN 4820-01-372-8139 (Identification) 2/3 NSN 4820-01-372-8139 (Identification) 3/3 -
/fsg-48/fsc-4820/us 4820-01-372-8139 System Pressure Regulating Valve 013728139 N-30261-B12378851 A
Photo 1/3 NSN 4820-01-372-8139 (Identification) 2/3 NSN 4820-01-372-8139 (Identification) 3/3 -
/fsg-48/fsc-4820/us 4820-01-372-8139 System Pressure Regulating Valve 013728139 N-30261-B12378851 A
9999-14-500-7761 is a System Pressure Regulating Valve Similar Supply Items to 9999-14-500-7761 4820-01-372-8139
9999-14-501-3184 is a System Pressure Regulating Valve Similar Supply Items to 9999-14-501-3184 4820-01-372-8139
Restrictions 4820-01-372-8139
4820-01-372-8139 is a System Pressure Regulating Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4820-01-372-8139
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4820-01-372-8139
- US Army (A920)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Air Force (FXGC)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- FXAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Singapore (YJ01)
- Effective Date:
- 1 Apr 2008
- New Zealand (ZE01)
- Effective Date:
- 1 Aug 1998
- Greece (ZU01)
- Effective Date:
- 1 Oct 2006
Approved Sources 4820-01-372-8139
- Part Number
- Manufacturer
- Status
- N-30261-B
- Manufacturer
- 06721 - Haldex Brake Products Corporation (Active)
- Primary Buy
- Primary Buy
- 12378851
- 0FW39 - Bae Systems Tactical Vehicle Systems (Active)
- Secondary Buy
- Secondary Buy
- 12378851
- 076M6 - Bae Systems Land & Armaments L.P. (Active)
- Secondary Buy
- Secondary Buy
- 12378851
- 75Q65 - Oshkosh Defense Llc (Active)
- Secondary Buy
- Secondary Buy
- 12378851
- 45152 - Oshkosh Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 4820013728139
- A00AM - E.C.A Etablissement Central Des (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 12378851
- 19207 - U S Army Tank Automotive Command (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 4820-01-372-8139
- Characteristic
- Specifications
- FIIG
- Specifications
- A21100
- Body Material [AAFZ]
- Steel
- Maximum Inlet Pressure Rating [AEVZ]
- 174.0 Pounds Per Square Inch
- Filter [AEWF]
- Not Included
- Flow Control Device [ADQU]
- Disk
- End Connection Quantity [ADQZ]
- 2
- First End Connection Type [ACKM]
- Threaded Internal Pipe
- First End Style Designator [ACKN]
- Plain
- First End Thread Size And Series/Type Designator [ACLJ]
- 1/2-14 Npt
- First End Thread Direction [ACLL]
- Right-Hand
- Second End Relationship With First End [ACLR]
- Identical
- Body Style [AAQL]
- Straight Thru
- Media For Which Designed [ACKL]
- Hydraulic Oil
- Regulation Type [AEVN]
- Automatic Single Stage
- Valve Loading Method [AEVR]
- Spring
Weapon Systems (WSDC) 4820-01-372-8139
DLA Procurement Analysis 4820-01-372-8139
- Last Stock Position:
- 351 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4820-01-372-8139
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 4820-01-372-8139
Freight Information 4820-01-372-8139
4820-01-372-8139 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051080. A Sub NMFC of Z. It has a NMFC Description of FAUCETS,BIBCOCKS,GATES VALVES. 4820-01-372-8139 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29300 which rates the freight between FCL and LCL. 4820-01-372-8139 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 736 for ocean manifesting and military sealift. 4820-01-372-8139 is not classified as a special type of cargo when transported by water. 4820-01-372-8139 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4820-01-372-8139
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 4820-01-372-8139 17 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7L323F7043
- 13 Jul 2023
- Subscribe
- 96
- Subscribe
- Subscribe
- Subscribe
- SPE7L323F7043
- 13 Jul 2023
- Subscribe
- 96
- Subscribe
- Subscribe
- Subscribe
- SPE7L423V1421
- 19 Apr 2023
- Subscribe
- 94
- Subscribe
- Subscribe
- Subscribe
- SPE7L423V1085
- 23 Feb 2023
- Subscribe
- 117
- Subscribe
- Subscribe
- Subscribe
- SPE7L122F589Z
- 16 May 2022
- Subscribe
- 101
- Subscribe
- Subscribe
- Subscribe
- SPE7L122F589Z
- 16 May 2022
- Subscribe
- 101
- Subscribe
- Subscribe
- Subscribe
- SPE7L122F458K
- 14 Mar 2022
- Subscribe
- 103
- Subscribe
- Subscribe
- Subscribe
- SPE7L122F458K
- 14 Mar 2022
- Subscribe
- 103
- Subscribe
- Subscribe
- Subscribe
- SPE7L122F113G
- 03 Dec 2021
- Subscribe
- 56
- Subscribe
- Subscribe
- Subscribe
- SPE7L122F113S
- 03 Dec 2021
- Subscribe
- 173
- Subscribe
- Subscribe
- Subscribe
- SPE7L122F113S
- 03 Dec 2021
- Subscribe
- 173
- Subscribe
- Subscribe
- Subscribe
- SPE7L122F113G
- 03 Dec 2021
- Subscribe
- 56
- Subscribe
- Subscribe
- Subscribe
- SPE7L121F225RP00001
- 11 Feb 2021
- Subscribe
- 84
- Subscribe
- Subscribe
- Subscribe
- SPE7L121F225RP00001
- 11 Feb 2021
- Subscribe
- 84
- Subscribe
- Subscribe
- Subscribe
- SPE7L218V1150
- 05 Apr 2018
- Subscribe
- 258
- Subscribe
- Subscribe
- Subscribe
- SPE7L518V0731
- 24 Jan 2018
- Subscribe
- 182
- Subscribe
- Subscribe
- Subscribe
- SPE7L117V6883P00001
- 26 Jul 2017
- Subscribe
- 199
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 4820-01-372-8139 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
