4820-01-336-5510

Fluid Pressure Regulating Valve

4820013365510 013365510 40320-002

A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft. View more Fluid Pressure Regulating Valve

4820-01-336-5510 VALVE,REGULATING,FLUID PRESSURE 4820013365510 013365510

Managed by United States
NSN Created on 27 Mar 1991
Data Last Changed
November 2023
NATO Update Count
4
NATO Data Quality
AAQL Style A1 for 4820-01-336-5510 1/4
NSN 4820-01-336-5510 (Identification) 1/4
ACKN Style G1 for 4820-01-336-5510 2/4
NSN 4820-01-336-5510 (Identification) 2/4
ACKT Style 3 for 4820-01-336-5510 3/4
NSN 4820-01-336-5510 (Identification) 3/4
ACLT Style G3 for 4820-01-336-5510 4/4
NSN 4820-01-336-5510 (Identification) 4/4

4820-01-336-5510 Stock and Availability Marketplace 4820-01-336-5510

Need Help?
Request a Quotation from participating marketplace vendors
FedMallFedMall.mil Updated Every 15 Minutes
4820-01-336-5510 BUY NE FedMallFedMall.mil
eBay Updated Every Day
4820-01-336-5510 RQST NE eBay
eBay Updated Every Day
4820-01-336-5510 RQST eBay
Amazon Updated Every Day
4820-01-336-5510 RQST NE Amazon

4820-01-336-5510 Related Documents Related Documents 4820-01-336-5510 2+ Documents (More...)

(Identification) 1/4 NSN 4820-01-336-5510 (Identification) 2/4 NSN 4820-01-336-5510 (Identification
BUY NE FedMall Updated Every Day 4820-01-336-5510 RQST NE Updated Every Day 4820-01-336-5510 RQST
Updated Every Day 4820-01-336-5510 RQST NE Related Documents 4820-01-336-5510 2+ Documents ( More...
0752Light Lens6210011110752 011110752 52721-40320 https//www.nsnlookup.com /fsg-48/fsc-4820/us 4820-01-336-5510
Fluid Pressure Regulating Valve 013365510 Upgrade your Account Upgrade 4820-01-336-5510Fluid Pressure
Regulating Valve4820013365510 013365510 40320 RQST NE Updated Every Day 4820-01-336-5510 RQST https/

4820-01-336-5510 Demil Restrictions 4820-01-336-5510

DEMIL: Q | DEMILI: 3 | CRITICALITY: X | HMIC: N | PMIC: A | EDC: | ADPEC:

4820-01-336-5510 is a Fluid Pressure Regulating Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. This item does not contain a precious metal.

4820-01-336-5510 HTS and ScheduleB Import and Export 4820-01-336-5510

4820-01-336-5510 End Users End Users 4820-01-336-5510

US Navy (N9BC)
Effective Date:
1 Jan 2005
Former MOE Rule:
N9CD
Supplementary Collaborators:
HDHX

4820-01-336-5510 Manufacturers Approved Sources 4820-01-336-5510

4820-01-336-5510 Technical Data Datasheet 4820-01-336-5510

Characteristic
Specifications
FIIG
A21100
Body Material [AAFZ]
Steel
Temp Rating [AZKQ]
750.0 Deg Fahrenheit Nominal
Filter [AEWF]
Not Included
Seat Material [ACSH]
Nickel Copper Alloy, Qq-N-288
Stem Material [ABEP]
Nickel Copper Alloy, Qq-N-281
Flow Control Device [ADQU]
Disk
Flow Control Device Material [ADQV]
Nickel Copper Alloy, Qq-N-288
End Connection Quantity [ADQZ]
2
First End Connection Type [ACKM]
Plain Face Flange
First End Style Designator [ACKN]
Plain
First End Flange Shape Style [ACKT]
Round W/ Bolt Holes
First End Bolt Hole Quantity [ACKZ]
8
First End Flange Outside Diameter [AAHF]
8.250 Inches Nominal
First End Flange Thickness [ACKU]
1.250 Inches Nominal
First End Bolt Hole Diameter [ACLA]
0.875 Inches Nominal
First End Bolt Circle Diameter [ACLB]
6.625 Inches Nominal
Second End Relationship With First End [ACLR]
Not Identical
Second End Connection Type [ACLS]
Raised Face Flange

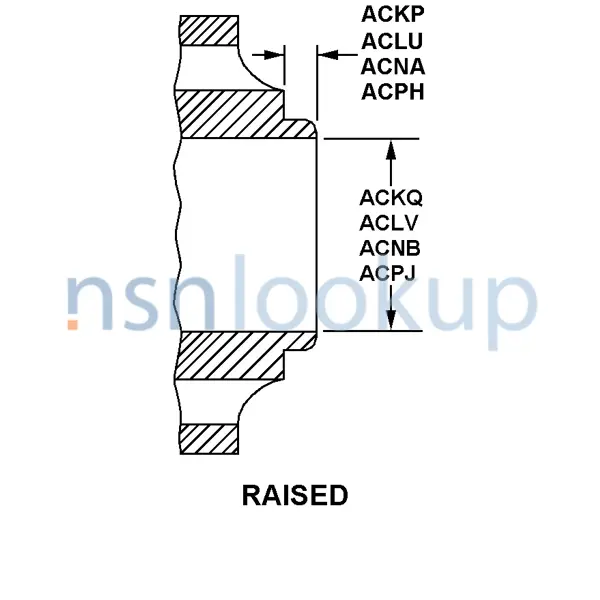

Second End Style Designator [ACLT]
Raised
Second End Raised Face Height [ACLU]
0.062 Inches Nominal
Second End Raised Face Diameter [ACLV]
5.000 Inches Nominal
Second End Flange Shape Style [ACLY]
Round W/ Bolt Holes
Second End Bolt Hole Quantity [ACMF]
4
Second End Flange Outside Diameter [AAHV]
7.500 Inches Nominal
Second End Flange Thickness [ACLZ]
0.750 Inches Nominal
Second End Bolt Hole Diameter [ACMG]
0.750 Inches Nominal
Second End Bolt Circle Diameter [ACMH]
6.000 Inches Nominal
Body Style [AAQL]
Straight Thru
Face To Face Distance [ADQL]
15.281 Inches Nominal
Regulation Type [AEVN]
Automatic Single Stage
Valve Loading Method [AEVR]
Spring
