4820-01-333-0780

Check Valve

4820013330780 013330780 1297C9051 CVF-4MSS 196B8029 GEC-4101

A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design. View more Check Valve

4820-01-333-0780 VALVE,CHECK 4820013330780 013330780

Managed by United States
NSN Created on 23 Jan 1991
Data Last Changed
November 2023
NATO Update Count
17
NATO Data Quality
4820-01-333-0780 VALVE,CHECK 4820013330780 013330780 1/2

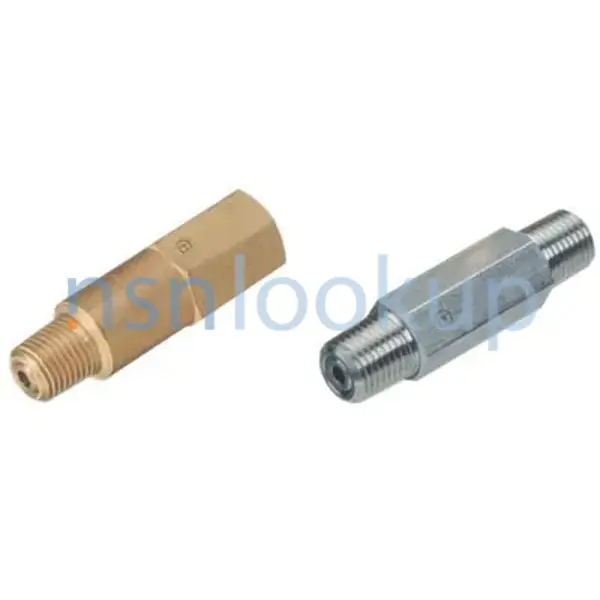

4820-01-333-0780 Photo 1/2
STYL Style A2 for 4820-01-333-0780 2/2
NSN 4820-01-333-0780 (Identification) 2/2

4820-01-333-0780 Stock and Availability Marketplace 4820-01-333-0780

Need Help?
Request a Quotation from participating marketplace vendors
Subscribe to View Vendor Details...
CVF-4MSS VALVE,CHECK 10 EA NS Request Quotation
eBay Updated Every Day
4820-01-333-0780 RQST NE eBay
eBay Updated Every Day
4820-01-333-0780 RQST eBay
Amazon Updated Every Day
4820-01-333-0780 RQST NE Amazon

4820-01-333-0780 Related Documents Related Documents 4820-01-333-0780 5+ Documents (More...)

https//www.nsnlookup.com
/fsg-48/fsc-4820/us
4820-01-333-0780 Check Valve 4820013330780 013330780
1297C9051 CVF-4MSS 196B8029 GEC-4101 A valve permitting flow in one direction only.
Photo 1/2 NSN 4820-01-333-0780 (Identification) 2/2 - - 1.
CVF-4MSS VALVE,CHECK 10 EA NS Request Quotation Updated Every Day 4820-01-333-0780 RQST NE Updated Every
https//www.nsnlookup.com
/fsg-48/fsc-4820/us
4820-01-136-2745 Check Valve 4820011362745 011362745
web browser . 4820-01-136-2745Check Valve4820011362745 011362745 Cancelled - Replaced by NSN 4820-01-333-0780
www.nsnlookup.com /fsg-17/fsc-1730/it 1730-15-185-7726 Valvola Di Non Rito 1730151857726 151857726 Every Day 4820-01-333-0780
27454820011362745011362745 is a valve permitting https//www.nsnlookup.com /fsg-48/fsc-4820/us 4820-01-333-0780
https//www.nsnlookup.com
/fsg-17/fsc-1730/it
1730-15-185-7726 Valvola Di Non Rito 1730151857726 151857726
enable JavaScript in your web browser . 1730-15-185-7726Valvola Di Non Rito1730151857726 151857726 CVF-4MSS
https//www.nsnlookup.com /fsg-48/fsc-4820/us 4820-01-333-0780 Check Valve 4820013330780 013330780 a
day Upgrade your Account Upgrade 4820-01-333-0780Check Valve4820013330780 013330780 1297C9051 CVF-4MSS
https//www.nsnlookup.com
/fsg-56/fsc-5670/fr
5670-14-306-1685 Levier Articulation 5670143061685 143061685
306-1685 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-56/fsc-5670/fr 5670-14-306-1685 -1 CVF-4MSS
a day Upgrade your Account Upgrade 4820-01-465-3238Check Valve4820014653238 014653238 029616 -1 CVF-4MSS
1685 Levier Articulation 5670143061685143061685 https//www.nsnlookup.com /fsg-48/fsc-4820/us 4820-01-333-0780
https//www.nsnlookup.com
/fsg-48/fsc-4820/us
4820-01-465-3238 Check Valve 4820014653238 014653238,029616-1
$1 a day Upgrade your Account Upgrade 4820-01-465-3238Check Valve4820014653238 014653238 029616-1 CVF-4MSS
permitting flow day Upgrade your Account Upgrade 5998 https//www.nsnlookup.com /fsg-48/fsc-4820/us 4820-01-333-0780
Check Valve 4820013330780 013330780 0780Check Valve4820013330780 0133307801297C9051CVF-4MSS https

4820-01-333-0780 Demil Restrictions 4820-01-333-0780

DEMIL: A | DEMILI: 1 | CRITICALITY: X | HMIC: N | PMIC: A | EDC: | ADPEC: 0

4820-01-333-0780 is a Check Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

4820-01-333-0780 HTS and ScheduleB Import and Export 4820-01-333-0780

Schedule B
Subscribe to View Schedule B
HTS Code
Subscribe to View HTS Code

4820-01-333-0780 End Users End Users 4820-01-333-0780

US Air Force (FXGC)
Effective Date:
1 Apr 2006
Former MOE Rule:
FXAX
AMC 3 AMSC C IMC Z IMCACTY SX
US Navy (N9BC)
Effective Date:
1 Dec 2013
Supplementary Collaborators:
GG
AMC 3 AMSC C IMC Z IMCACTY GH
Poland (WP01)
Effective Date:
1 Sep 2007
Spain (YB01)
Effective Date:
1 Jun 2002
Singapore (YJ01)
Effective Date:
1 Nov 1995
Malaysia (YW01)
Effective Date:
1 Jan 2008
Canada (ZC01)
Effective Date:
1 Aug 2003
Republic of Korea (ZH01)
Effective Date:
1 Aug 2003
Portugal (ZP01)
Effective Date:
1 Jun 1997
Italy (ZR01)
Effective Date:
1 Dec 2007
Greece (ZU01)
Effective Date:
1 May 2008

4820-01-333-0780 Manufacturers Approved Sources 4820-01-333-0780

Part Number
Manufacturer
Status
CVF-4MSS
16166 - Western Enterprises Div Of Scott And (Active)
Primary Buy
RNCC 3 RNVC 2 DAC 2
GEC-4101
0A1K0 - Western Enterprises (Active)
Canceled/Obsolete
RNCC 5 RNVC 9 DAC 5
196B8029
05606 - General Dynamics-Ots, Inc. (Active)
Vendor Drawing
RNCC 7 RNVC 2 DAC 2
1297C9051
05606 - General Dynamics-Ots, Inc. (Active)
Advisory Reference
RNCC C RNVC 1 DAC 6

4820-01-333-0780 Technical Data Datasheet 4820-01-333-0780

Characteristic
Specifications
FIIG
A530B0
End Item Identification [AGAV]
1730-01-200-2301
Connection Style [AHNC]
Plain (Pipe) 2Nd End
Connection Type [AWLS]
Threaded Internal Pipe 1St End
Connection Type [AWLS]
Threaded External Pipe 2Nd End
Flow Control Device [ADQU]
Ball
Material [MATT]
Steel Corrosion Resisting Body
Maximum Operating Pressure [CQGM]
6000.0 Pounds Per Square Inch Single Response
Mounting Position [BBJX]
Horizontal Or Vertical
Nominal Thread Size [CQJX]
0.250 Inches 1St End
Nominal Thread Size [CQJX]
0.250 Inches 2Nd End
Thread Series Designator [THSD]
Npt 1St End
Thread Series Designator [THSD]
Npt 2Nd End
Valve Operation Method [AQLR]
Automatic
Style Designator [STYL]
Straight Thru
Thread Direction [AAJF]
Right-Hand 2Nd End
Thread Direction [AAJF]
Right-Hand 1St End

4820-01-333-0780 Weapon Systems (WSDC) Weapon Systems (WSDC) 4820-01-333-0780

Subscribe
View WSDC
Subscribe
View Data

4820-01-333-0780 Stock, Inventory and Procurement DLA Procurement Analysis 4820-01-333-0780

Last Stock Position:
25 In Stock
DLA Administrative Lead Time:
Subscribe
DLA Production Lead Time:
Subscribe
Subscribe to View DLA Inventory and Forecast...

4820-01-333-0780 Management Data Management Data 4820-01-333-0780

Subscribe
View Prices
Effective Date
Organization
Unit of Issue
Unit Price
Qty Unit Pack
Oct 2022
Department of the Air Force (DF)
EA
Subscribe
1
Oct 2021
Department of the Air Force (DF)
EA
Subscribe
1
Oct 2020
Department of the Air Force (DF)
EA
Subscribe
1
Feb 2020
Department of the Air Force (DF)
EA
Subscribe
1

Air Force Air Force

Fund:
SF
Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
Budget:
9
57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
Aggregation Code:
SX
SICA RESIDUAL MMAC-OC-ALC
Price Validation Code:
P
The current standard price is the initial negotiated provisioned price.
This is the price paid by DoD for the item as the result of price negotiation of the Provisioned Item Order (PIO) or other initial negotiated price.
ZOP or Standard Price challenges are permissible but should be supported with adequate justification.
Expendability
Recoverability
Repairability:
N
Expendable. Condemn at User. Stock Fund (except Munitions).

Navy Navy

Cognizance:
9B
Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

4820-01-333-0780 Related Items NATO Stock Numbers Related to 4820-01-333-0780

4820-66-032-2602 4820-99-226-6712 4820-12-376-2998 4810-12-304-9438 4820-99-745-9058 4820-99-993-4992 4820-14-561-5821 4820-21-912-4474 4820-34-031-1491 4820-66-100-0013 4820-66-140-4603 4820-22-608-7887 4820-99-142-5128 4820-37-501-5120 4820-98-104-9586 4820-99-342-0921 4820-32-073-9443 4820-99-762-9214

4820-01-333-0780 Freight Data Freight Information 4820-01-333-0780

4820-01-333-0780 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051080. A Sub NMFC of Z. It has a NMFC Description of FAUCETS,BIBCOCKS,GATES VALVES. 4820-01-333-0780 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29300 which rates the freight between FCL and LCL. 4820-01-333-0780 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4820-01-333-0780 is not classified as a special type of cargo when transported by water. 4820-01-333-0780 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

4820-01-333-0780 Packaging Data Packaging Data 4820-01-333-0780

Responsible Activity
Packaging Data Source
Primary Inventory Control Activity (PICA)
--

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation
--
--
Bare Metal Item
Over 10lb
Less than 85G
No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying
1
--
--
--
--
Any Suitable Process
Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking
No Requirement
--
--
--
PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container
--
