4820-01-320-1223
Safety Relief Valve
4820013201223 013201223 MIL-DTL-24332 YB2385FG684 1385 B/M2385FG684 MIL-V-24332
A valve designed to automatically release excessive pressures. It is actuated by static pressure upstream of the valve and is used as a safety valve or relief valve, and may be set to close at a predetermined pressure. It is not designed for regulation of continuously fluctuating loads. It may be inline or cartridge (manifold) design. Excludes VALVE (1), RELIEF, PRESSURE AND TEMPERATURE. View more Safety Relief Valve
Managed by United States
NSN Created on 19 May 1990
Data Last Changed
November 2023
November 2023
NATO Update Count
10
10
NATO Data Quality
Marketplace 4820-01-320-1223
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 4820-01-320-1223 5+ Documents (More...)
MIL-DTL-24332 YB2385FG684 1385 B/M2385FG684 MIL-V-24332 A valve designed to automatically release excessive

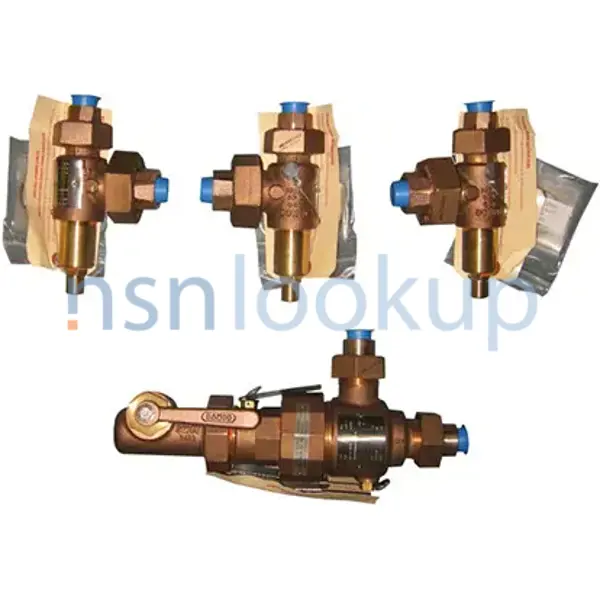

Photo 1/2 NSN 4820-01-320-1223 (Identification) 2/2 - - 1.
MIL-V-24332 VALVE,SAFETY RELIEF 8 EA NS Request Quotation FedMall Updated Every 15 Minutes 4820-01-320
Photo 1/2 NSN 4820-01-320-1223 (Identification) 2/2 - - 1.
MIL-V-24332 VALVE,SAFETY RELIEF 8 EA NS Request Quotation FedMall Updated Every 15 Minutes 4820-01-320
B16.5 MIL-V-24332 A valve designed to automatically release excessive pressures.
MIL-V-24332 VALVE,SAFETY RELIEF 8 EA NS Request Quotation B165 VALVE,SAFETY RELIEF 219 EA NS Request
GRADE B 1IN 65PSI A valve designed MIL-V-24332 A valve GRADE B 1IN 65PSI A valve designed MIL-V -24332
MIL-V-24332 VALVE,SAFETY RELIEF 8 EA NS Request Quotation B165 VALVE,SAFETY RELIEF 219 EA NS Request
GRADE B 1IN 65PSI A valve designed MIL-V-24332 A valve GRADE B 1IN 65PSI A valve designed MIL-V -24332
R10AD11D107BM1 MIL-V-24332 A valve designed to automatically release excessive pressures.
MIL-V-24332 VALVE,SAFETY RELIEF 8 EA NS Request Quotation FedMall Updated Every 15 Minutes 4820-01-365
GRADE B 1IN 65PSI A valve designed MIL-V-24332 A valve GRADE B 1IN 65PSI A valve designed MIL-V -24332
MIL-V-24332 VALVE,SAFETY RELIEF 8 EA NS Request Quotation FedMall Updated Every 15 Minutes 4820-01-365
GRADE B 1IN 65PSI A valve designed MIL-V-24332 A valve GRADE B 1IN 65PSI A valve designed MIL-V -24332
MIL-V-24332 A valve designed to automatically release excessive pressures.
MIL-V-24332 VALVE,SAFETY RELIEF 8 EA NS Request Quotation FedMall Updated Every 15 Minutes 4820-01-104
GRADE B 1IN 65PSI A valve designed MIL-V-24332 A valve GRADE B 1IN 65PSI A valve designed MIL-V
MIL-V-24332 VALVE,SAFETY RELIEF 8 EA NS Request Quotation FedMall Updated Every 15 Minutes 4820-01-104
GRADE B 1IN 65PSI A valve designed MIL-V-24332 A valve GRADE B 1IN 65PSI A valve designed MIL-V
20294 10T14PSI MIL-V-24332 A valve designed to automatically release excessive pressures.
MIL-V-24332 VALVE,SAFETY RELIEF 8 EA NS Request Quotation FedMall Updated Every 15 Minutes 4820-01-284
MIL-V-24332 VALVE,SAFETY RELIEF 8 EA NS Request Quotation FedMall Updated Every 15 Minutes 4820-01-104
MIL-V-24332 VALVE,SAFETY RELIEF 8 EA NS Request Quotation FedMall Updated Every 15 Minutes 4820-01-284
MIL-V-24332 VALVE,SAFETY RELIEF 8 EA NS Request Quotation FedMall Updated Every 15 Minutes 4820-01-104
Restrictions 4820-01-320-1223
4820-01-320-1223 is a Safety Relief Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4820-01-320-1223
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4820-01-320-1223
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 4820-01-320-1223
- Part Number
- Manufacturer
- Status
- YB2385FG684
- Manufacturer
- 35795 - Leslie Controls, Inc. (Active)
- Primary Buy
- Primary Buy
- MIL-DTL-24332
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 1385 B/M2385FG684
- 35795 - Leslie Controls, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-V-24332
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4820-01-320-1223
- Characteristic
- Specifications
- FIIG
- Specifications
- A046B0
- Adjustable Pressure Range [CQCY]
- +30.0/+50.0 Pounds Per Square Inch
- Bolt Hole Nominal Diameter [CWCQ]
- 0.562 Inches All Ends
- Bolt Hole Quantity [AECS]
- 4 2Nd End
- Bolt Hole Quantity [AECS]
- 6 1St End
- Bonnet Type [ADSR]
- Inside Screw
- Bonnet Attachment Method [ADST]
- Threaded
- Bolt Circle Nominal Diameter [CWCT]
- 3.312 Inches 1St End
- Bolt Circle Nominal Diameter [CWCT]
- 3.375 Inches 2Nd End
- Connection Type [AWLS]
- Flange All Ends
- Disk Loading Method [ADSU]
- Spring
- Furnished Items And Quantity [TMQY]
- 1 Lever
- Features Provided [CBBL]
- Pressure Tight Outlet Side
- First Connection Face To Centerline Distance [CWCL]
- 3.750 Inches
- Flange Face Design [CWDF]
- Plain All Ends
- Flange Shape [ARKN]
- Round With Holes All Ends
- Flow Control Device [ADQU]
- Disk
- Material Document And Classification [MDCL]
- Qq-N-228 Fed Spec Single Material Response Seat
- Material Document And Classification [MDCL]
- Qq-N-228 Fed Spec Single Material Response Stem
- Material [MATT]
- Copper Alloy Body
- Material [MATT]
- Nickel Alloy Seat
- Material [MATT]
- Nickel Alloy Stem
- Material [MATT]
- Rubber Butadiene-Acrylonitrile Class Nbr Flow Control Device
- Material [MATT]
- Rubber Polymethylene-Perfluoroalkylene Class Fkm Packing
- Maximum Operating Pressure [CQGM]
- 400.0 Pounds Per Square Inch Single Response
- Maximum Operating Temp [AEHZ]
- 180.0 Deg Fahrenheit Single Response
- Media For Which Designed [MEDA]
- Water, Salt Single Response
- Nominal Outside Diameter [CWCD]
- 5.062 Inches 1St End
- Nominal Outside Diameter [CWCD]
- 4.500 Inches 2Nd End
- Nominal Thickness [CWCK]
- 0.438 Inches All Ends
- Nondefinitive Spec/Std Data [ZZZT]
- B Grade
- Material Document And Classification [MDCL]
- Astmb61 Assn Std Single Material Response Body
- Second Connection Face To Centerline Distance [CWCR]
- 3.750 Inches
- Valve Operation Method [AQLR]
- Automatic
- Valve Size [CCFG]
- 1.500 Inches
- Specification/Standard Data [ZZZK]
- 81349-Mil-V-24332 Government Specification
- Style Designator [STYL]
- Angle Flanged Ends
