4820-01-316-4569

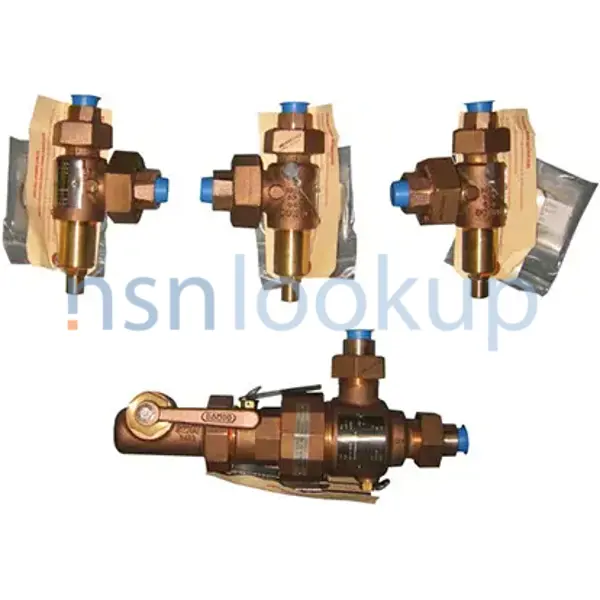

Safety Relief Valve
4820013164569 013164569 MIL-DTL-24332 R10AL2L212 AND D49918-12-BM1 R10AL2L212 D49918 PART R10AL2L212 MIL-V-24332 D49918
A valve designed to automatically release excessive pressures. It is actuated by static pressure upstream of the valve and is used as a safety valve or relief valve, and may be set to close at a predetermined pressure. It is not designed for regulation of continuously fluctuating loads. It may be inline or cartridge (manifold) design. Excludes VALVE (1), RELIEF, PRESSURE AND TEMPERATURE. View more Safety Relief Valve
November 2023
8
Marketplace 4820-01-316-4569
Request a Quotation from participating marketplace vendors
Related Documents 4820-01-316-4569 5+ Documents (More...)
MIL-V-24332 VALVE,SAFETY RELIEF 8 EA NS Request Quotation FedMall Updated Every 15 Minutes 4820-01-316
D49918 PART R10AL2L212 MIL-V https//www.nsnlookup.com /fsg-48/fsc-4820/us 4820-01-316-4569 Safety Relief
D49918 PART R10AL2L212 MIL-V https//www.nsnlookup.com /fsg-48/fsc-4820/us 4820-01-316-4569 Safety Relief
Valve 4820013164569 013164569 -12-BM1 R10AL2L212 D49918 PART R10AL2L212 MIL-V-24332 D49918 A valve designed
D49918 PART R10AL2L212 MIL-V-24332 D49918 https//www.nsnlookup.com /fsg-53/fsc-5315/fr 5315-14-455-7996
MIL-V-24332 D49918 A valve designed to automatically release ITEM 5 D49918 An item of Safety Relief
D49918 PART R10AL2L212 MIL-V-24332 D49918 A valve designed to automatically release https//www.nsnlookup.com
-12-BM1 R10AL2L212 D49918 PART R10AL2L212 MIL-V-24332 D49918 A valve designed to automatically release
Safety Relief Valve 4820011958424011958424 PART R10AL2L212 MIL-V-24332 D49918 A valve designed https
Safety Relief Valve 4820011958424011958424 PART R10AL2L212 MIL-V-24332 D49918 A valve designed https
Restrictions 4820-01-316-4569
4820-01-316-4569 is a Safety Relief Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4820-01-316-4569
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4820-01-316-4569
- US Navy (N9BC)
- Effective Date:
- 1 Jan 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 4820-01-316-4569
- Part Number
- Manufacturer
- Status
- D49918-12-BM1
- Manufacturer
- 34889 - Hunt Valve Company Inc (Active)
- Primary Buy
- Primary Buy
- MIL-DTL-24332
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- R10AL2L212
- 34889 - Hunt Valve Company Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- D49918 PART R10AL2L212
- 34889 - Hunt Valve Company Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-V-24332
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- R10AL2L212 AND
- 34889 - Hunt Valve Company Inc (Active)
- Advisory Reference
- Advisory Reference
- D49918
- 34889 - Hunt Valve Company Inc (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4820-01-316-4569
- Characteristic
- Specifications
- FIIG
- Specifications
- A046B0
- Adjustable Pressure Range [CQCY]
- +59.0/+72.0 Pounds Per Square Inch
- Bolt Hole Nominal Diameter [CWCQ]
- 0.562 Inches All Ends
- Bolt Hole Quantity [AECS]
- 8 All Ends
- Bonnet Type [ADSR]
- Inside Spring
- Bonnet Attachment Method [ADST]
- Union
- Bolt Circle Nominal Diameter [CWCT]
- 5.500 Inches All Ends
- Connection Type [AWLS]
- Flange All Ends
- Disk Loading Method [ADSU]
- Spring
- Furnished Items And Quantity [TMQY]
- 1 Lever
- Features Provided [CBBL]
- Pressure Tight Outlet Side
- First Connection Face To Centerline Distance [CWCL]
- 5.750 Inches
- Flange Face Design [CWDF]
- Plain All Ends
- Flange Shape [ARKN]
- Round With Holes All Ends
- Flow Control Device [ADQU]
- Disk
- Material [MATT]
- Copper Alloy 922 Body
- Material [MATT]
- Nickel Alloy Flow Control Device
- Material [MATT]
- Nickel Alloy Seat
- Material [MATT]
- Plastic Polytetrafluoroethylene Packing
- Material [MATT]
- Steel Corrosion Resisting Stem
- Maximum Operating Pressure [CQGM]
- 150.0 Pounds Per Square Inch Single Response
- Maximum Operating Temp [AEHZ]
- 150.0 Deg Fahrenheit Single Response
- Nominal Outside Diameter [CWCD]
- 6.625 Inches All Ends
- Nominal Thickness [CWCK]
- 0.500 Inches All Ends
- Nondefinitive Spec/Std Data [ZZZT]
- B Grade
- Second Connection Face To Centerline Distance [CWCR]
- 5.750 Inches
- Valve Operation Method [AQLR]
- Automatic Or Manual
- Valve Size [CCFG]
- 3.000 Inches
- Style Designator [STYL]
- Angle Flanged Ends
Weapon Systems (WSDC) 4820-01-316-4569
DLA Procurement Analysis 4820-01-316-4569
Management Data 4820-01-316-4569
Navy
- Cognizance:
- 3B
NATO Stock Numbers Related to 4820-01-316-4569
Freight Information 4820-01-316-4569
4820-01-316-4569 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 127220. A Sub NMFC of X. It has a NMFC Description of PRESSURE REG/RED/RELIEF VALVES NOI. 4820-01-316-4569 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64490 which rates the freight between FCL and LCL. 4820-01-316-4569 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4820-01-316-4569 is not classified as a special type of cargo when transported by water. 4820-01-316-4569 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4820-01-316-4569
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- Cushion, Anchor, Block or Brace as Required
- --
- Any Suitable Wood Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Procurement History 4820-01-316-4569 5 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7M023P7098
- 28 Sep 2023
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE7MC23V3062
- 16 Feb 2023
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE7M123V3712
- 03 Feb 2023
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE7M014M4196
- 03 Jun 2014
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7MC13MV194
- 13 Feb 2013
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 4820-01-316-4569 October 2021
