4820-01-272-7527
Plug Valve
4820012727527 012727527 MIL-V-24509 FRP-3 2IN FL0W FRP-3 2IN FLOW PATTERN 7
A valve designed to control the flow of a fluid by the rotation of a ported plug or plug sector within a suitable ported seat. The plug requires lubrication for ease of operation or contains a bonded composition seal(s). See also VALVE, SEATLESS and COCK, PLUG. View more Plug Valve
August 2023
3
Marketplace 4820-01-272-7527
Request a Quotation from participating marketplace vendors
Related Documents 4820-01-272-7527 5+ Documents (More...)
MIL-V-24509 VALVE,PLUG 3 EA NS Request Quotation FedMall Updated Every 15 Minutes 4820-01-272-7527 BUY
1-2IN MIL-V-24509 https//www.nsnlookup.com /fsg-48/fsc-4820 MIL-V -4820/us 4820-01-272-7527 Plug Valve
/fsg-48/fsc-4820 MIL-V -24509-30-111-5-L-P MIL-V-24509 https//www.nsnlookup.com /fsg-48/fsc-4820/us
4820-01-272-7527 Plug Valve 4820012727527 012727527 MIL-V-24509 VALVE,PLUG 3 EA NS Request Quotation
-30-111-5-L-P MIL-V-24509-30-III-L-P DD-4809 MIL-V-24509-30-III-L-P 81349 - Military -30-III-L-P DD-
MIL-V-24509-30-111-5-L-P MIL-V-24509-30-III-L-P DD-4809 24509 https//www.nsnlookup.com /fsg-48/fsc-4820
-30-111-5-L-P MIL-V-24509-30-III-L-P DD-4809 Plug Valve 4820014983942014983942 MIL-V-24509-30-111-5-
MIL-V-24509-30-111-5-L-P MIL-V-24509-30-III-L-P DD-4809 24509 https//www.nsnlookup.com /fsg-48/fsc-4820
-35-1-0-L-P M24509A-35-I-O-L-P TYPEI3 1-2IN MIL-V-24509 MIL-V-24509 VALVE,PLUG 3 EA NS Request Quotation
-30-III-L-P DD-4809 5133661 3132166-3 1-2IN M24509-35I0LP MIL-V MIL-V-24509- 30-111-5-L-P MIL-V-
Restrictions 4820-01-272-7527
4820-01-272-7527 is a Plug Valve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4820-01-272-7527
- US Navy (N9BC)
- Effective Date:
- 1 Jan 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 4820-01-272-7527
- Part Number
- Manufacturer
- Status
- FRP-3 2IN FLOW PATTERN 7
- Manufacturer
- 53424 - Cunico Corporation (Active)
- Primary Buy
- Primary Buy
- MIL-V-24509
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- FRP-3 2IN FL0W
- 53424 - Cunico Corporation (Active)
- Advisory Reference
- Advisory Reference
Datasheet 4820-01-272-7527
- Characteristic
- Specifications
- FIIG
- Specifications
- A046B0
- Bolt Hole Nominal Diameter [CWCQ]
- 0.500 Inches All Ends
- Bolt Hole Quantity [AECS]
- 6 All Ends
- Bolt Circle Nominal Diameter [CWCT]
- 4.750 Inches All Ends
- Connection Type [AWLS]
- Flange All Ends
- Flange Face Design [CWDF]
- Plain All Ends
- Flange Shape [ARKN]
- Round With Holes All Ends
- Flow Style [ADQS]

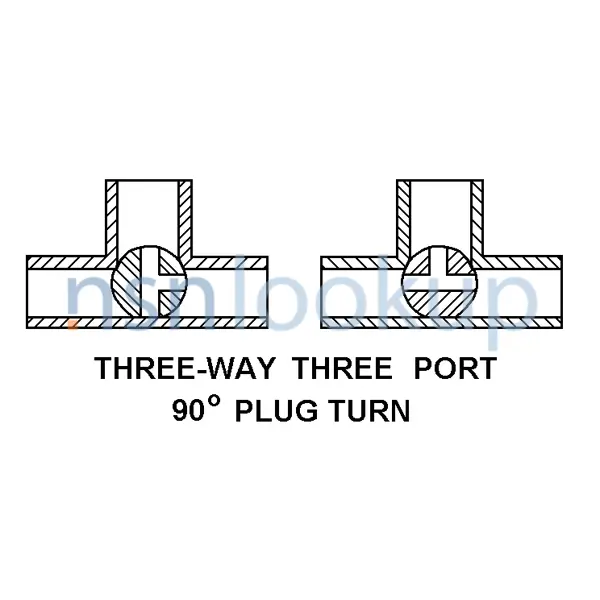

- Three-Way Three Port 90 Degree Plug Turn
- Material [MATT]
- Copper Alloy Body
- Nominal Outside Diameter [CWCD]
- 6.000 Inches All Ends
- Nominal Thickness [CWCK]
- 0.625 Inches All Ends
- Nondefinitive Spec/Std Data [ZZZT]
- 3 Type
- Valve Operation Method [AQLR]
- Manual
- Specification/Standard Data [ZZZK]
- 81349-Mil-V-24509 Government Specification
Weapon Systems (WSDC) 4820-01-272-7527
DLA Procurement Analysis 4820-01-272-7527
Management Data 4820-01-272-7527
Navy
- Cognizance:
- 3B
NATO Stock Numbers Related to 4820-01-272-7527
Freight Information 4820-01-272-7527
4820-01-272-7527 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051080. A Sub NMFC of Z. It has a NMFC Description of FAUCETS,BIBCOCKS,GATES VALVES. 4820-01-272-7527 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29300 which rates the freight between FCL and LCL. 4820-01-272-7527 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4820-01-272-7527 is not classified as a special type of cargo when transported by water. 4820-01-272-7527 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
